Installation (With Rear Discs)

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

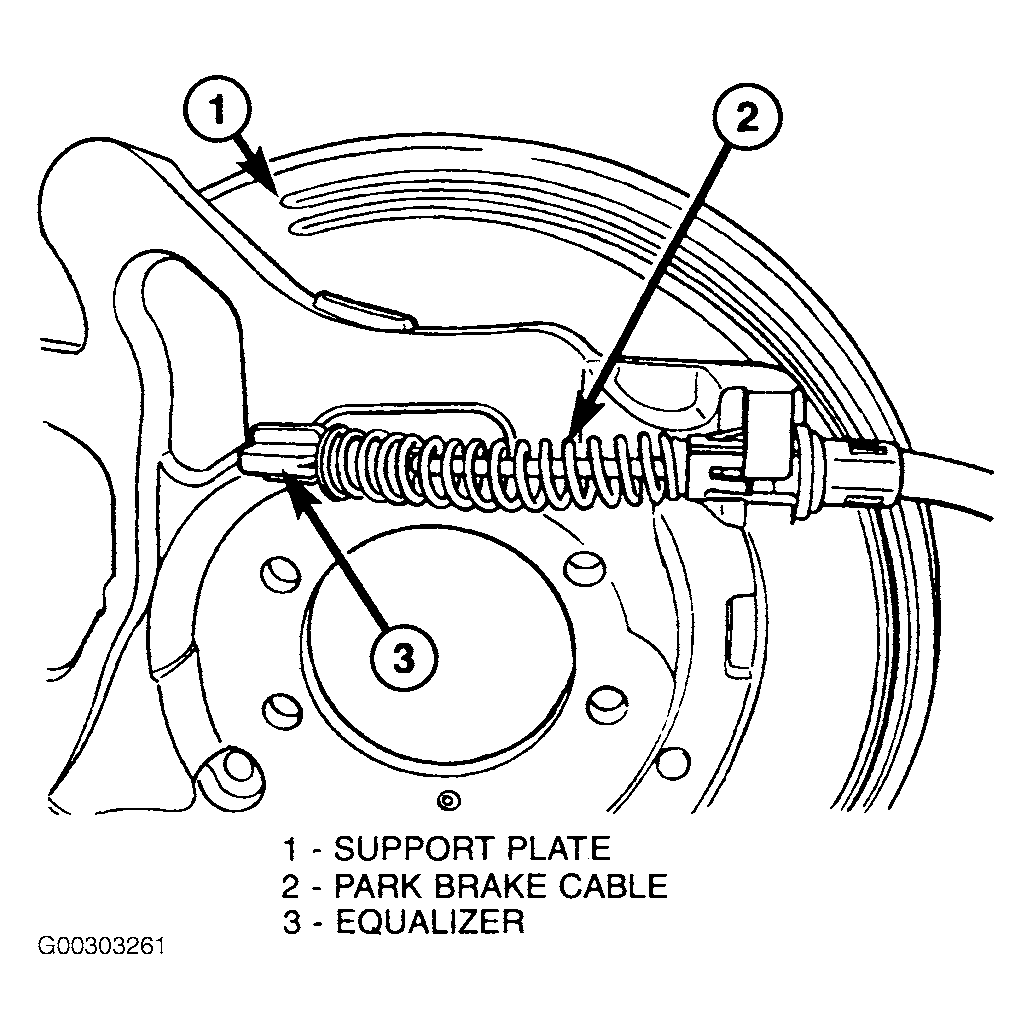

  1. Install the brake cable to the brake lever. See Figure.
  2. Install the cable to the axle bracket.
  3. Install the cable to the frame bracket.
  4. Install the cable to the equalizer.
  5. Install the cable to the front cable.
  6. Adjust the parking brake cable at the equalizer and using the adjuster nut. See PARKING BRAKE CABLES  under ADJUSTMENTS.
