Installation (Front)

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install brake shoes in caliper. See DISC BRAKE SHOES .
  2. Install caliper and shoes over rotor and into caliper adapter. Be sure ends of brake shoes are properly seated on slide surfaces of ledges.
    3. CAUTION: Start the slide pins by hand before tightening. DO NOT cross thread the pins.
  3. Install and tighten caliper slide pins. See TORQUE SPECIFICATIONS .
  4. Install caliper spring into one caliper hole and under the adapter. Pull down on the opposite end of the spring. With a screwdriver pry up on the spring to seat the spring into the other caliper hole. See Fig 1.
    5. CAUTION: Verify brake hose is not twisted or kinked before tightening fitting bolt.
  5. Install brake hose to caliper with new seal washers and tighten fitting bolt. See TORQUE SPECIFICATIONS .
  6. Bleed brake system. See BRAKE SYSTEM BLEEDING  under BLEEDING BRAKE SYSTEM.
  7. Install wheel and tire assemblies. See TORQUE SPECIFICATIONS .
  8. Remove supports and lower vehicle.
  9. Pump brake pedal to seal brake shoes.
  10. Fill brake fluid reservoir. See CHECKING & FILLING  under BRAKE FLUID.
  11. Verify firm pedal before moving vehicle.

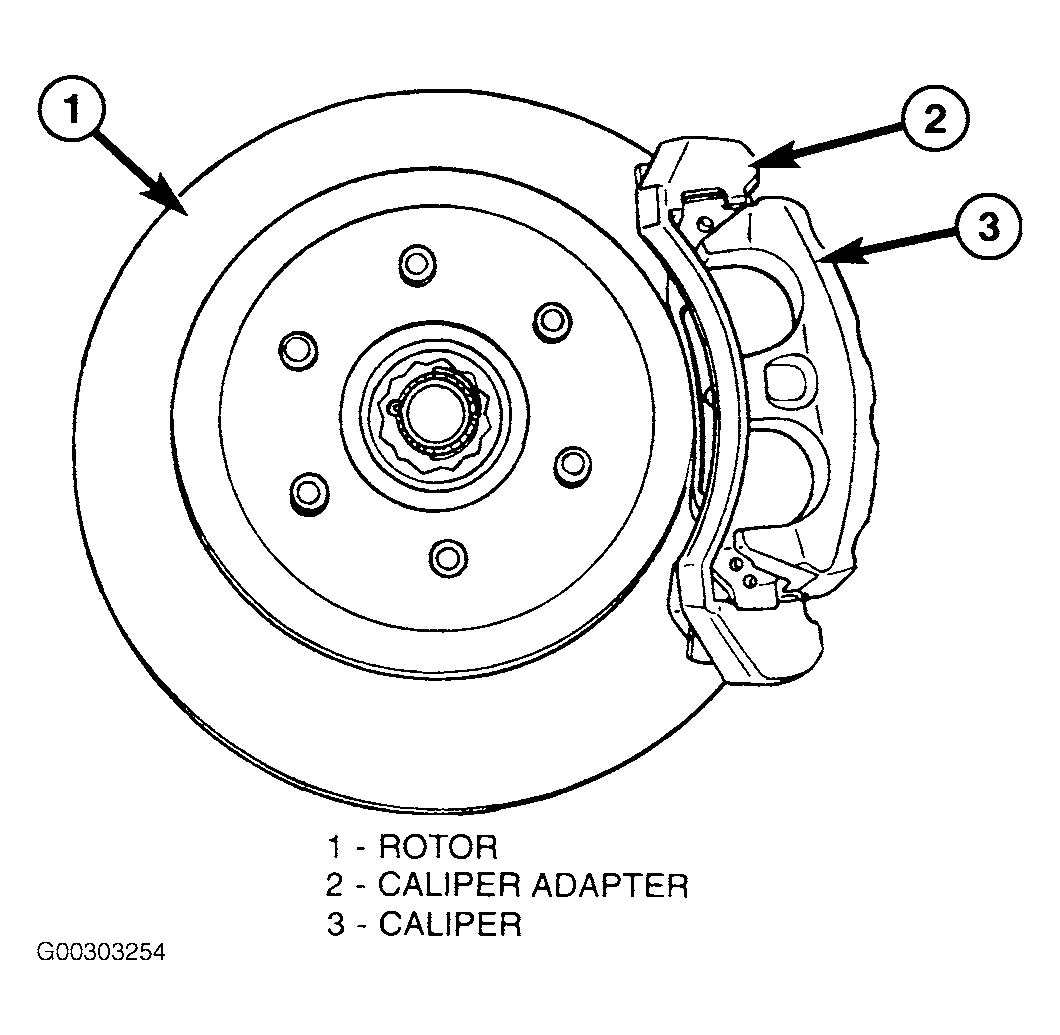

Fig 1: Installing Front Caliper
G00303254Courtesy of CHRYSLER CORP.
