Checking & Filling

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Always clean the master cylinder reservoir and caps before checking fluid. If not cleaned, dirt could enter the fluid. The fluid fill level is indicated on the side of the master cylinder reservoir. The correct fluid level is to the FULL indicator on the side of the reservoir. If necessary, add fluid to the proper level. See Fig 1.

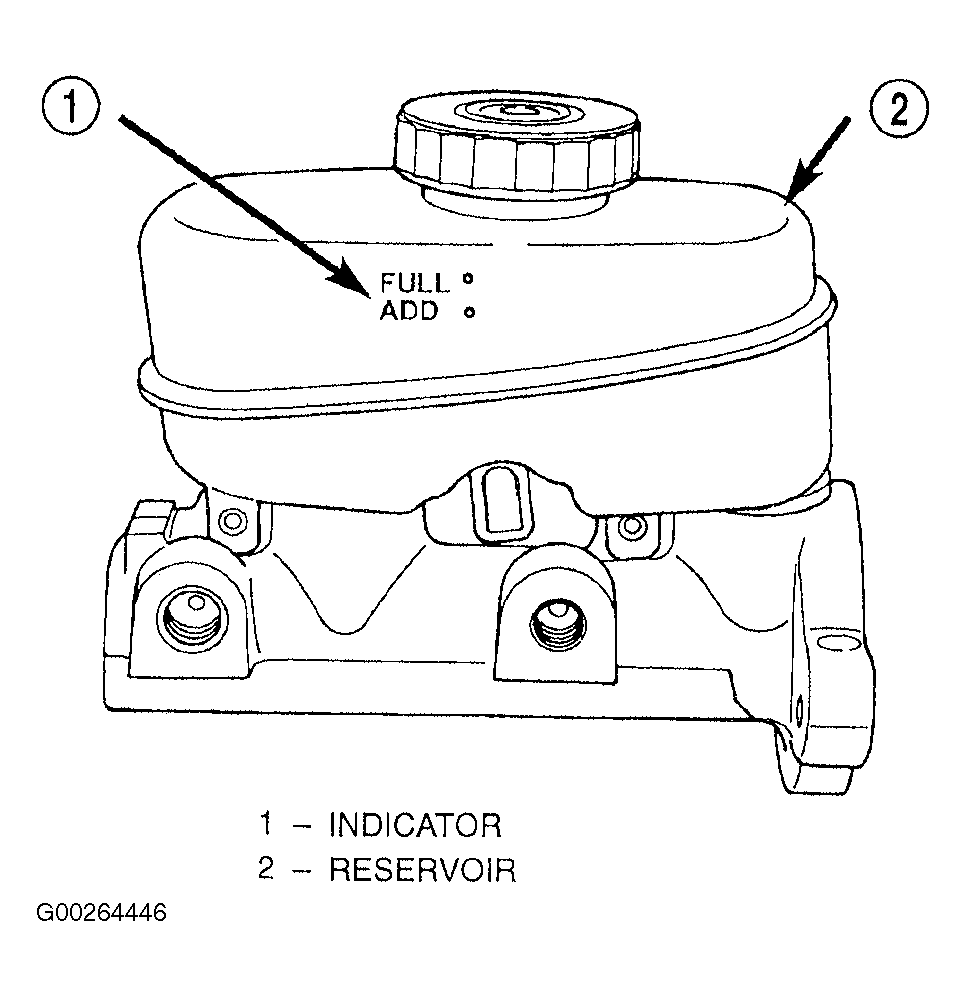

Fig 1: Checking Brake Fluid Level (Typical)
G00264446Courtesy of CHRYSLER CORP.
