Connector Identification

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component locations, see COMPONENT LOCATIONS .

Fig 1: Identifying A/C Compressor Clutch Harness Connector Terminals

G00228254

Courtesy of CHRYSLER CORP.

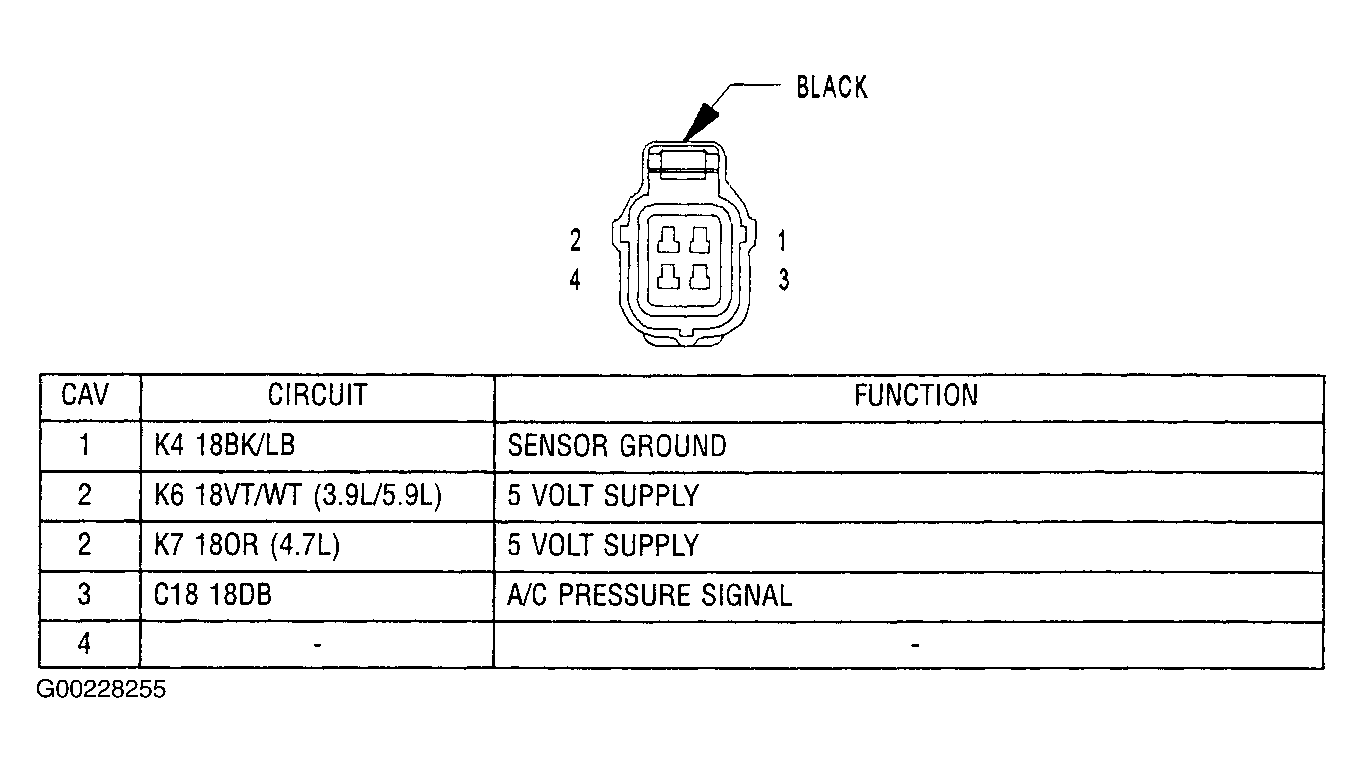

Fig 2: Identifying A/C Pressure Transducer Harness Connector Terminals

G00228255

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Ambient Temperature Sensor Harness Connector Terminals

G00228256

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Battery Temperature Sensor Harness Connector Terminals

G00228257

Courtesy of CHRYSLER CORP.

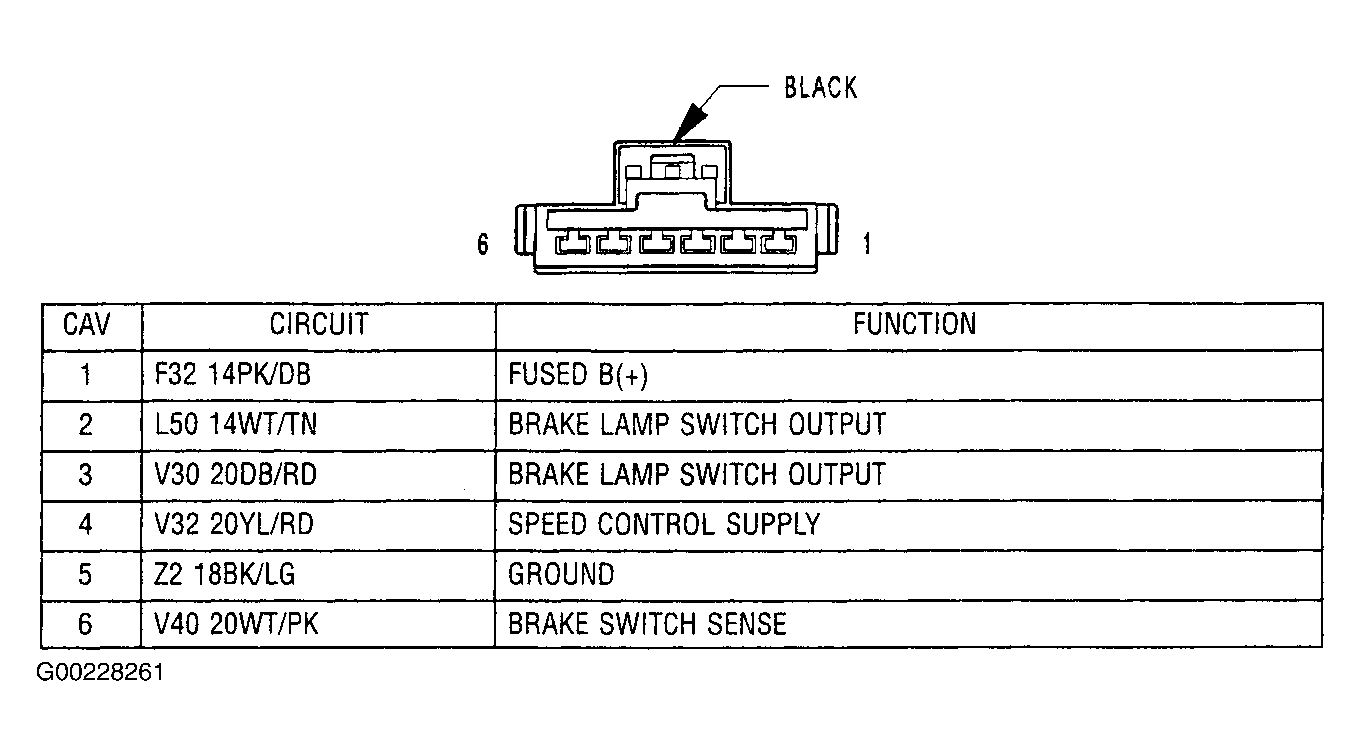

Fig 5: Identifying Brake Lamp Switch Harness Connector Terminals

G00228261

Courtesy of CHRYSLER CORP.

Fig 6: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector Terminals

G00228258

Courtesy of CHRYSLER CORP.

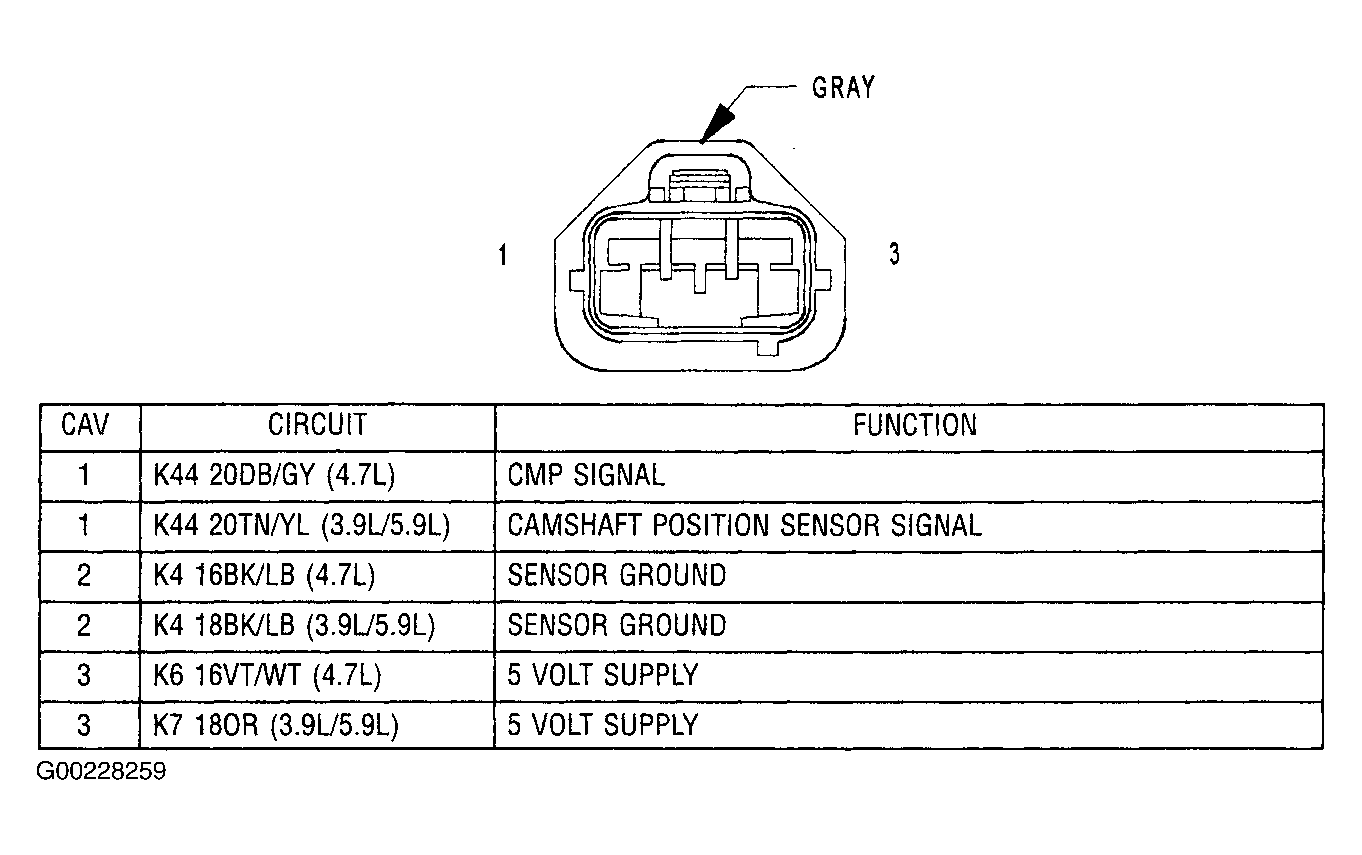

Fig 7: Identifying Camshaft Position Sensor Harness Connector Terminals

G00228259

Courtesy of CHRYSLER CORP.

Fig 8: Identifying Capacitor Harness Connector Terminals

G00228260

Courtesy of CHRYSLER CORP.

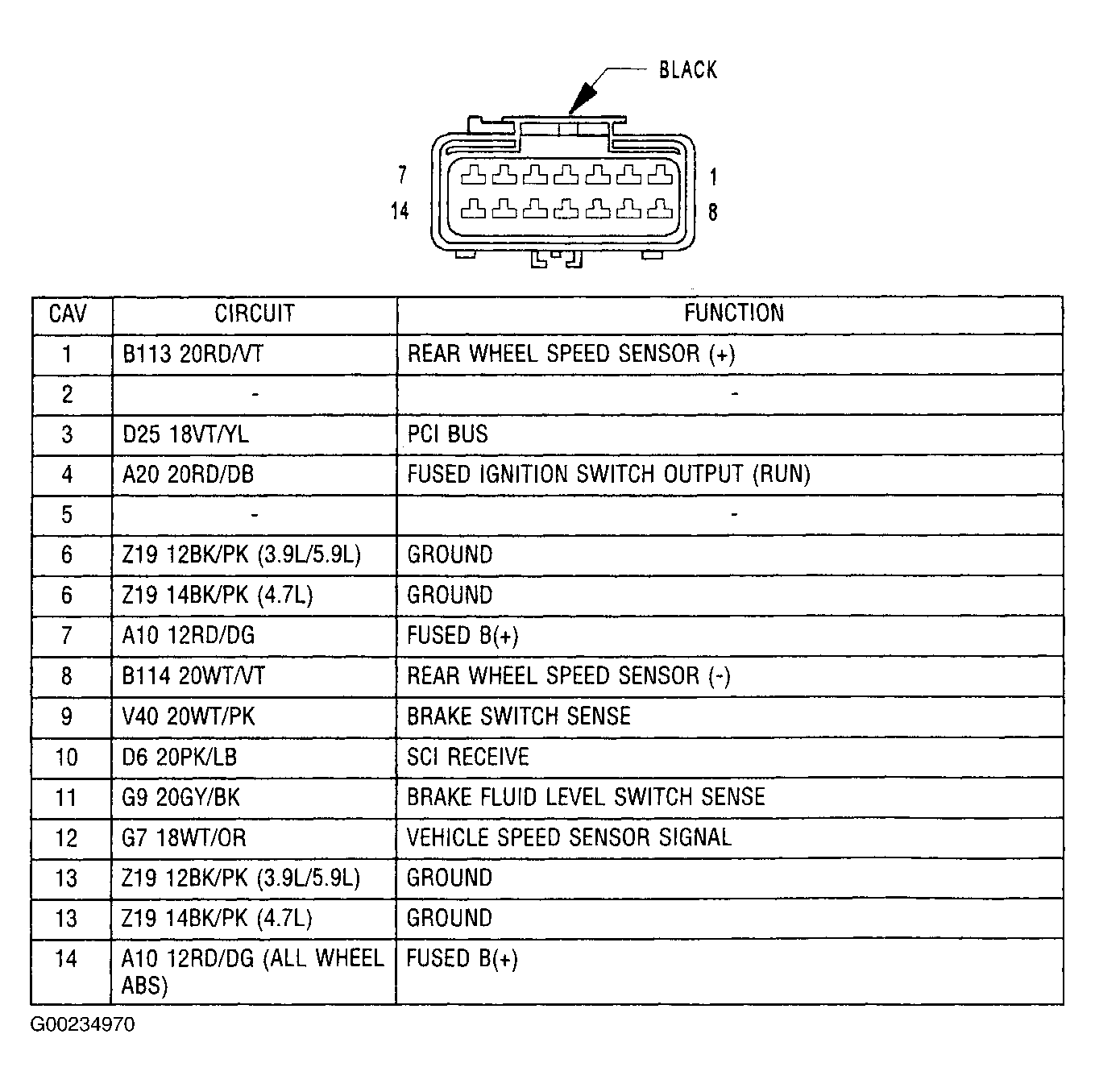

Fig 9: Identifying Controller Anti-Lock Brake C1 Harness Connector Terminals

G00234970

Courtesy of CHRYSLER CORP.

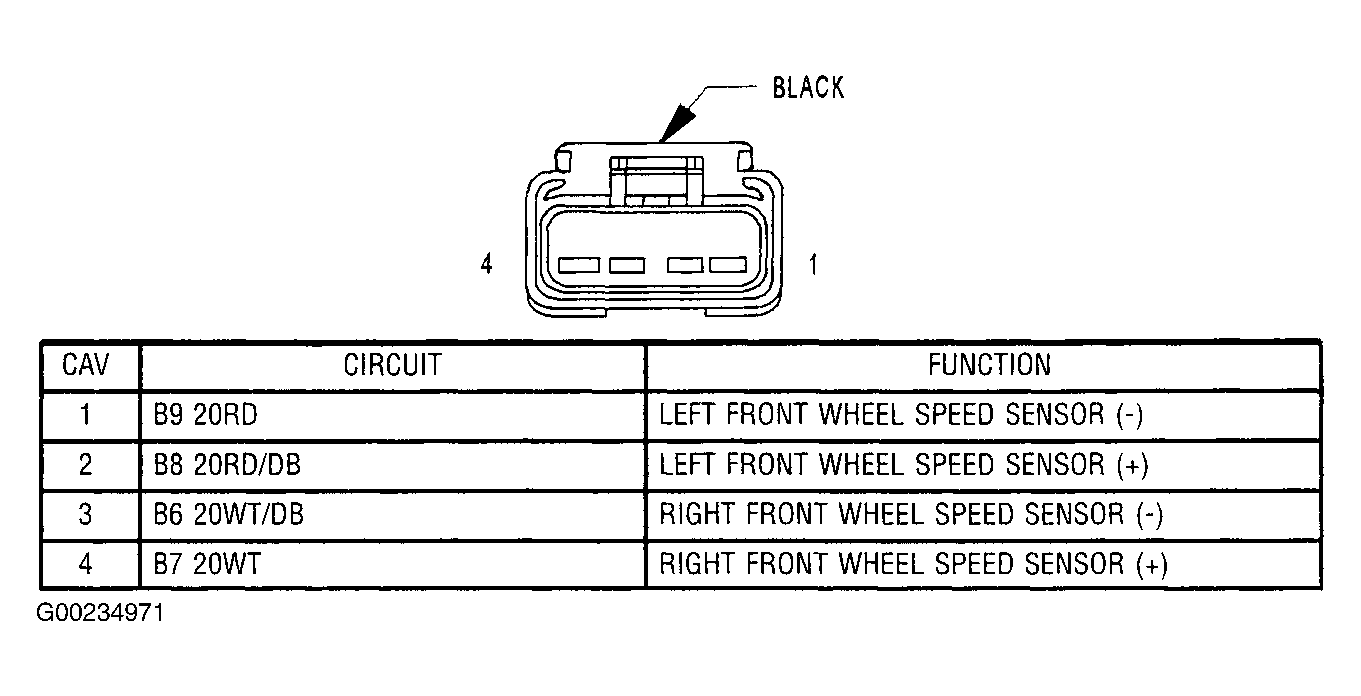

Fig 10: Identifying Controller Anti-Lock Brake C2 Harness Connector Terminals

G00234971

Courtesy of CHRYSLER CORP.

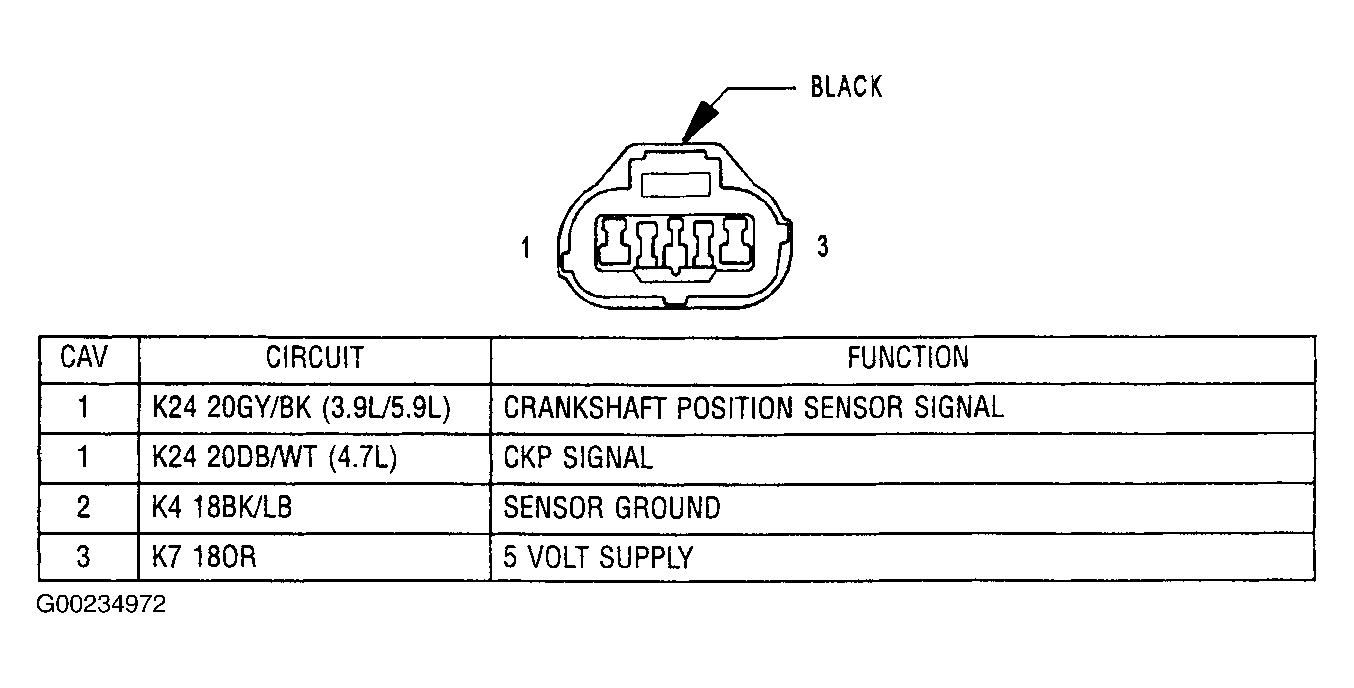

Fig 11: Identifying Crankshaft Position Sensor Harness Connector Terminals

G00234972

Courtesy of CHRYSLER CORP.

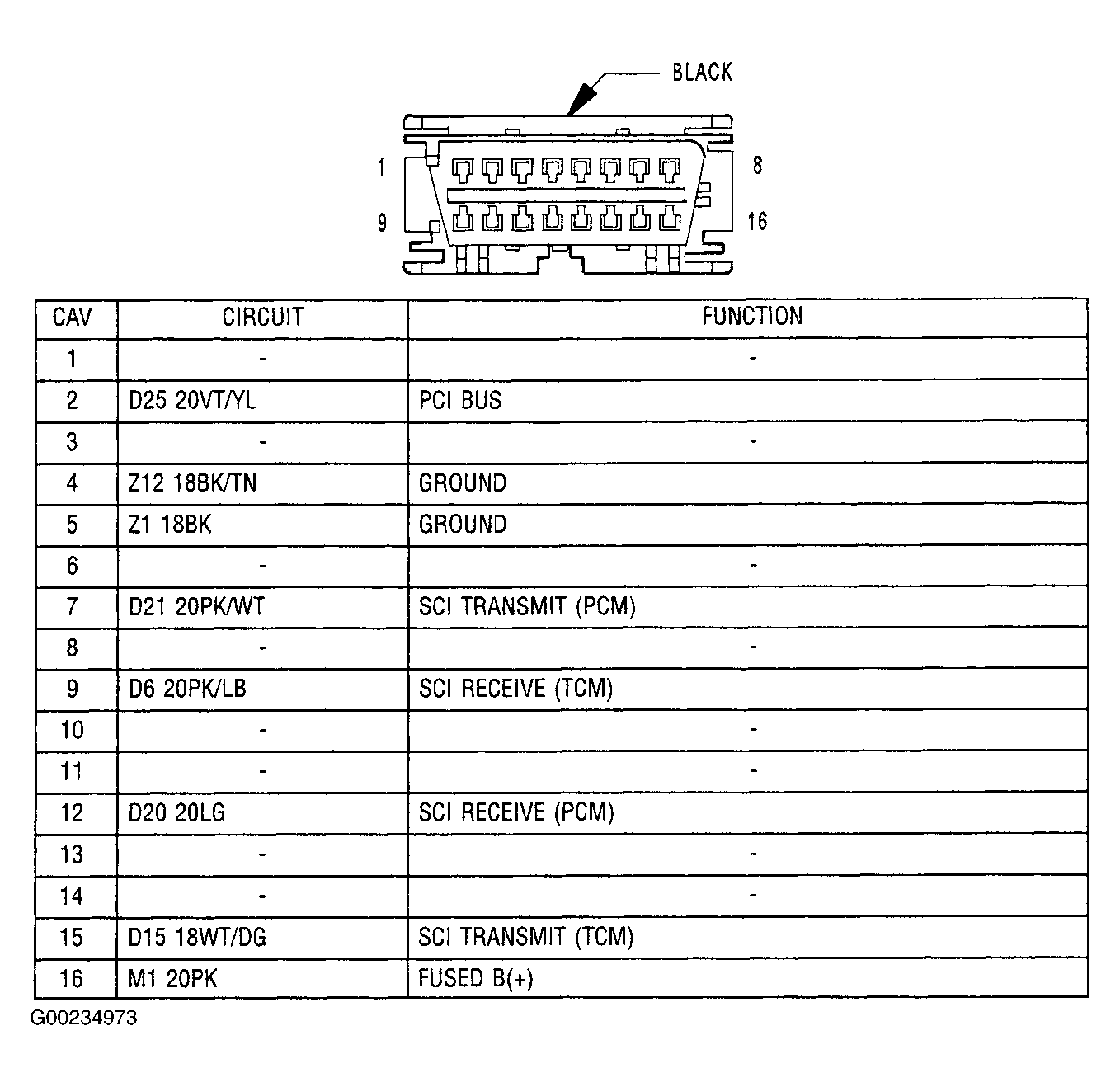

Fig 12: Identifying Data Link Connector Harness Connector Terminals

G00234973

Courtesy of CHRYSLER CORP.

Fig 13: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals

G00235071

Courtesy of CHRYSLER CORP.

Fig 14: Identifying Engine Oil Pressure Switch Harness Connector Terminals

G00235079

Courtesy of CHRYSLER CORP.

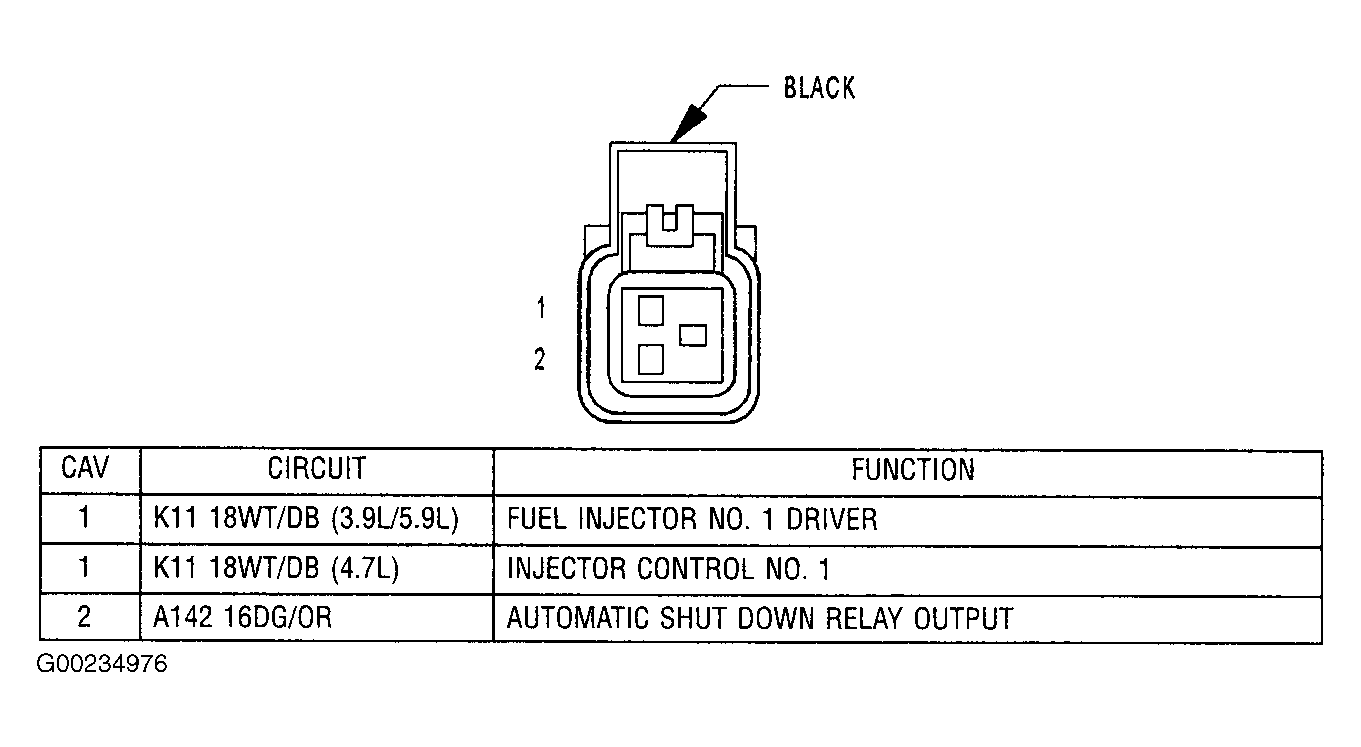

Fig 15: Identifying Fuel Injector No. 1 Harness Connector Terminals

G00234976

Courtesy of CHRYSLER CORP.

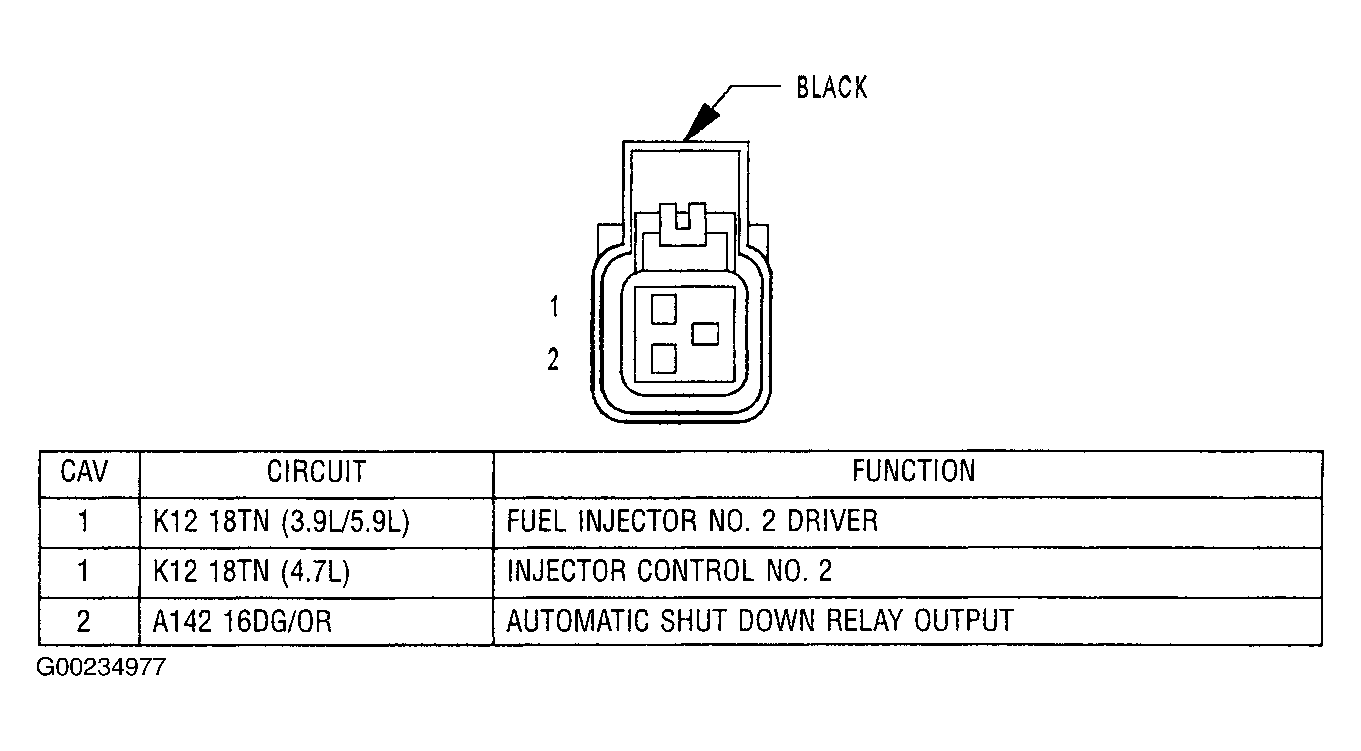

Fig 16: Identifying Fuel Injector No. 2 Harness Connector Terminals

G00234977

Courtesy of CHRYSLER CORP.

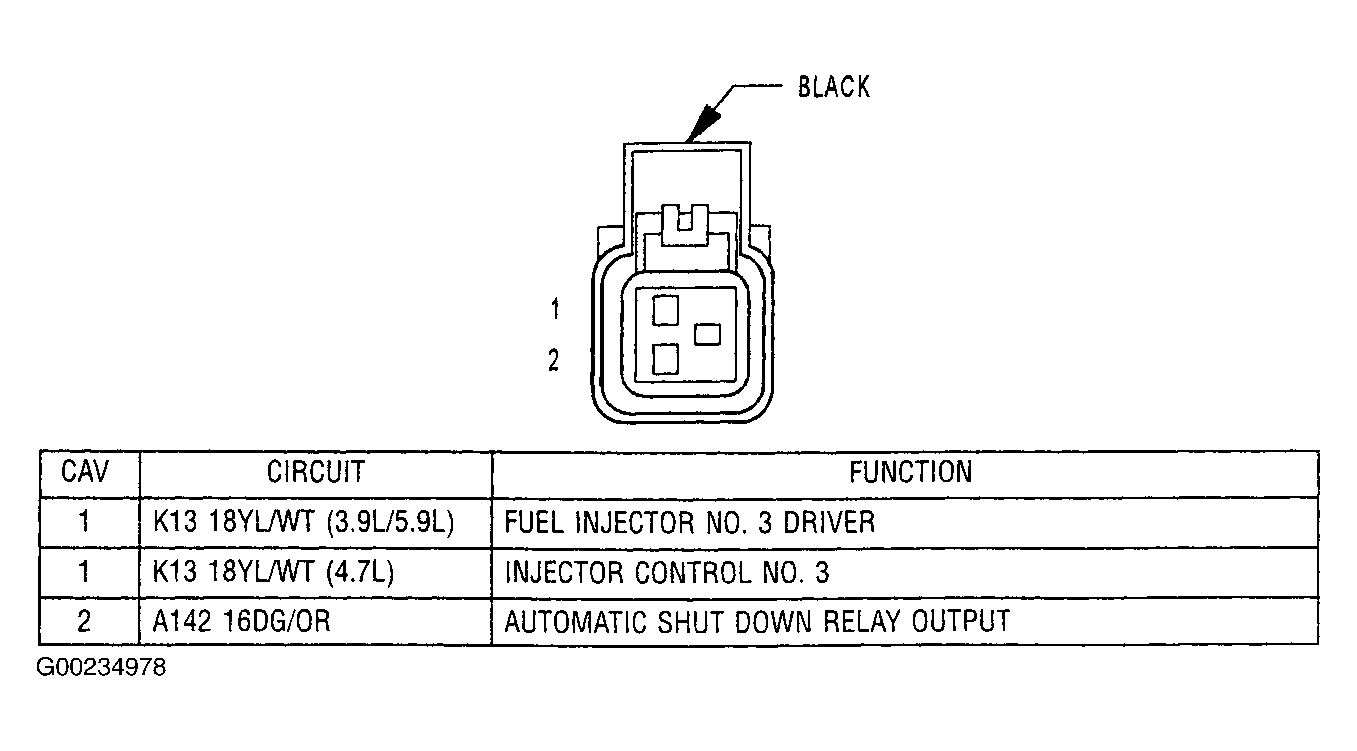

Fig 17: Identifying Fuel Injector No. 3 Harness Connector Terminals

G00234978

Courtesy of CHRYSLER CORP.

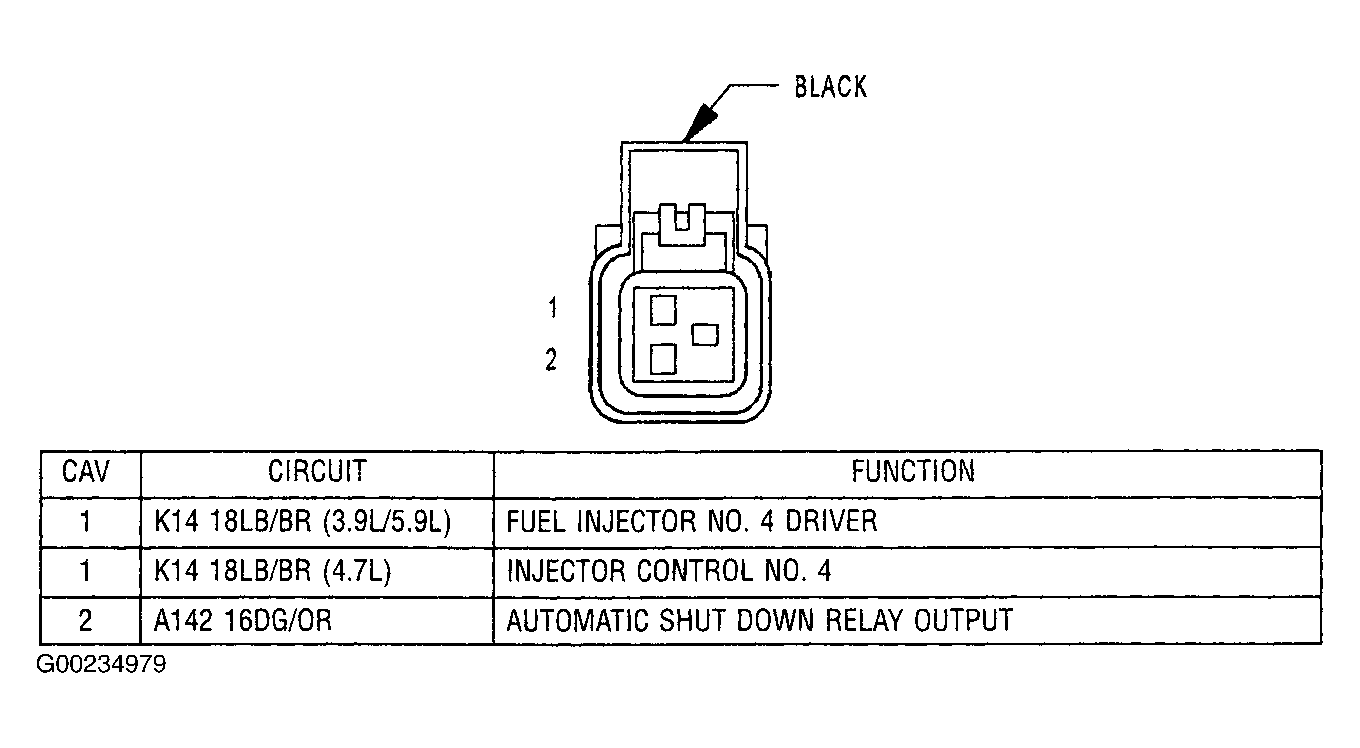

Fig 18: Identifying Fuel Injector No. 4 Harness Connector Terminals

G00234979

Courtesy of CHRYSLER CORP.

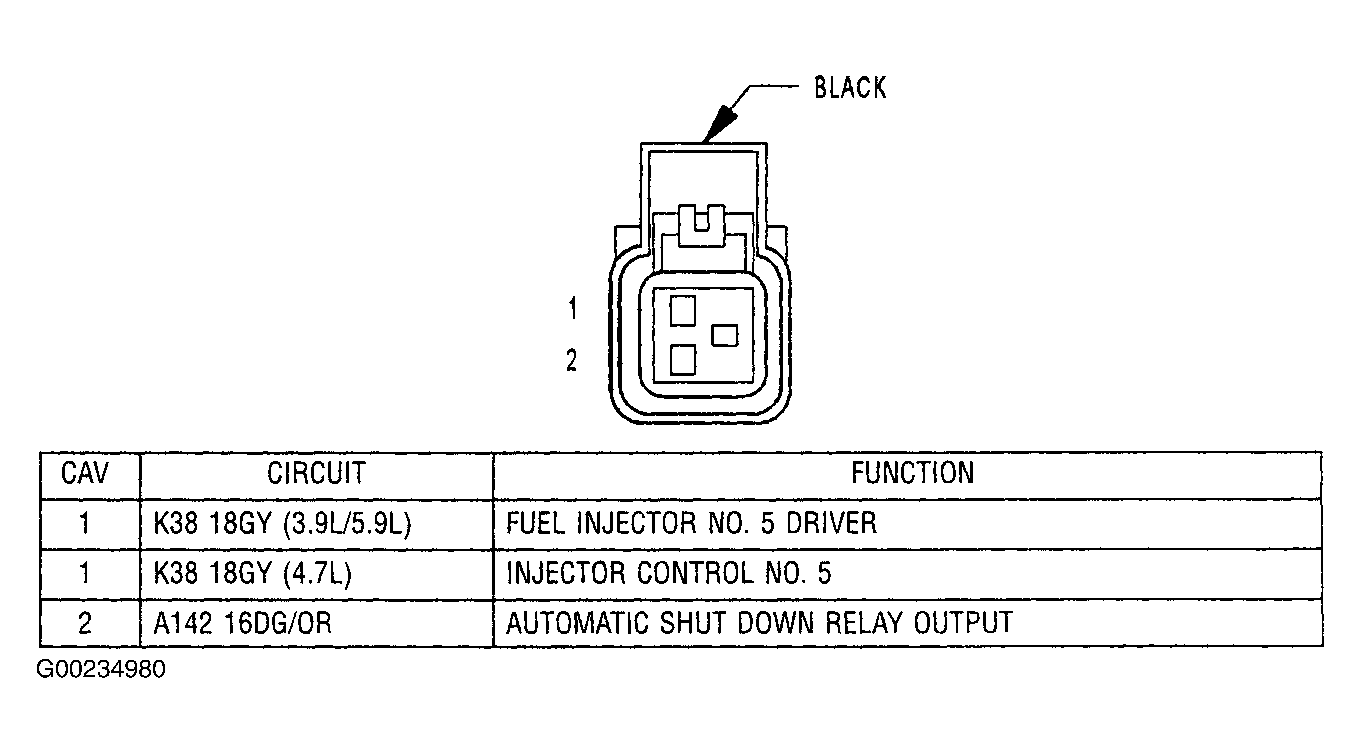

Fig 19: Identifying Fuel Injector No. 5 Harness Connector Terminals

G00234980

Courtesy of CHRYSLER CORP.

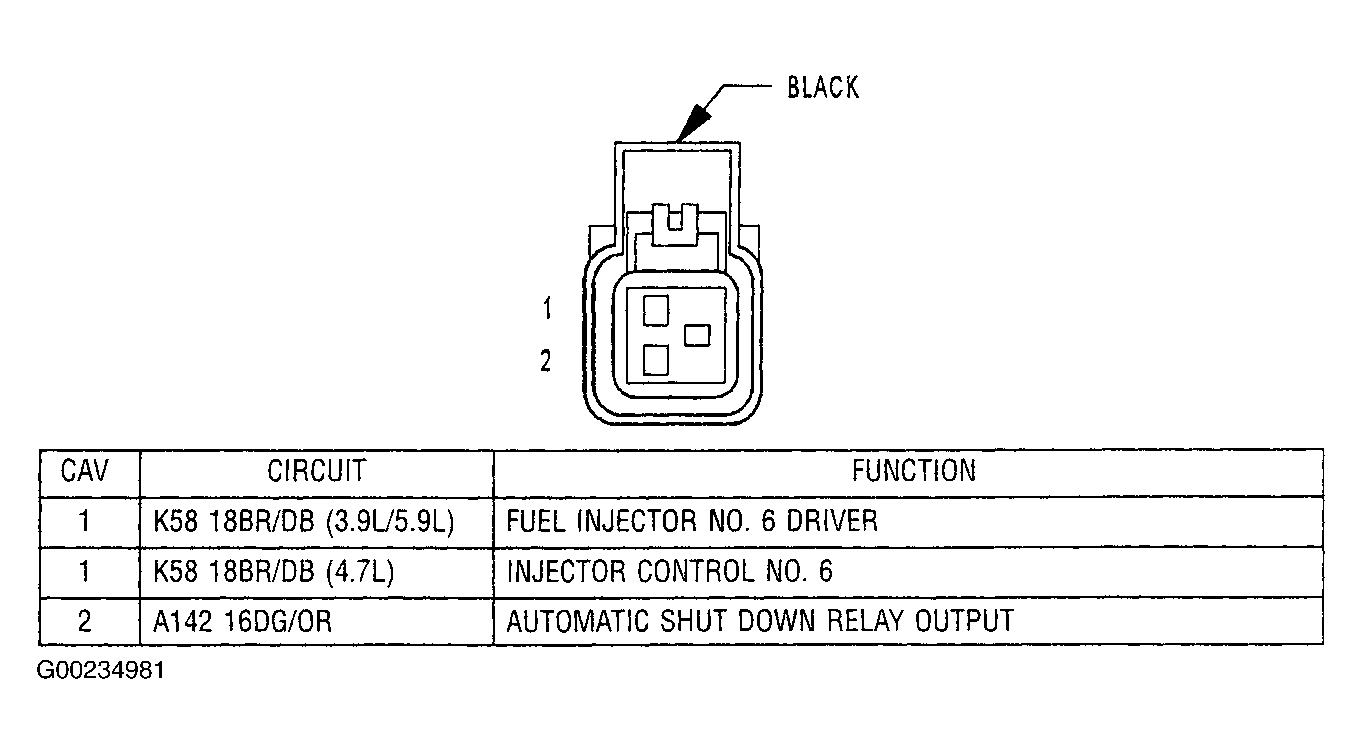

Fig 20: Identifying Fuel Injector No. 6 Harness Connector Terminals

G00234981

Courtesy of CHRYSLER CORP.

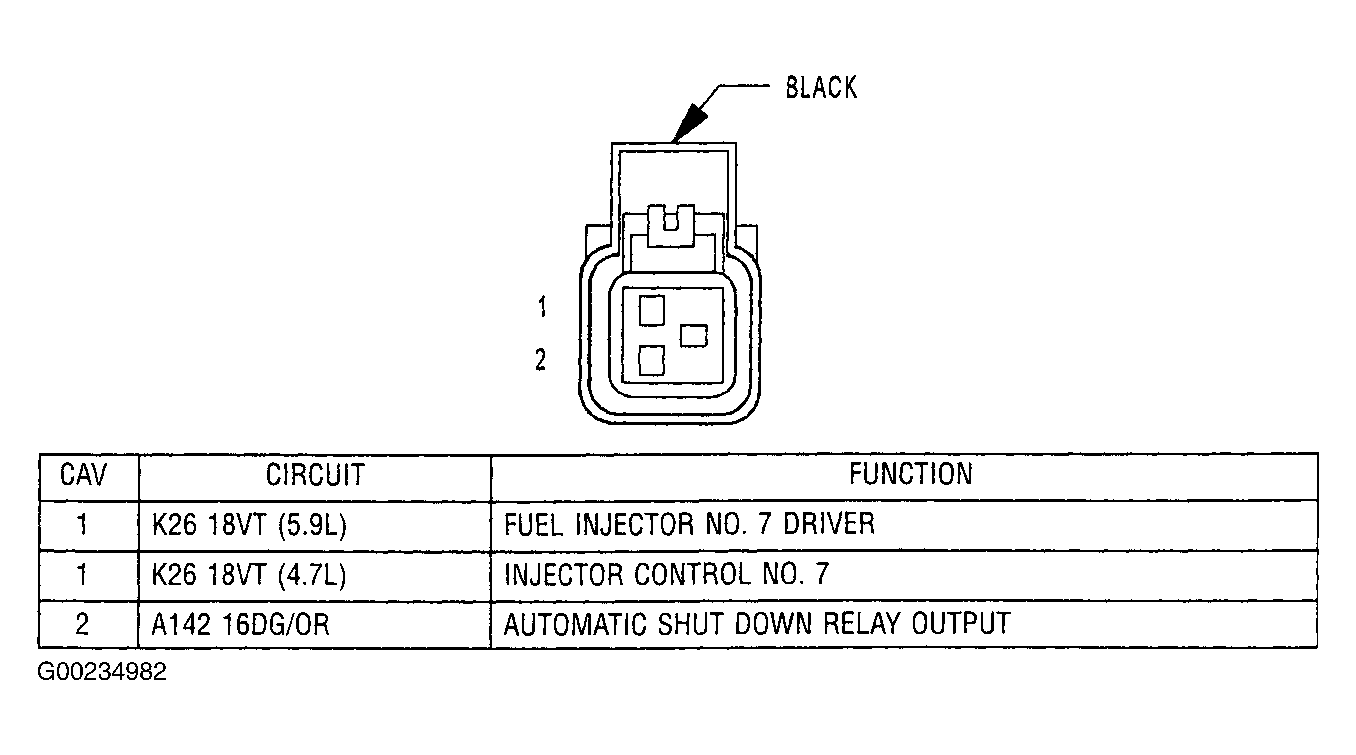

Fig 21: Identifying Fuel Injector No. 7 Harness Connector Terminals

G00234982

Courtesy of CHRYSLER CORP.

Fig 22: Identifying Fuel Injector No. 8 Harness Connector Terminals

G00234984

Courtesy of CHRYSLER CORP.

Fig 23: Identifying Fuel Pump Module Harness Connector Terminals

G00234983

Courtesy of CHRYSLER CORP.

Fig 24: Identifying Generator Harness Connector Terminals

G00235056

Courtesy of CHRYSLER CORP.

Fig 25: Identifying Idle Air Control Motor Harness Connector Terminals

G00096029

Courtesy of DAIMLERCHRYSLER

Fig 26: Identifying Ignition Coil Harness Connector Terminals

G00235057

Courtesy of CHRYSLER CORP.

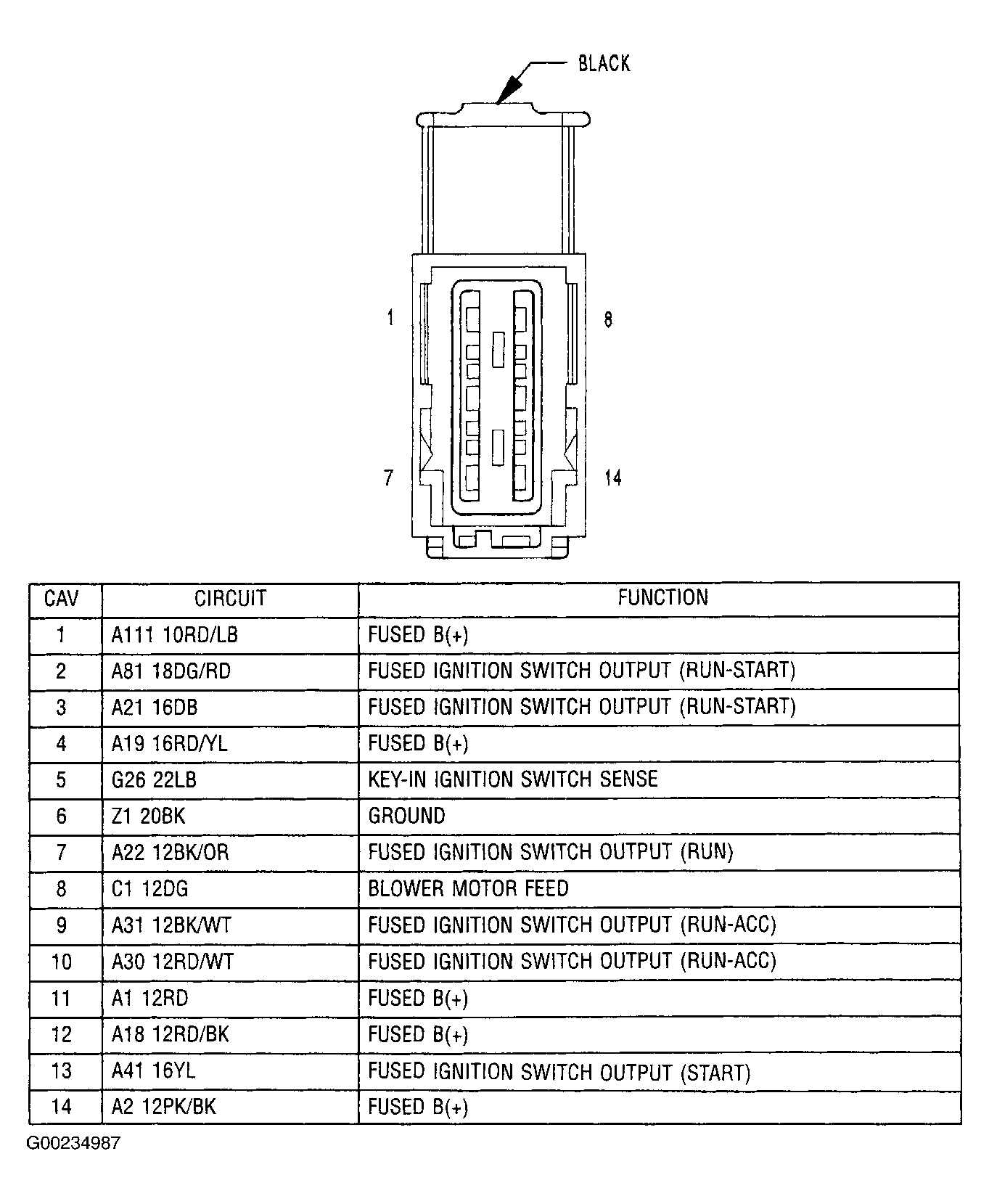

Fig 27: Identifying Ignition Switch Harness Connector Terminals

G00234987

Courtesy of CHRYSLER CORP.

Fig 28: Identifying Intake Air Temperature Sensor Harness Connector Terminals

G00234989

Courtesy of CHRYSLER CORP.

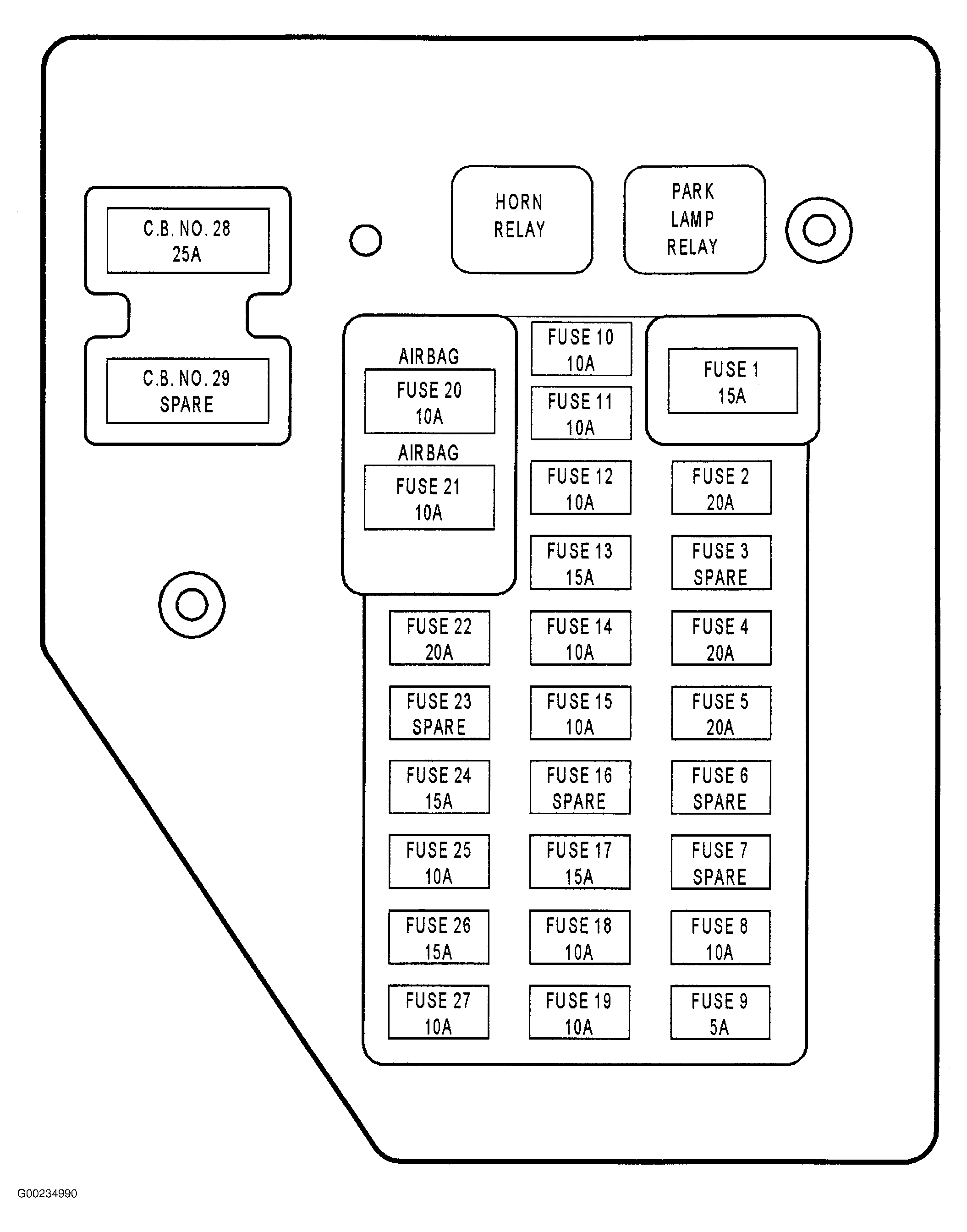

Fig 29: Identifying Junction Block Components & Circuits (1 Of 2)

G00234990

Courtesy of CHRYSLER CORP.

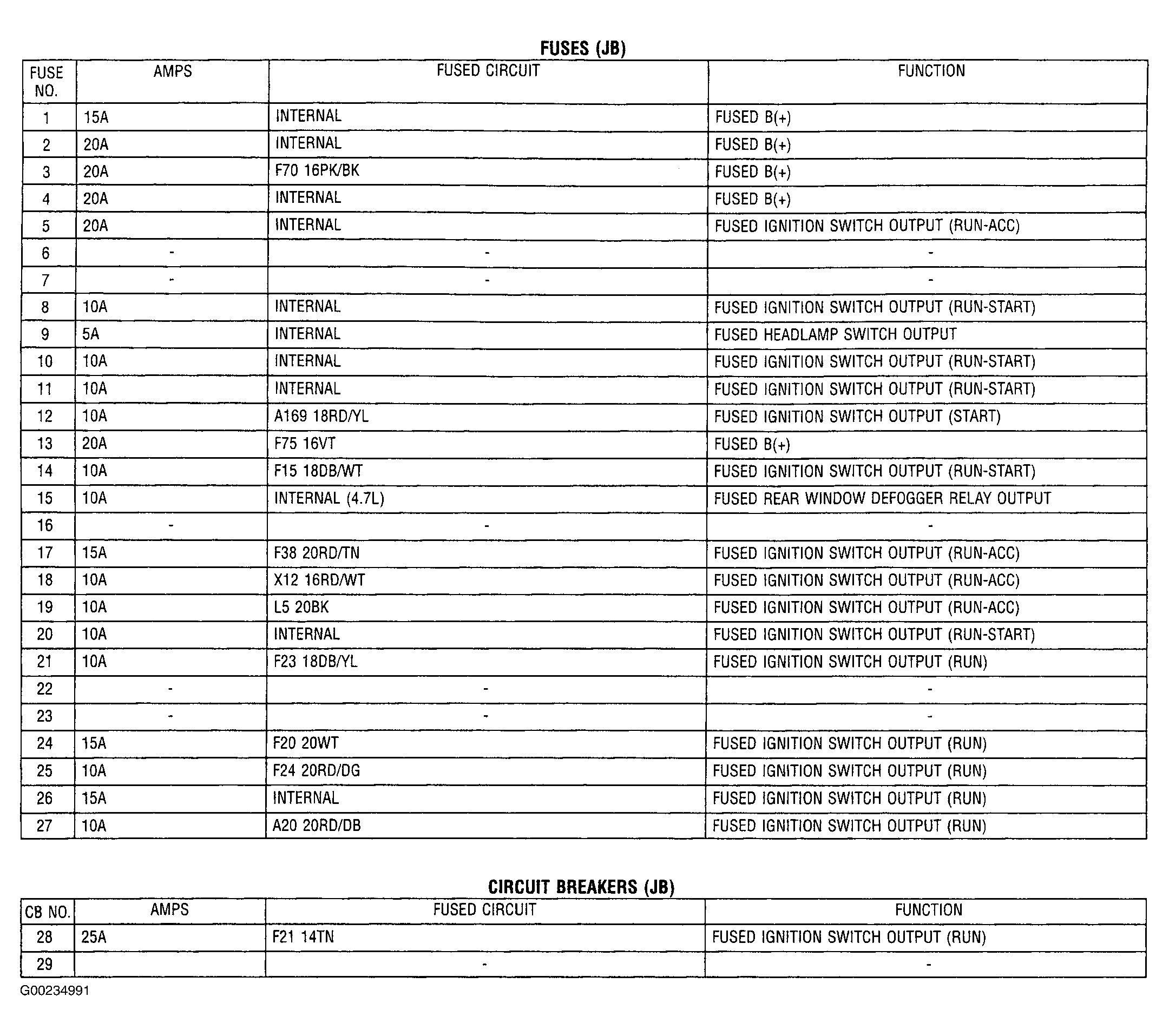

Fig 30: Identifying Junction Block Components & Circuits (2 Of 2)

G00234991

Courtesy of CHRYSLER CORP.

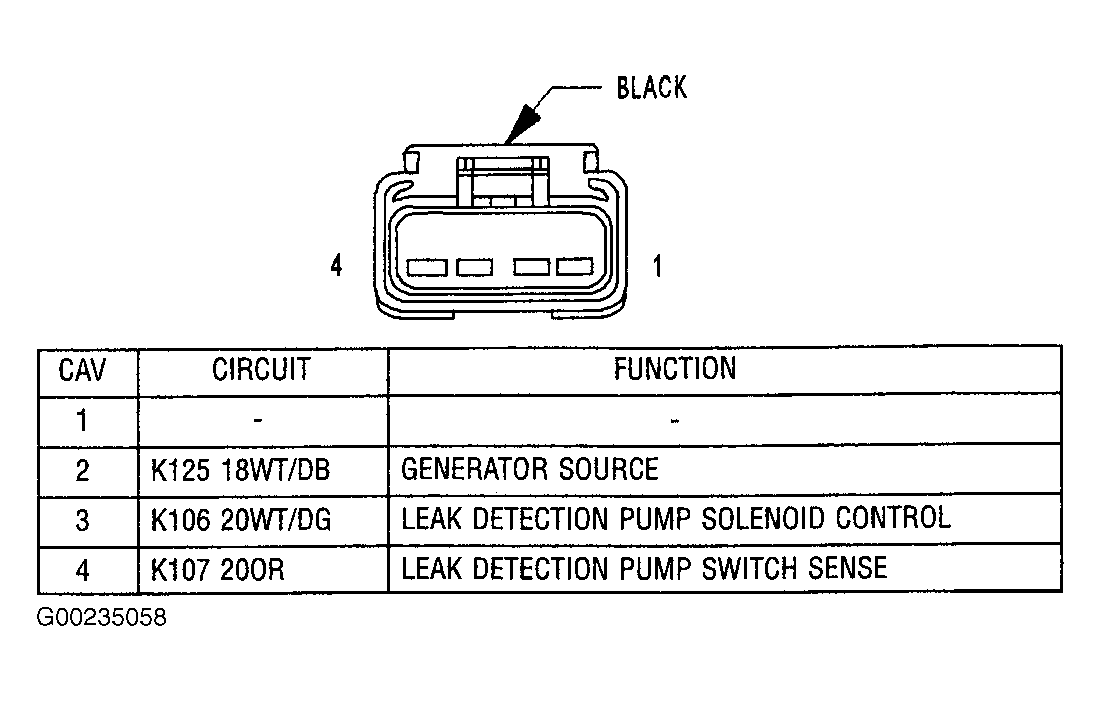

Fig 31: Identifying Leak Detection Pump Harness Connector Terminals

G00235058

Courtesy of CHRYSLER CORP.

Fig 32: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals

G00235072

Courtesy of CHRYSLER CORP.

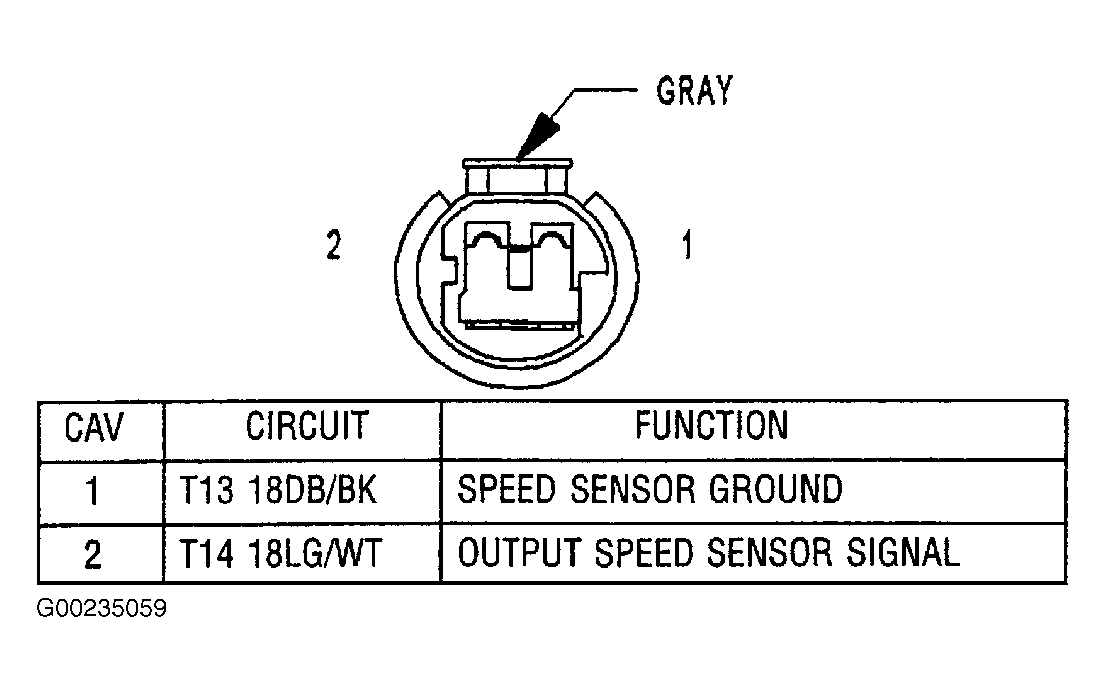

Fig 33: Identifying Output Speed Sensor Harness Connector Terminals

G00235059

Courtesy of CHRYSLER CORP.

Fig 34: Identifying Overdrive Switch Harness Connector Terminals

G00234997

Courtesy of CHRYSLER CORP.

Fig 35: Identifying Power Distribution Center Components & Circuits (1 Of 3)

G00096045

Courtesy of DAIMLERCHRYSLER

Fig 36: Identifying Power Distribution Center Components & Circuits (2 Of 3)

G00235004

Courtesy of CHRYSLER CORP.

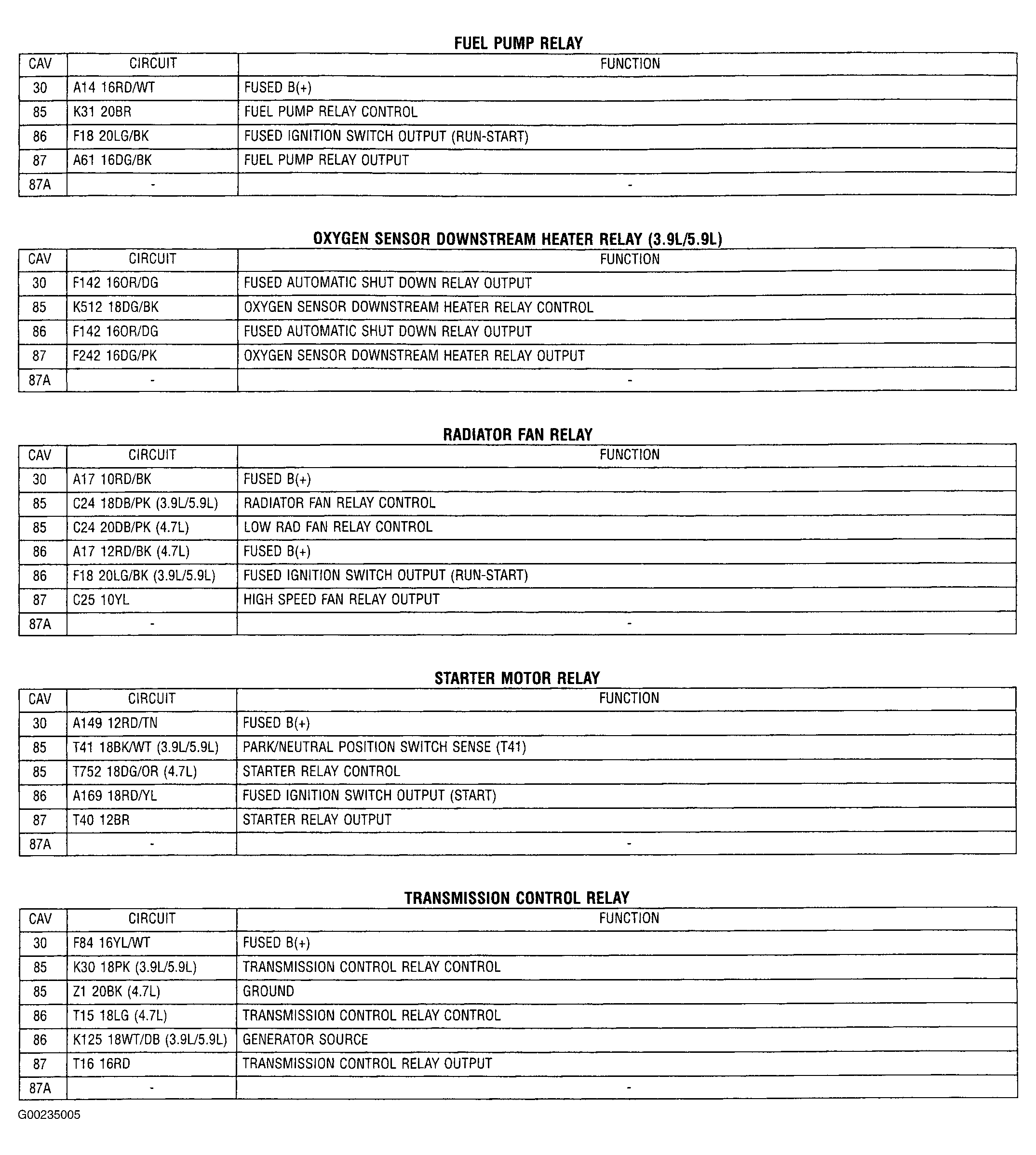

Fig 37: Identifying Power Distribution Center Components & Circuits (3 Of 3)

G00235005

Courtesy of CHRYSLER CORP.

Fig 38: Identifying Power Steering Pressure Switch Harness Connector Terminals

G00235006

Courtesy of CHRYSLER CORP.

Fig 39: Identifying Powertrain Control Module C1 (JTEC) Harness Connector Terminals

G00235060

Courtesy of CHRYSLER CORP.

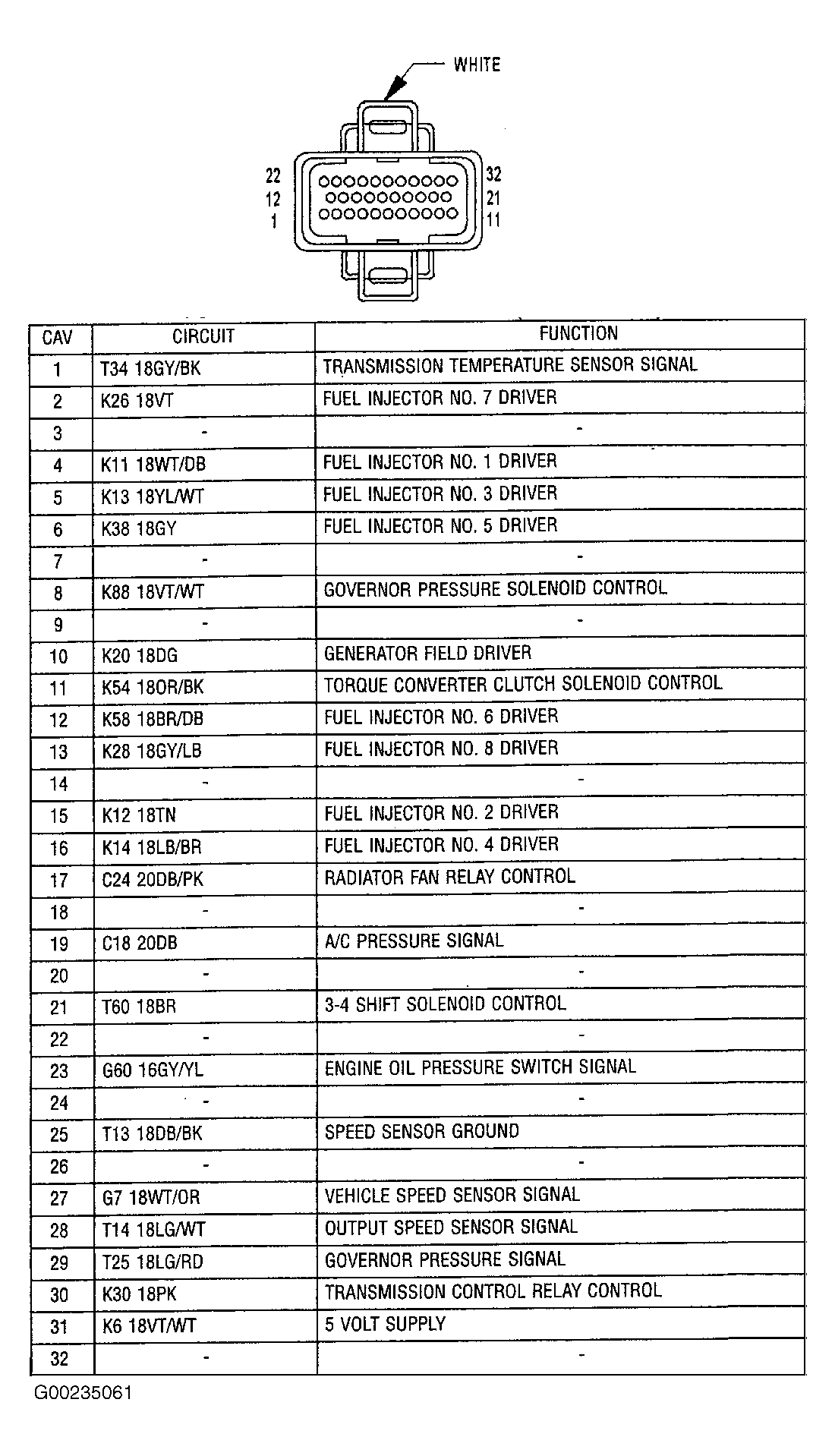

Fig 40: Identifying Powertrain Control Module C2 (JTEC) Harness Connector Terminals

G00235061

Courtesy of CHRYSLER CORP.

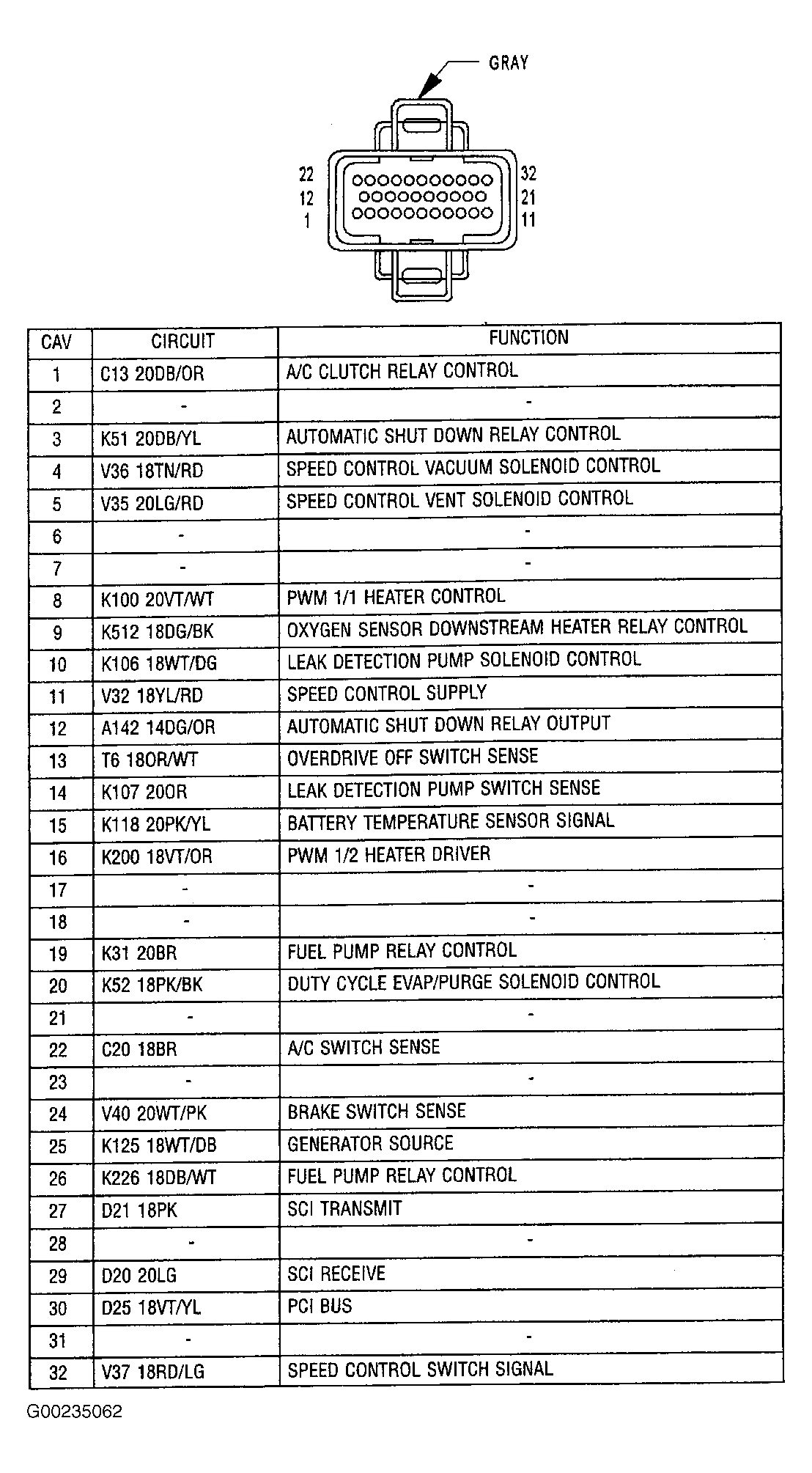

Fig 41: Identifying Powertrain Control Module C3 (JTEC) Harness Connector Terminals

G00235062

Courtesy of CHRYSLER CORP.

Fig 42: Identifying Proportional Purge Solenoid Harness Connector Terminals

G00235063

Courtesy of CHRYSLER CORP.

Fig 43: Identifying Radiator Fan Motor Harness Connector Terminals

G00235012

Courtesy of CHRYSLER CORP.

Fig 44: Identifying Rear Wheel Speed Sensor Harness Connector Terminals

G00235013

Courtesy of CHRYSLER CORP.

Fig 45: Identifying Sentry Key Immobilizer Module Harness Connector Terminals

G00096055

Courtesy of DAIMLERCHRYSLER

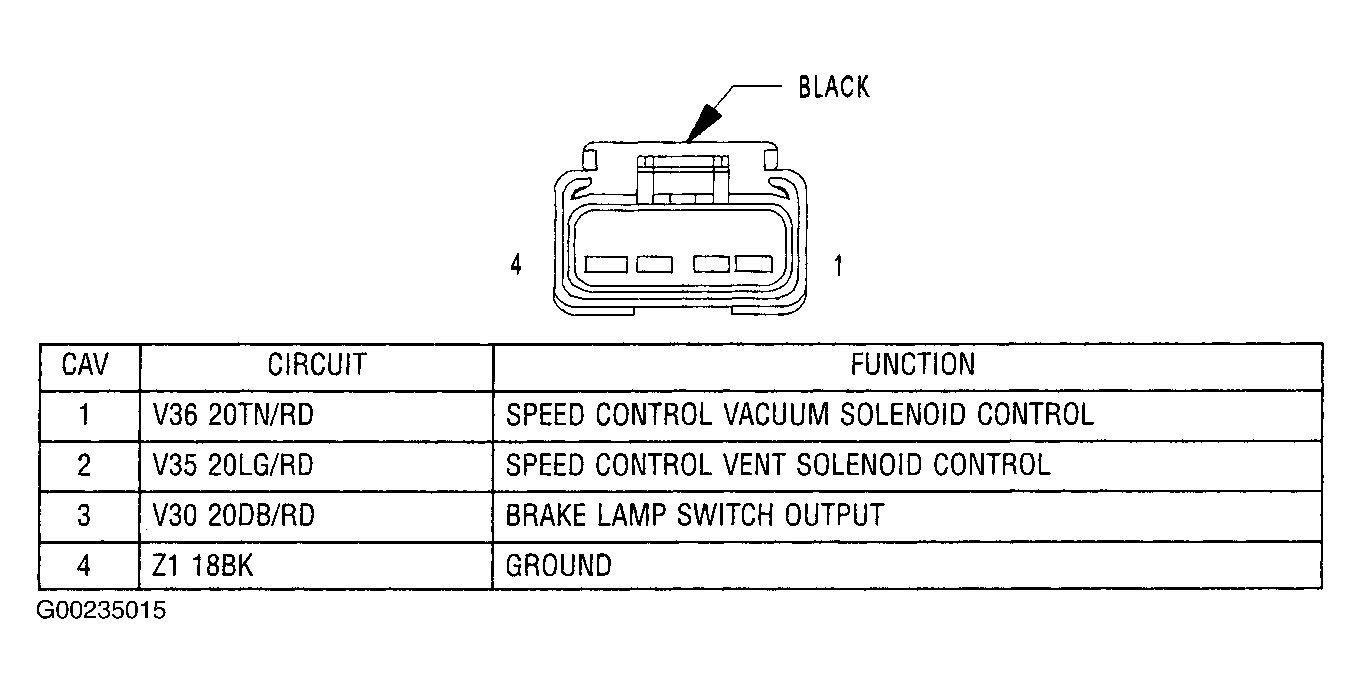

Fig 46: Identifying Speed Control Servo Harness Connector Terminals

G00235015

Courtesy of CHRYSLER CORP.

Fig 47: Identifying Speed Control Switch (Left) Harness Connector Terminals

G00234992

Courtesy of CHRYSLER CORP.

Fig 48: Identifying Speed Control Switch (Right) Harness Connector Terminals

G00235014

Courtesy of CHRYSLER CORP.

Fig 49: Identifying Throttle Position Sensor Harness Connector Terminals

G00235016

Courtesy of CHRYSLER CORP.

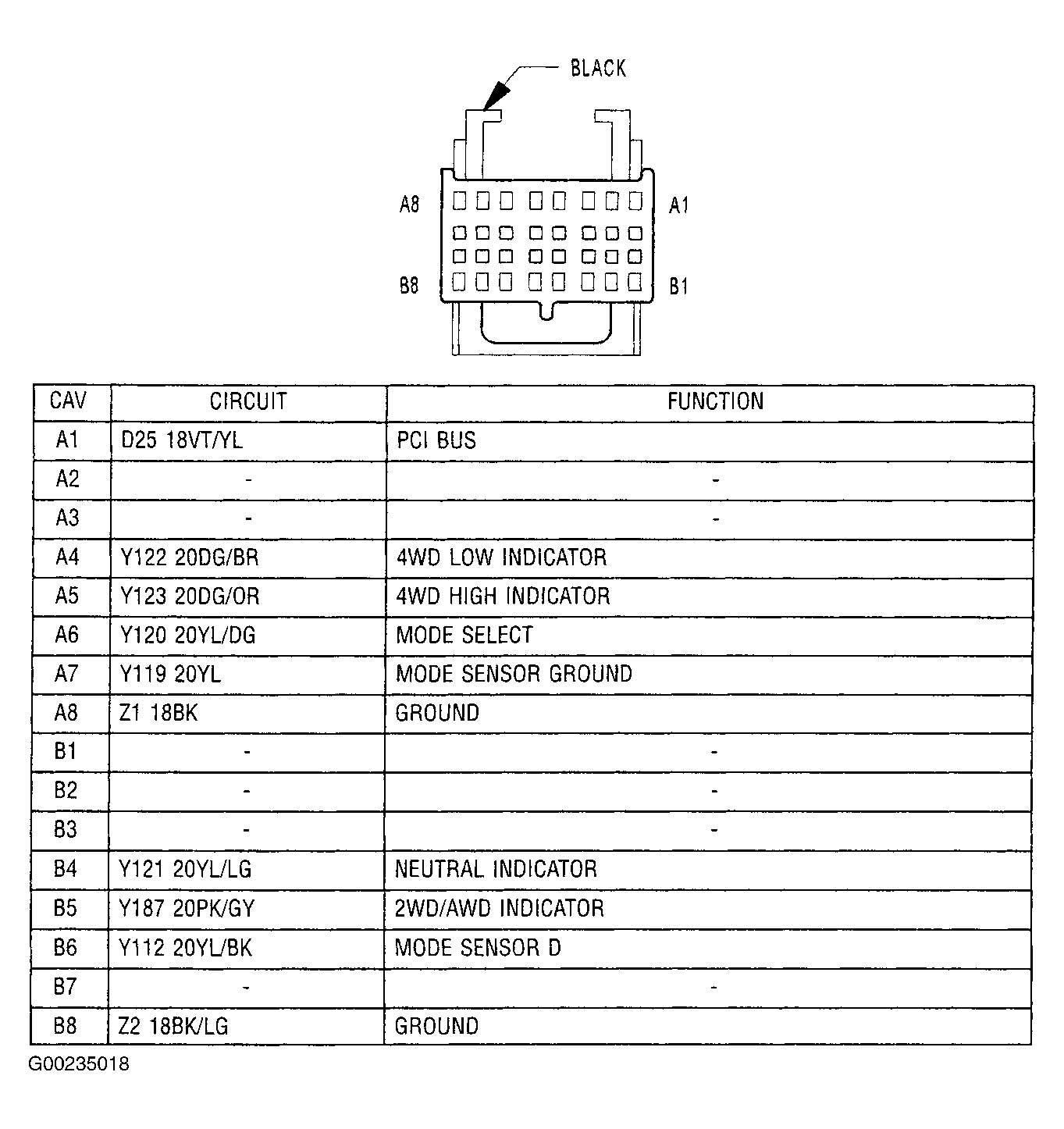

Fig 50: Identifying Transfer Case Control Module C1 Harness Connector Terminals

G00235018

Courtesy of CHRYSLER CORP.

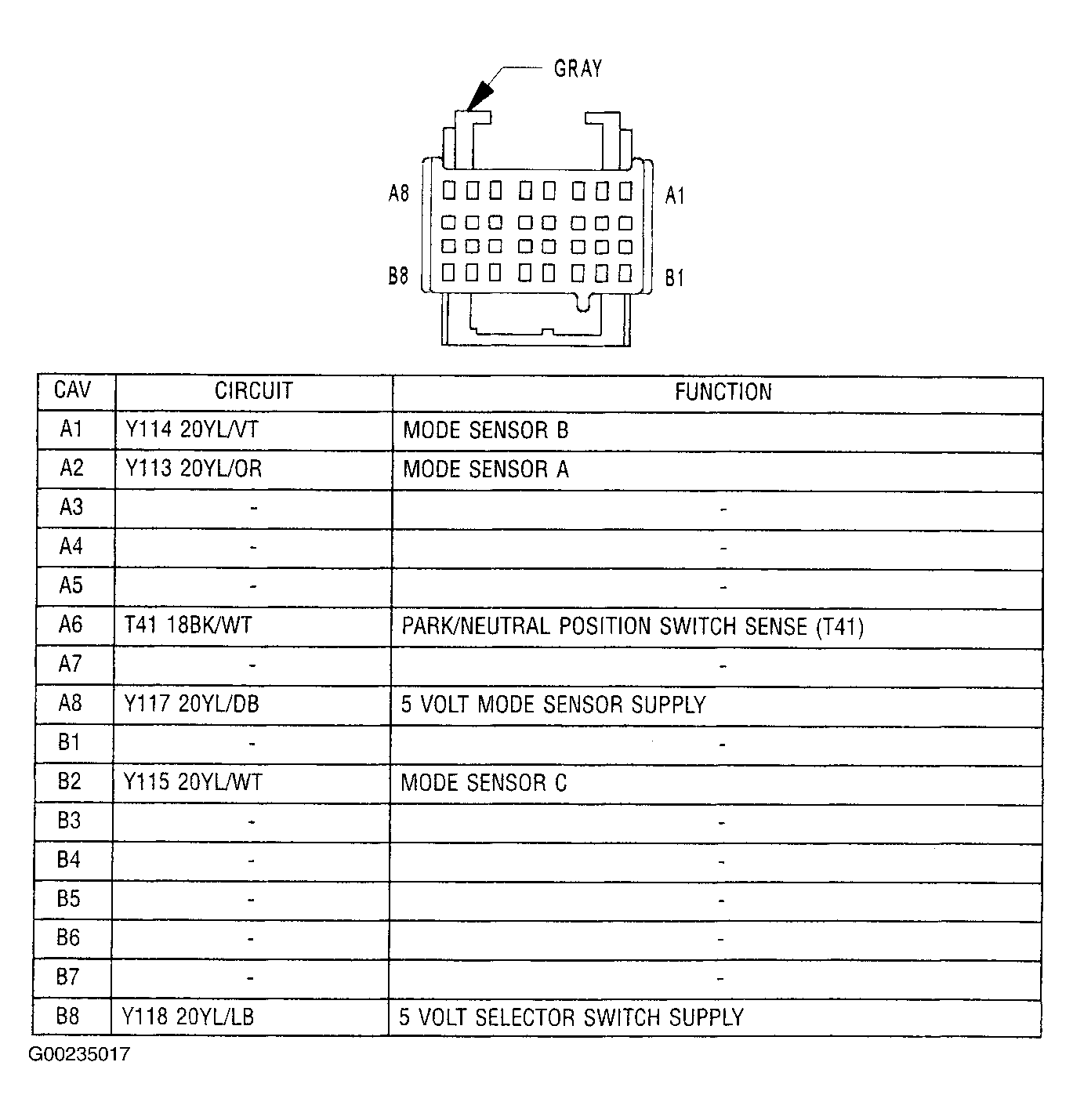

Fig 51: Identifying Transfer Case Control Module C2 Harness Connector Terminals

G00235017

Courtesy of CHRYSLER CORP.

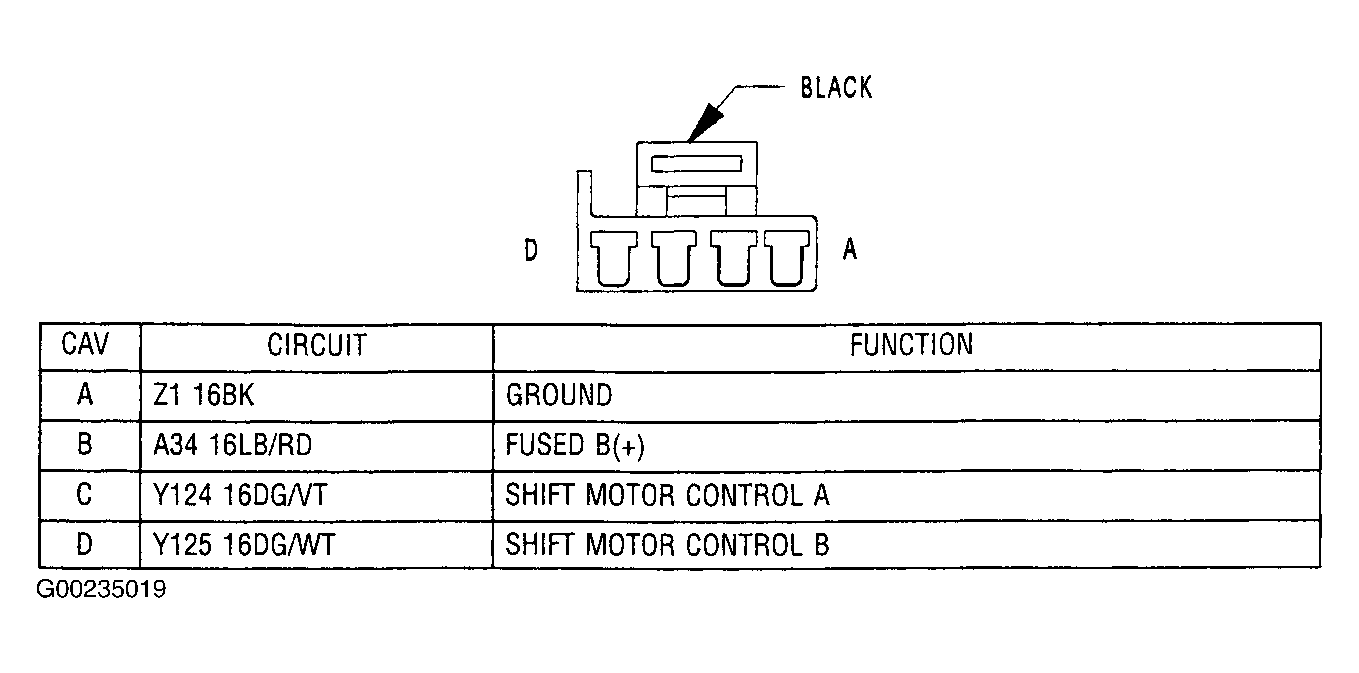

Fig 52: Identifying Transfer Case Control Module C3 Harness Connector Terminals

G00235019

Courtesy of CHRYSLER CORP.

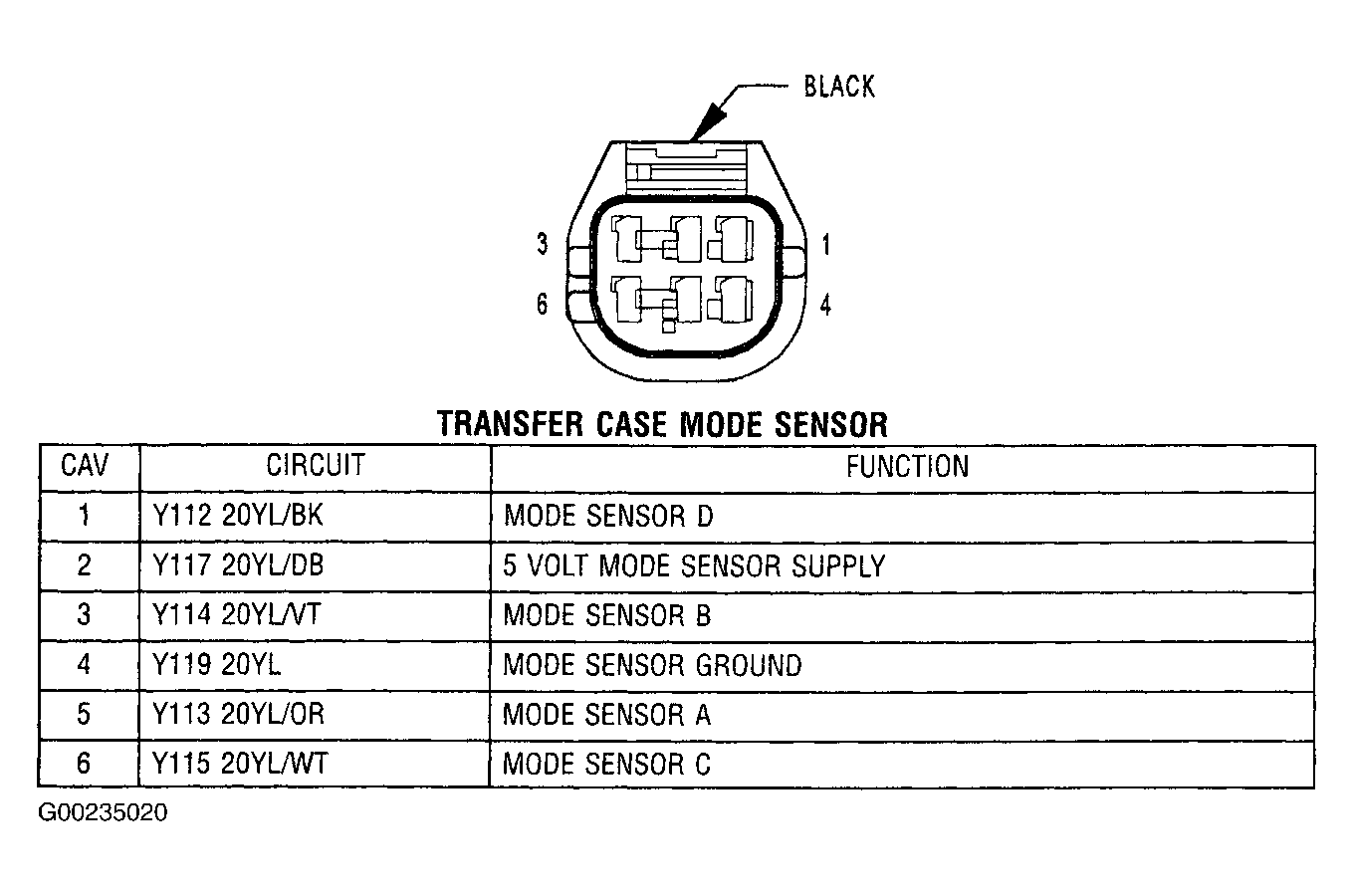

Fig 53: Identifying Transfer Case Mode Sensor Harness Connector Terminals

G00235020

Courtesy of CHRYSLER CORP.

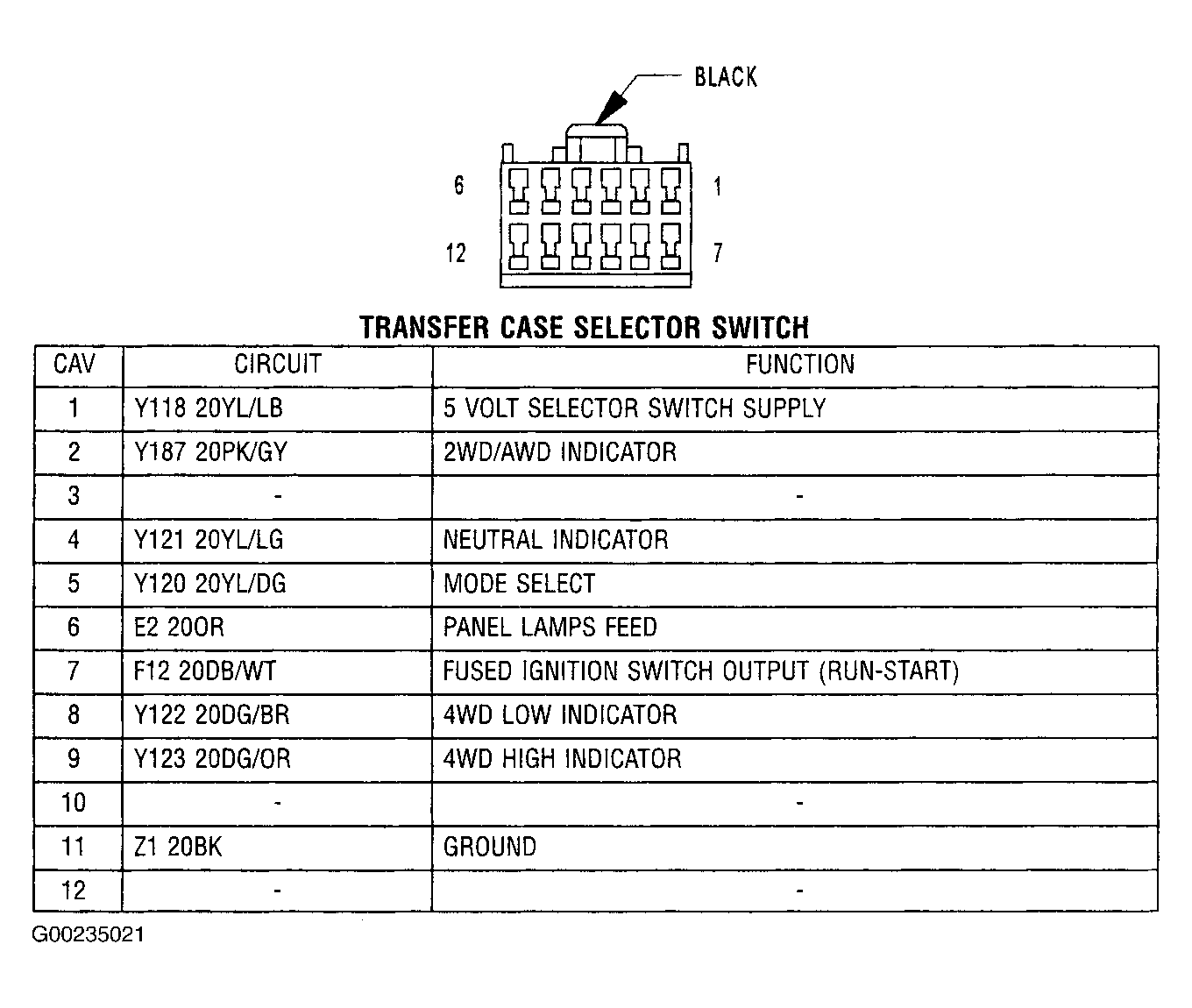

Fig 54: Identifying Transfer Case Selector Switch Harness Connector Terminals

G00235021

Courtesy of CHRYSLER CORP.

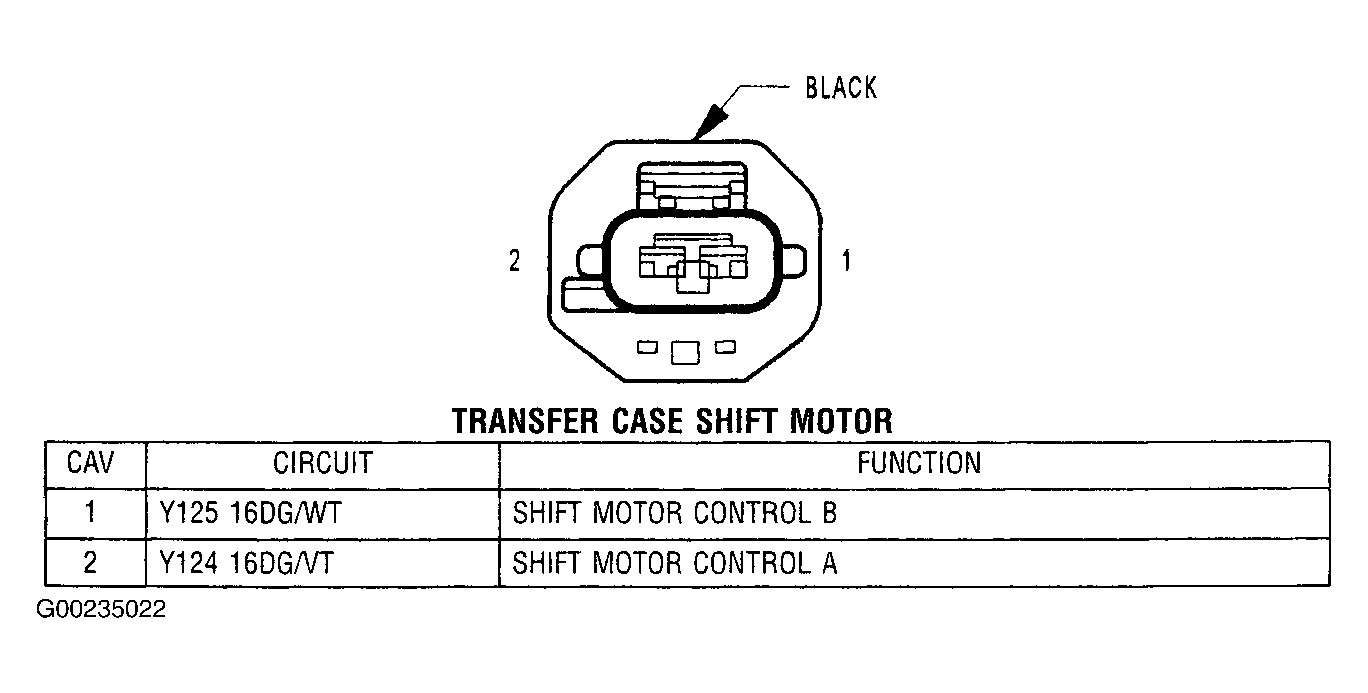

Fig 55: Identifying Transfer Case Shift Motor Harness Connector Terminals

G00235022

Courtesy of CHRYSLER CORP.

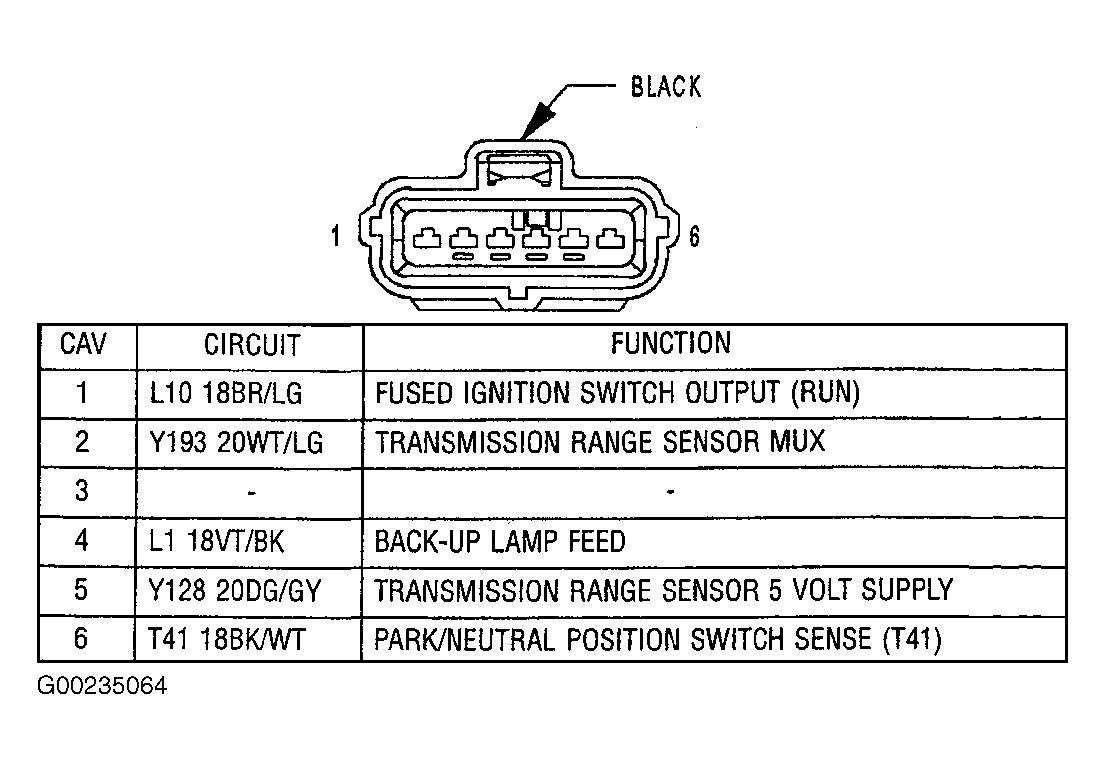

Fig 56: Identifying Transmission Range Sensor Harness Connector Terminals

G00235064

Courtesy of CHRYSLER CORP.

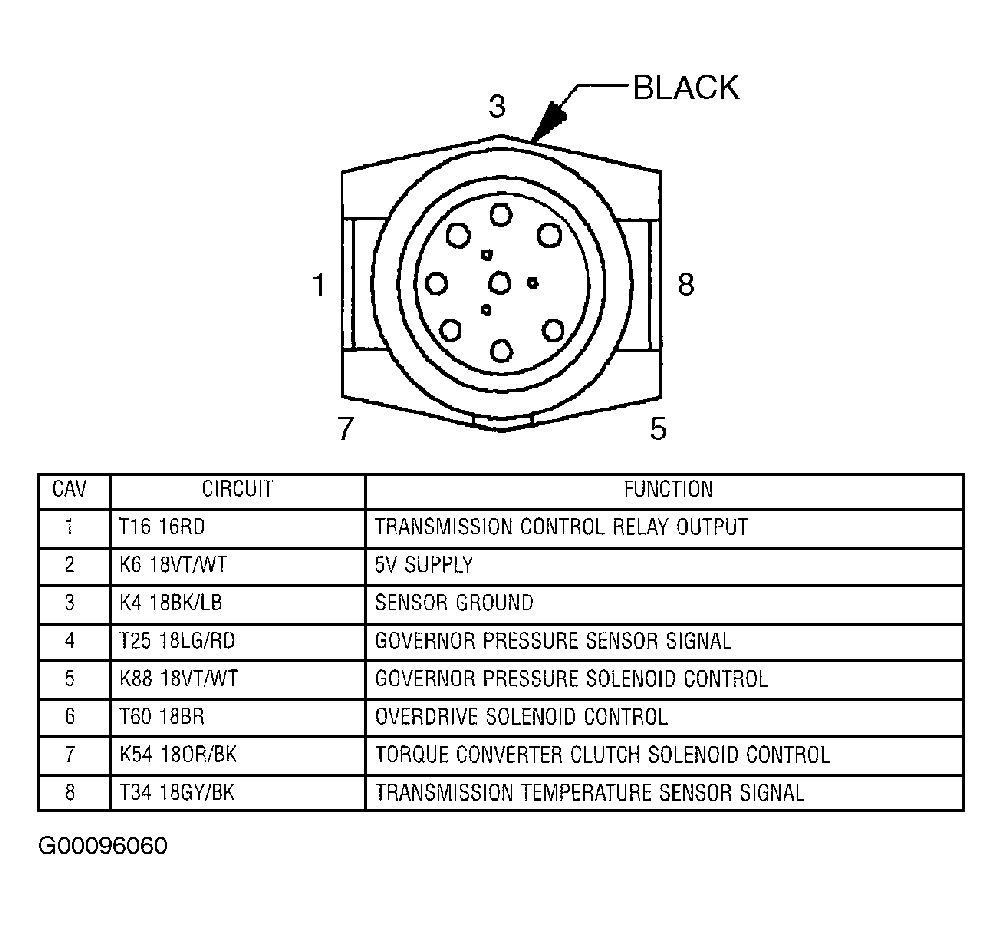

Fig 57: Identifying Transmission Solenoid Assembly Harness Connector Terminals

G00096060

Courtesy of DAIMLERCHRYSLER

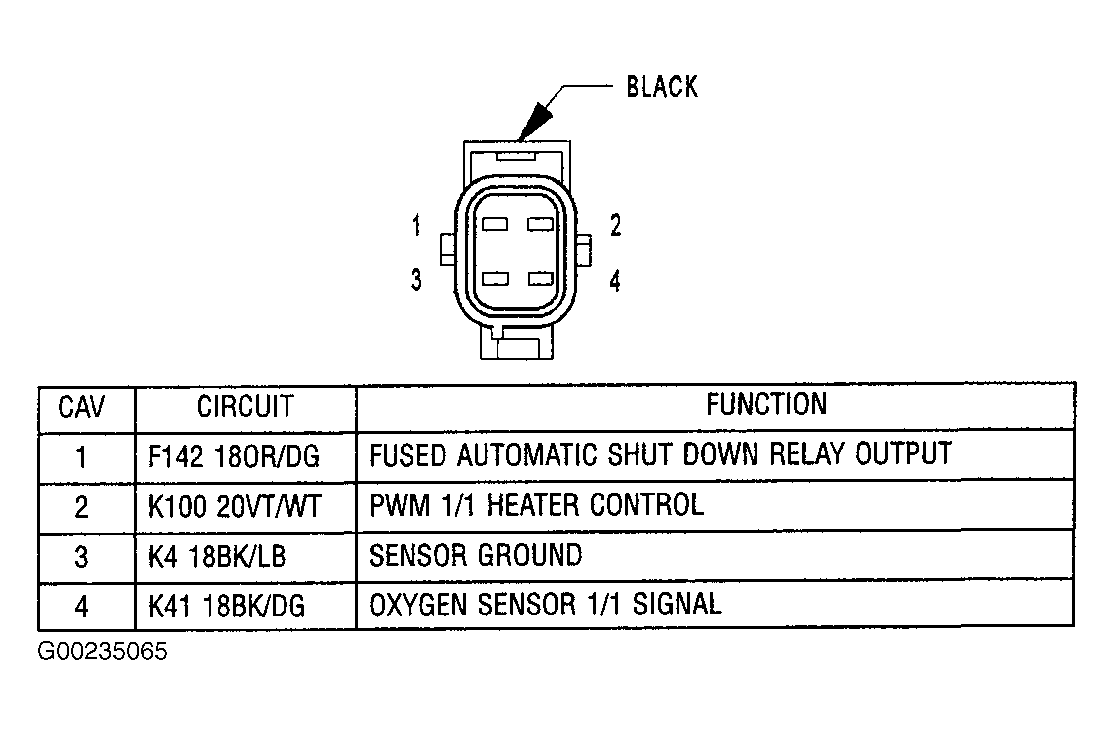

Fig 58: Identifying 1/1 Oxygen Sensor (California) Harness Connector Terminals

G00235065

Courtesy of CHRYSLER CORP.

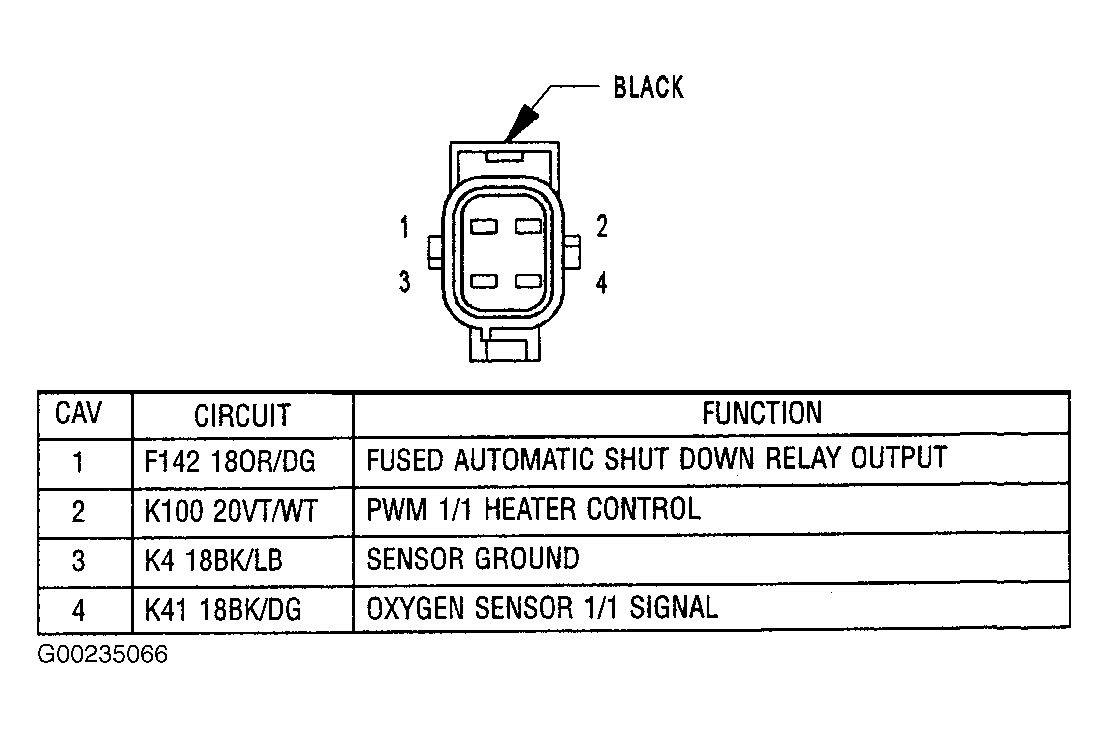

Fig 59: Identifying 1/1 Oxygen Sensor (Non-California) Harness Connector Terminals

G00235066

Courtesy of CHRYSLER CORP.

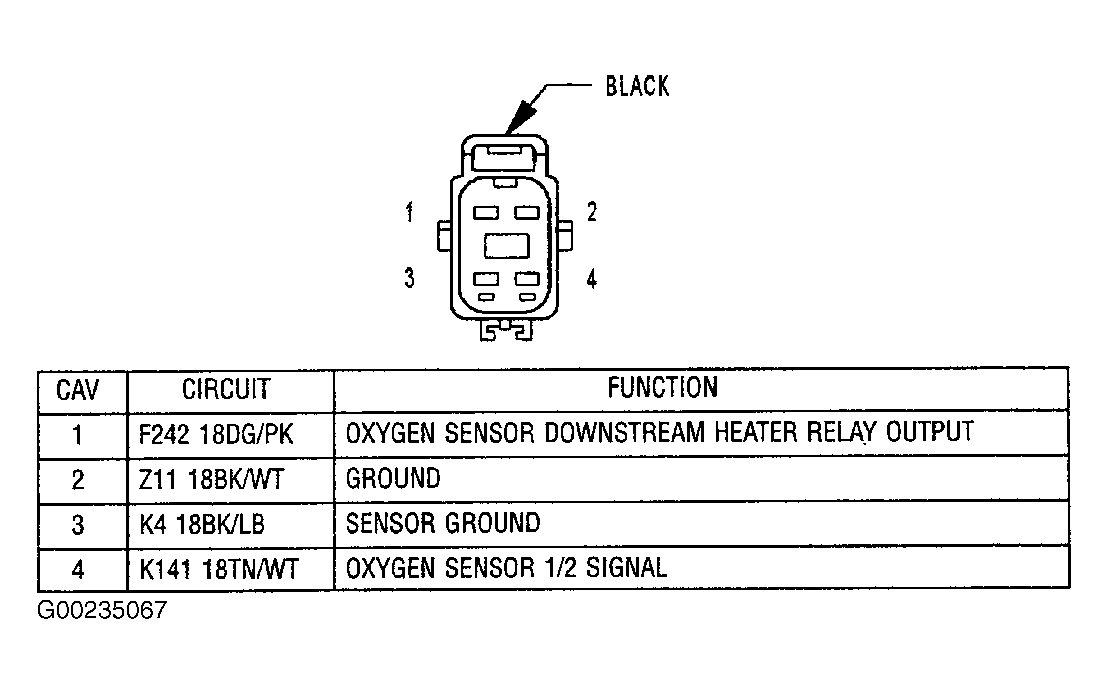

Fig 60: Identifying 1/2 Oxygen Sensor (California) Harness Connector Terminals

G00235067

Courtesy of CHRYSLER CORP.

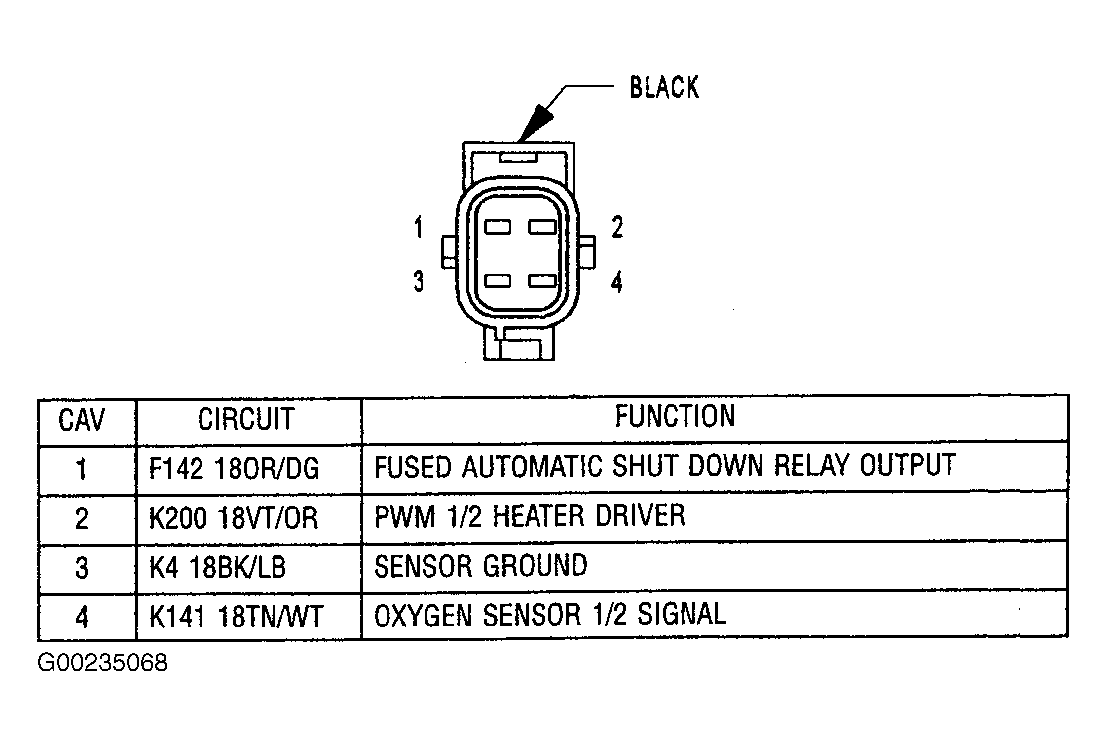

Fig 61: Identifying 1/2 Oxygen Sensor (Non-California) Harness Connector Terminals

G00235068

Courtesy of CHRYSLER CORP.

Fig 62: Identifying 2/1 Oxygen Sensor (California) Harness Connector Terminals

G00235069

Courtesy of CHRYSLER CORP.

Fig 63: Identifying 2/2 Oxygen Sensor (California) Harness Connector Terminals

G00235070

Courtesy of CHRYSLER CORP.
