Component Locations

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: See Fig 1 -Fig 25 for component locations.

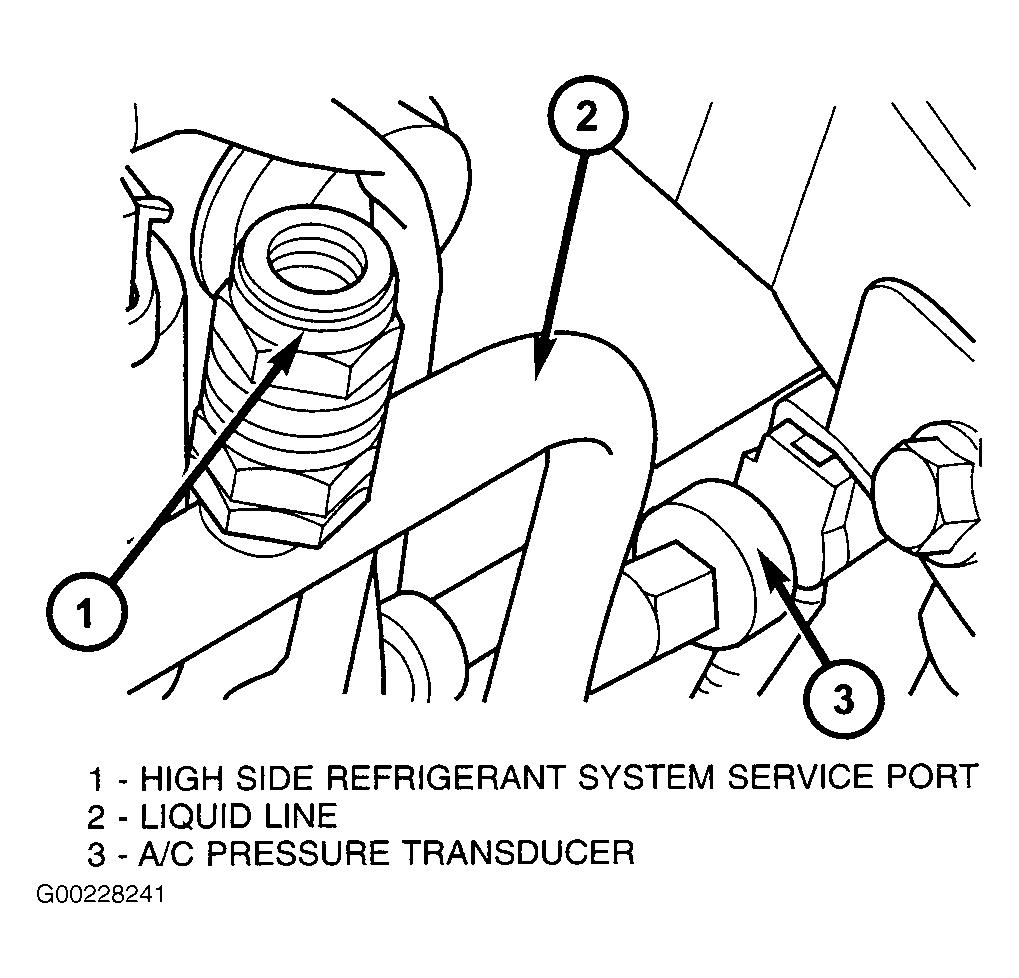

Fig 1: Locating A/C Pressure Transducer

G00228241

Courtesy of CHRYSLER CORP.

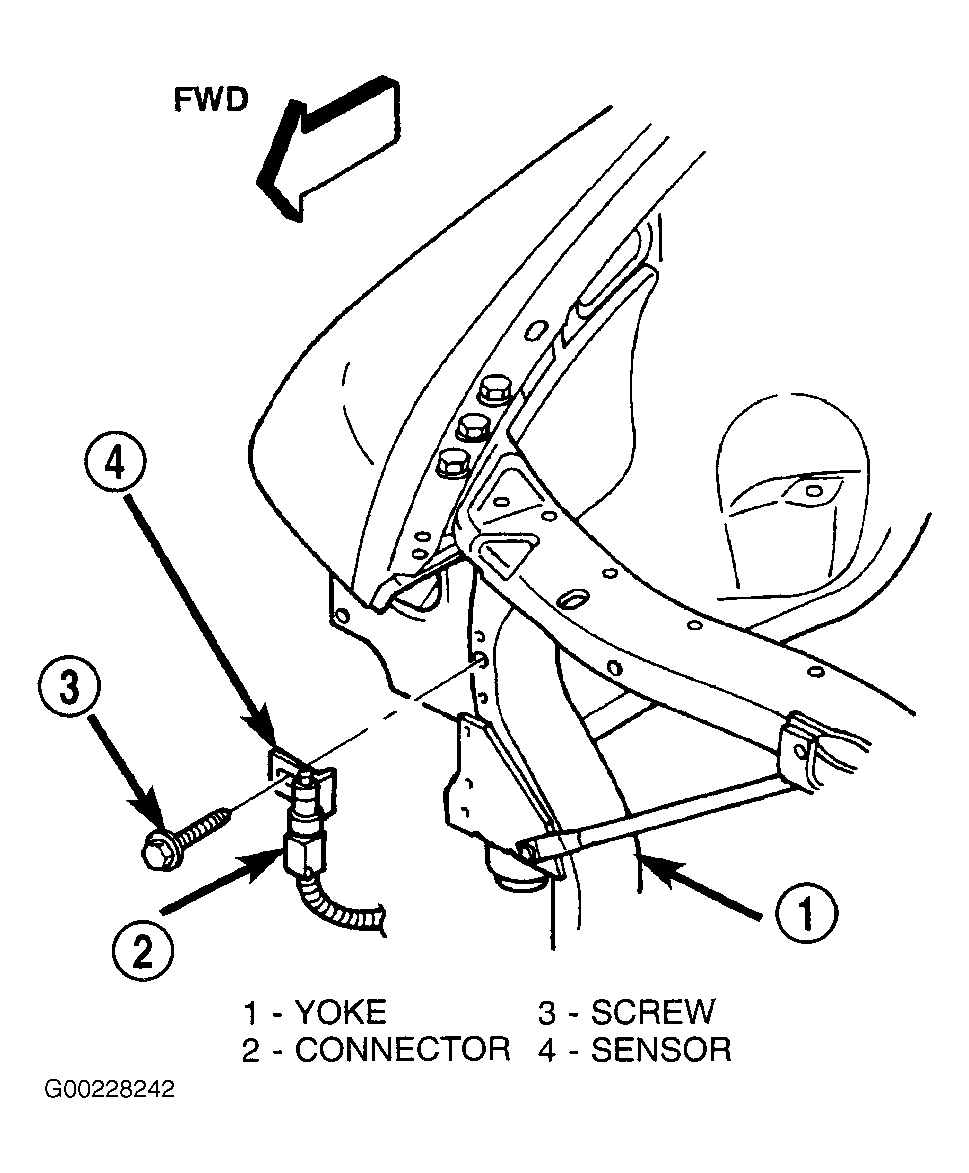

Fig 2: Locating Ambient Temperature Sensor

G00228242

Courtesy of CHRYSLER CORP.

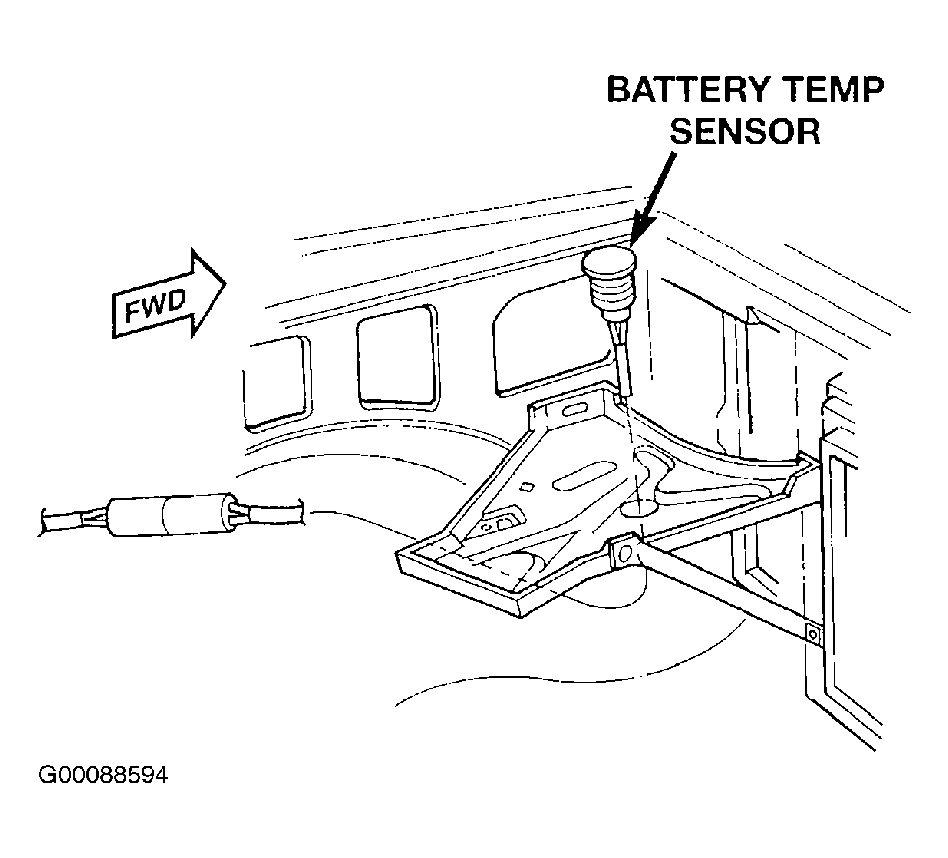

Fig 3: Locating Battery Temperature Sensor

G00088594

Courtesy of DAIMLERCHRYSLER

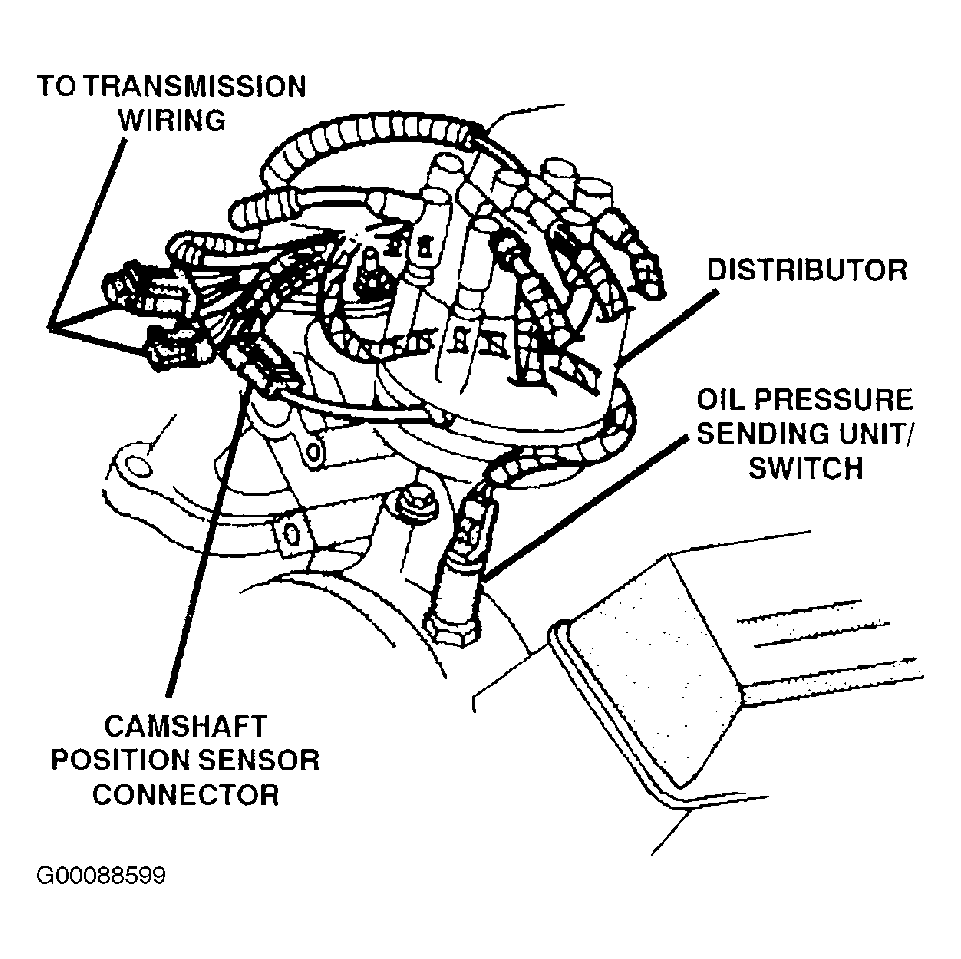

Fig 4: Locating Camshaft Position Sensor Harness Connector

G00088599

Courtesy of DAIMLERCHRYSLER

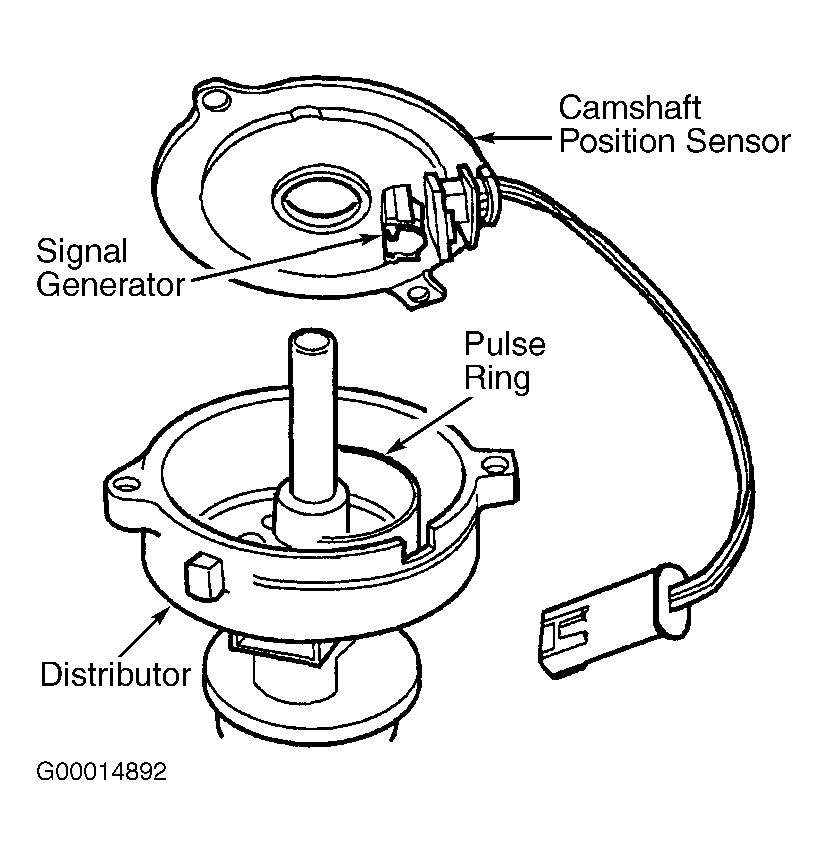

Fig 5: Locating Camshaft Position Sensor & Pulse Ring

G00014892

Courtesy of DAIMLERCHRYSLER CORPORATION

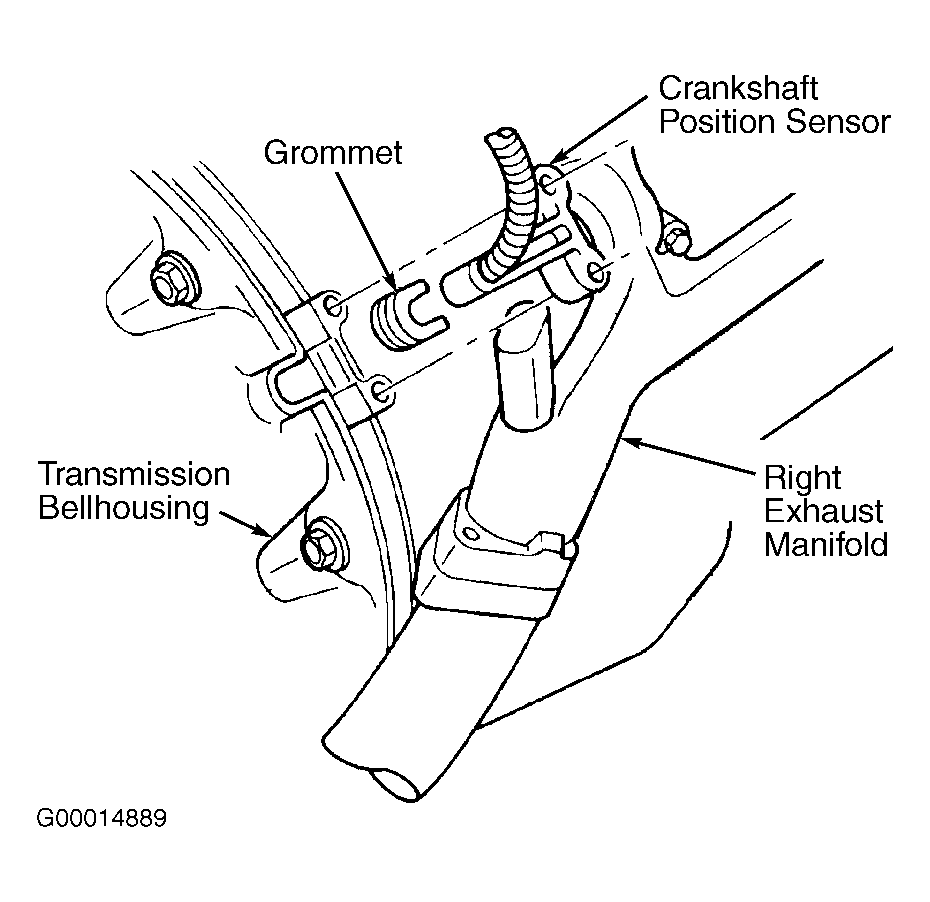

Fig 6: Locating Crankshaft Position Sensor

G00014889

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 7: Locating Data Link Connector

G00228246

Courtesy of CHRYSLER CORP.

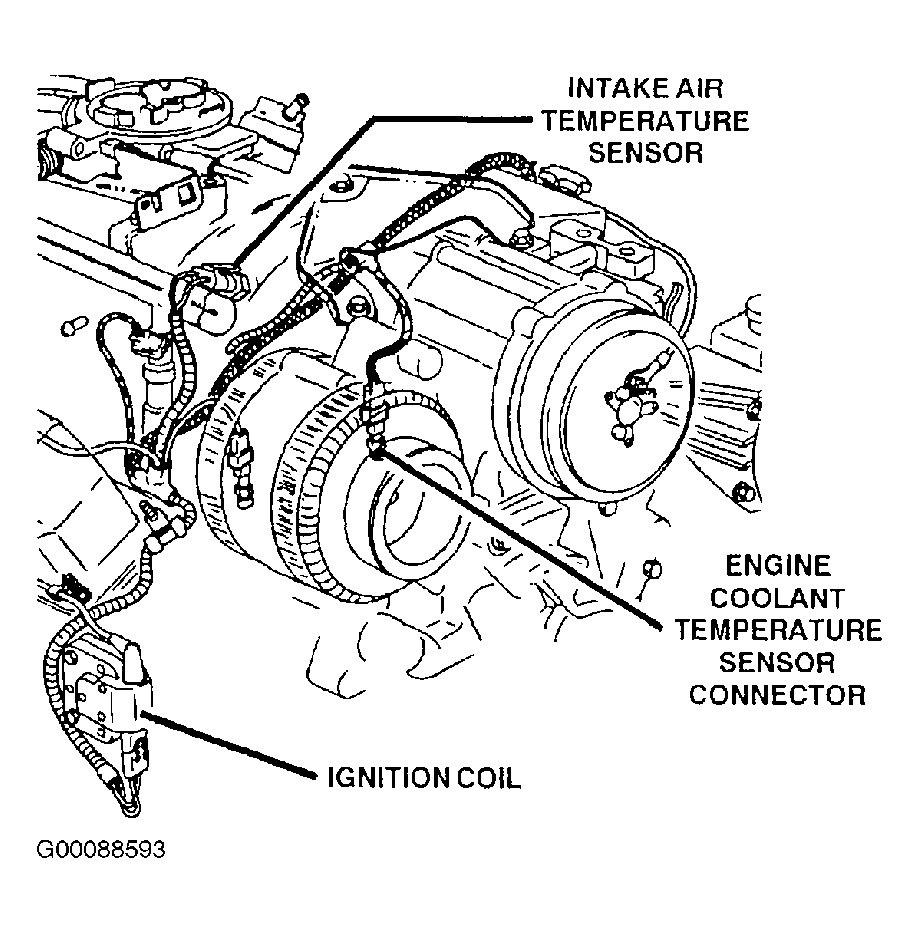

Fig 8: Locating Engine Coolant Temperature Sensor, Ignition Coil & Intake Air Temperature Sensor

G00088593

Courtesy of DAIMLERCHRYSLER

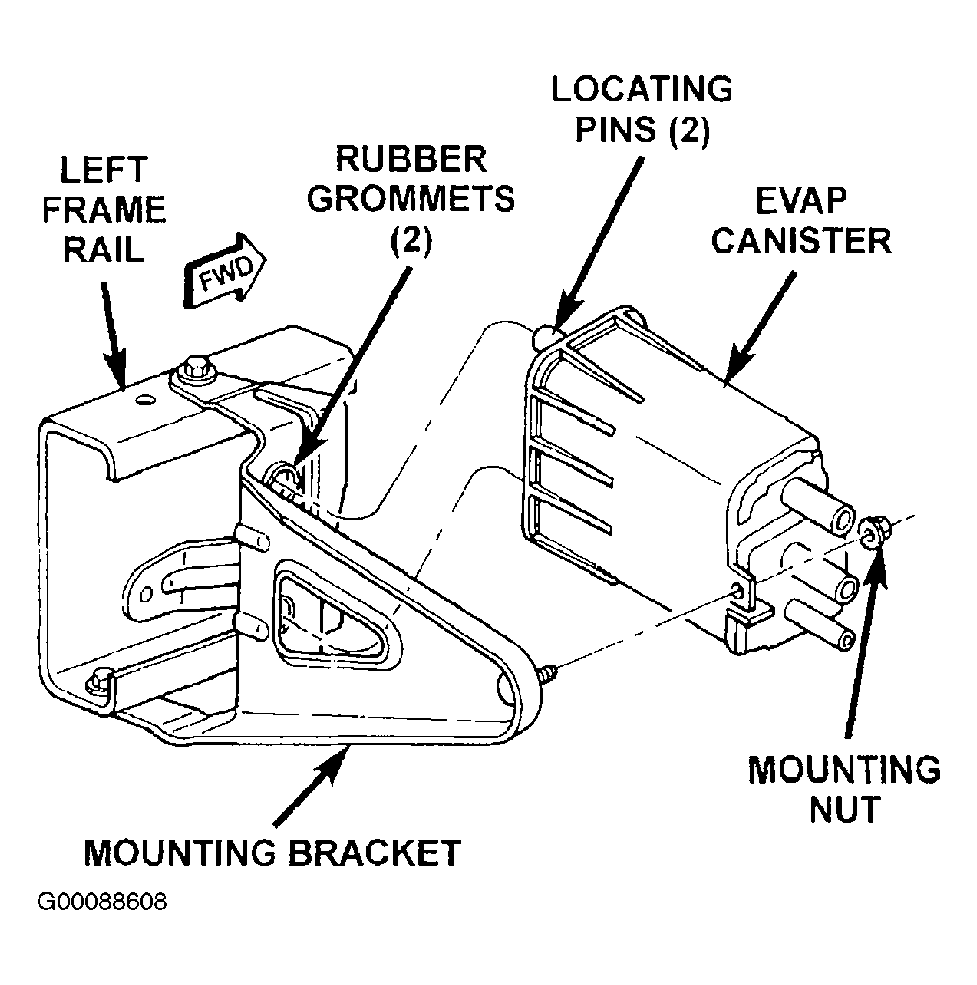

Fig 9: Locating Evaporative Emissions Canister

G00088608

Courtesy of DAIMLERCHRYSLER

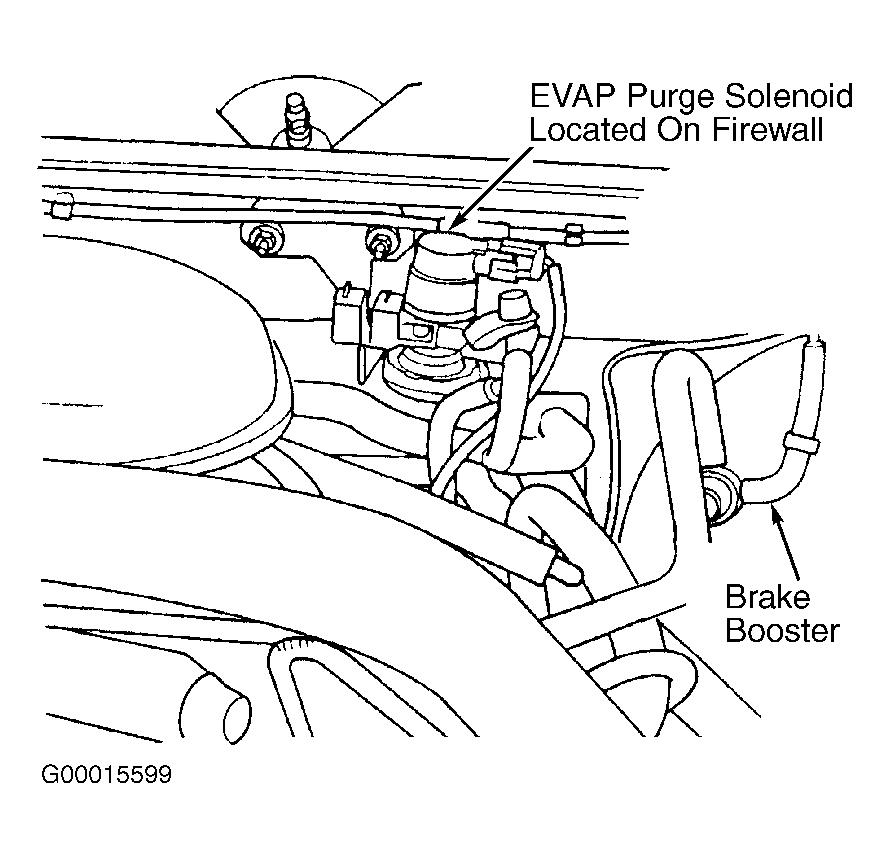

Fig 10: Locating Evaporative Emissions Purge Solenoid

G00015599

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 11: Locating Fuel Injectors

G00088610

Courtesy of DAIMLERCHRYSLER

Fig 12: Locating Fuel Pump Module

G00088606

Courtesy of DAIMLERCHRYSLER

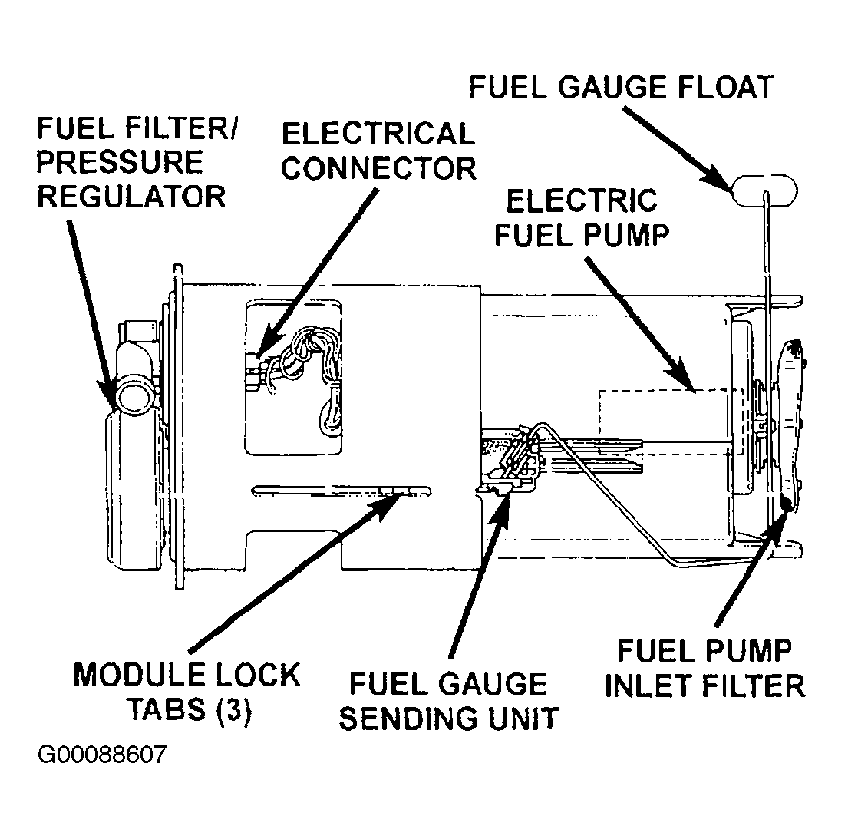

Fig 13: Locating Fuel Pump Module Components

G00088607

Courtesy of DAIMLERCHRYSLER

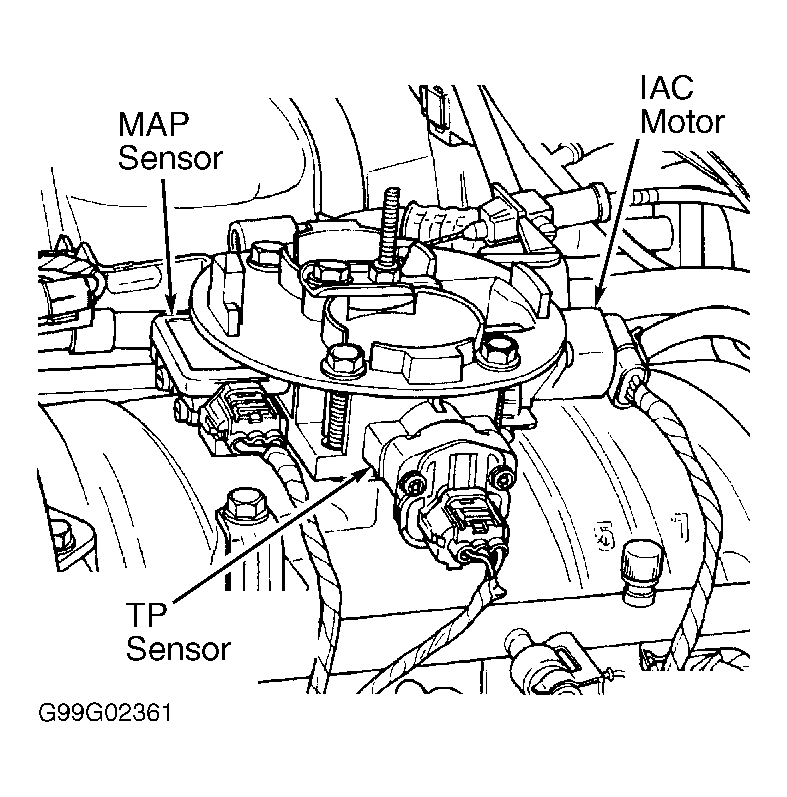

Fig 14: Locating Idle Air Control Motor, Manifold Absolute Pressure Sensor & Throttle Position Sensor

G99G02361

Courtesy of DAIMLERCHRYSLER CORPORATION

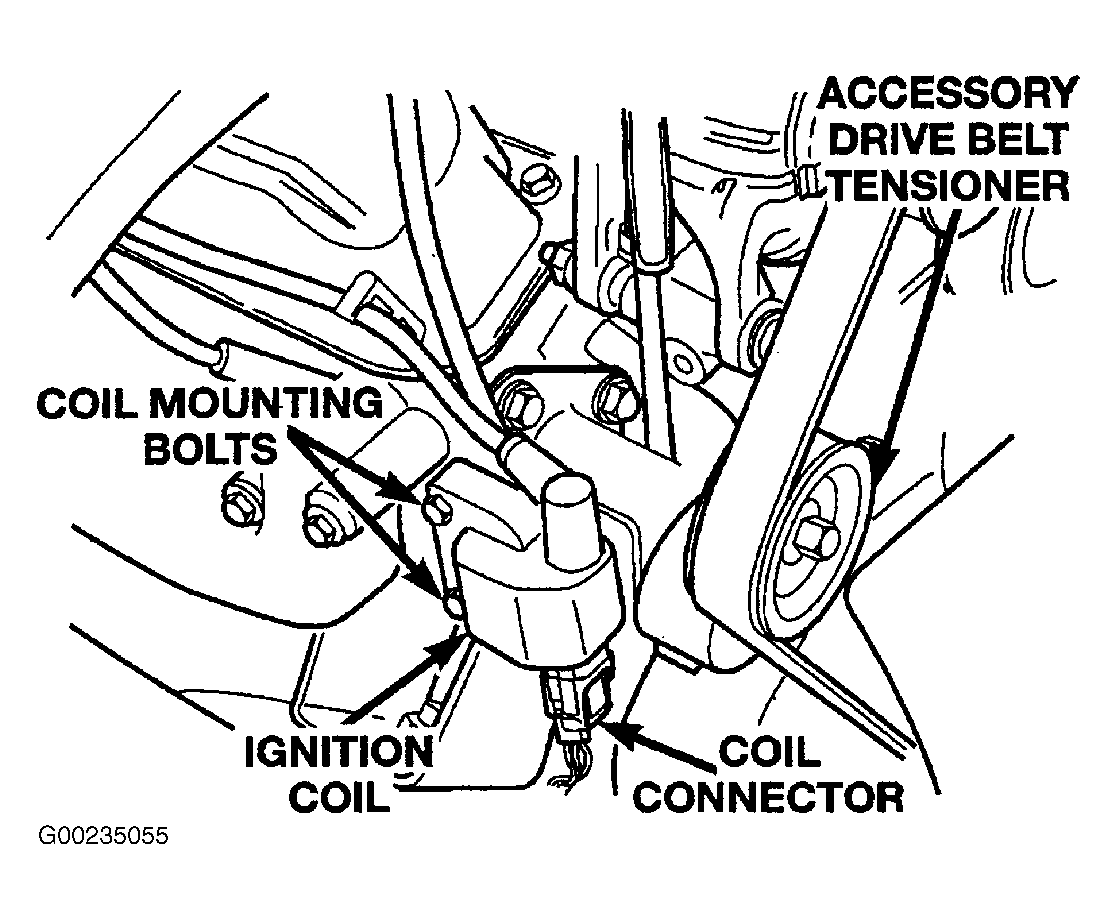

Fig 15: Locating Ignition Coil

G00235055

Courtesy of CHRYSLER CORP.

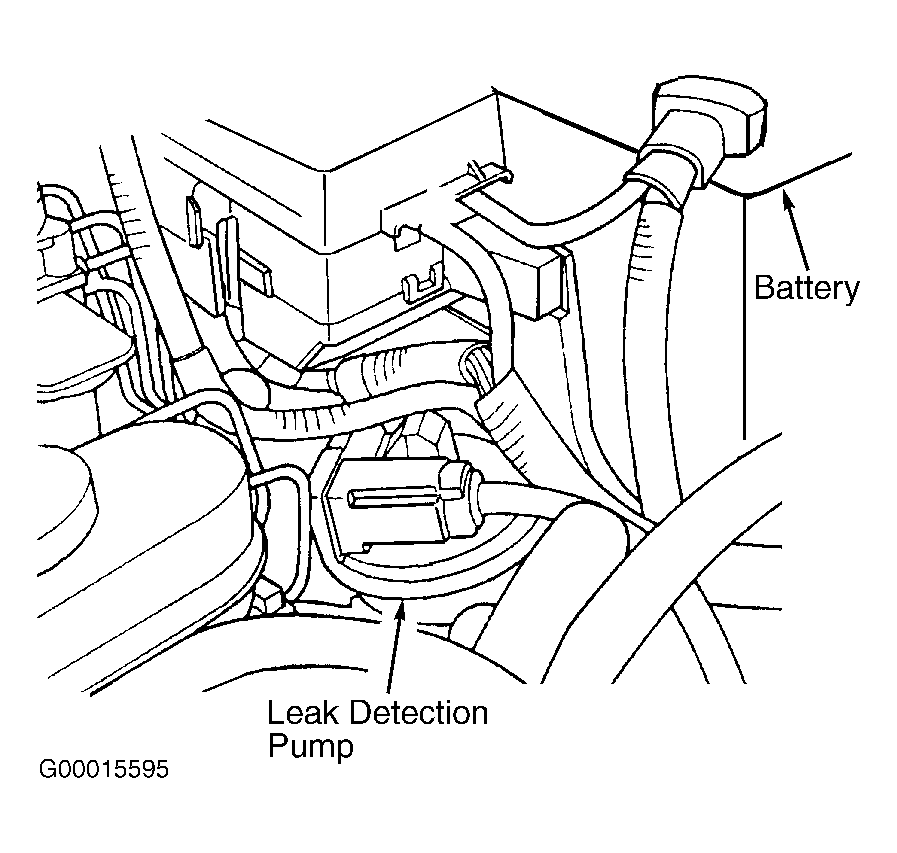

Fig 16: Locating Leak Detection Pump

G00015595

Courtesy of DAIMLERCHRYSLER CORPORATION

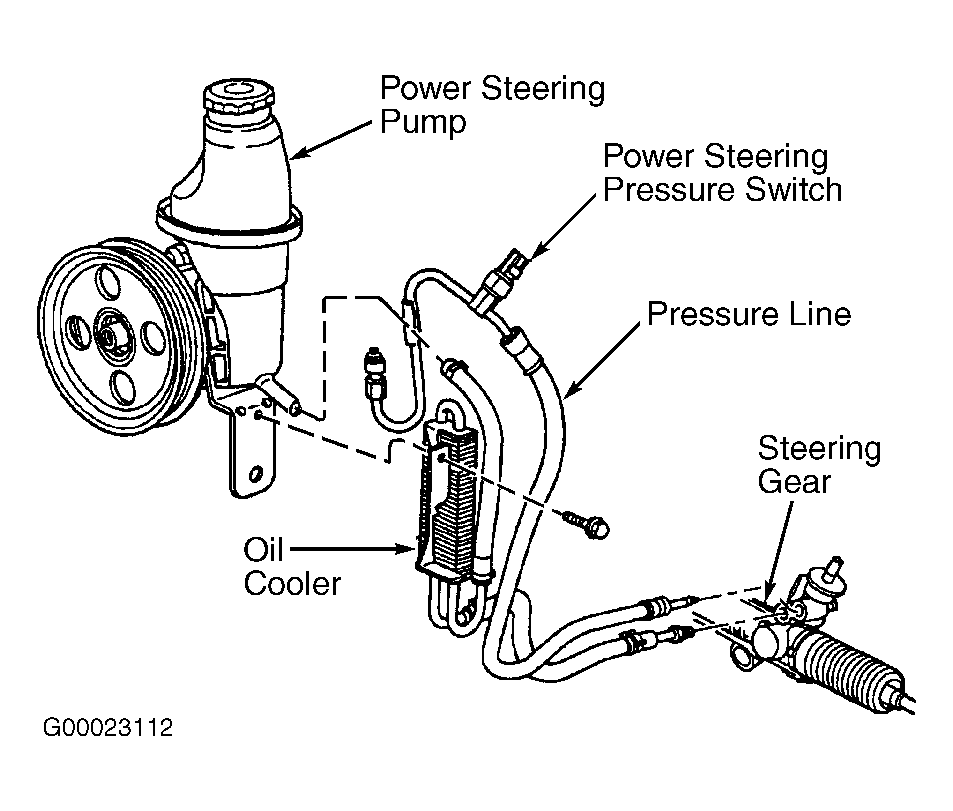

Fig 17: Locating Power Steering Pressure Switch

G00023112

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 18: Locating Power Distribution Center

G00228243

Courtesy of CHRYSLER CORP.

Fig 19: Locating Powertrain Control Module & Harness Connectors

G00088600

Courtesy of DAIMLERCHRYSLER

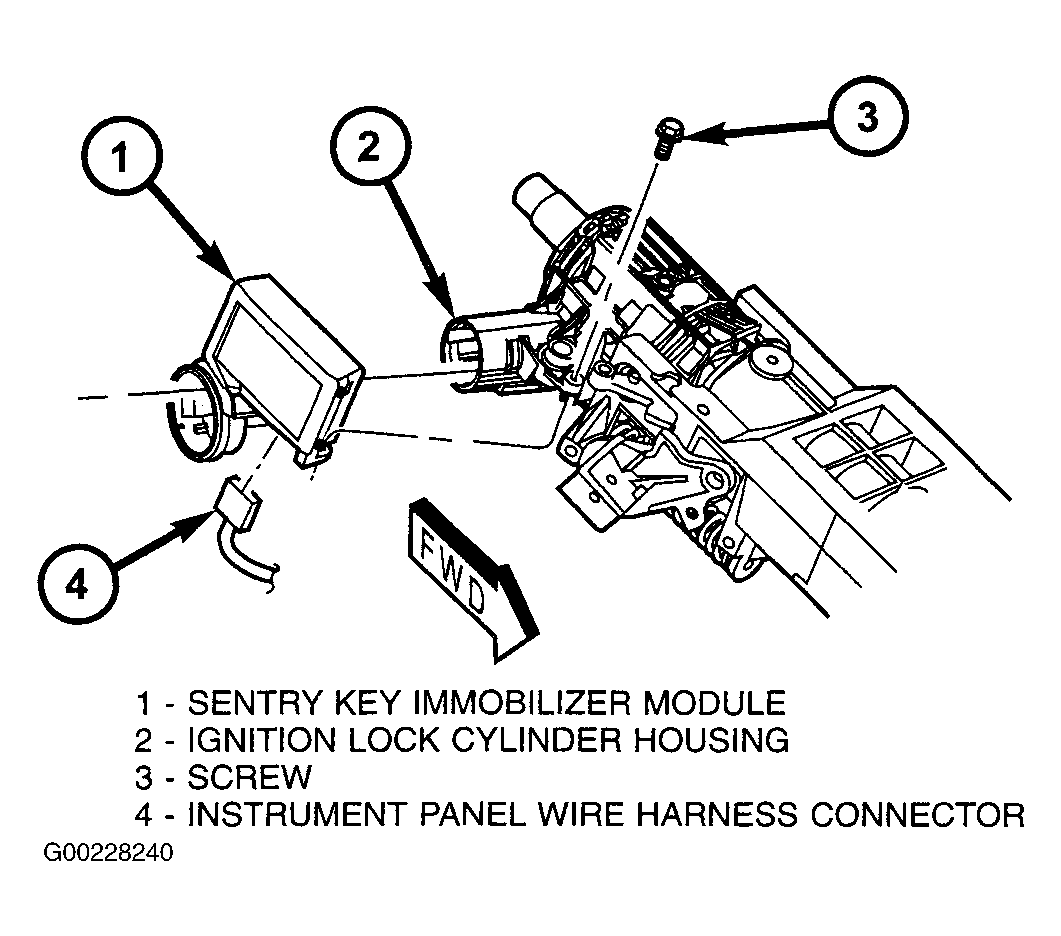

Fig 20: Locating Sentry Key Immobilizer Module

G00228240

Courtesy of CHRYSLER CORP.

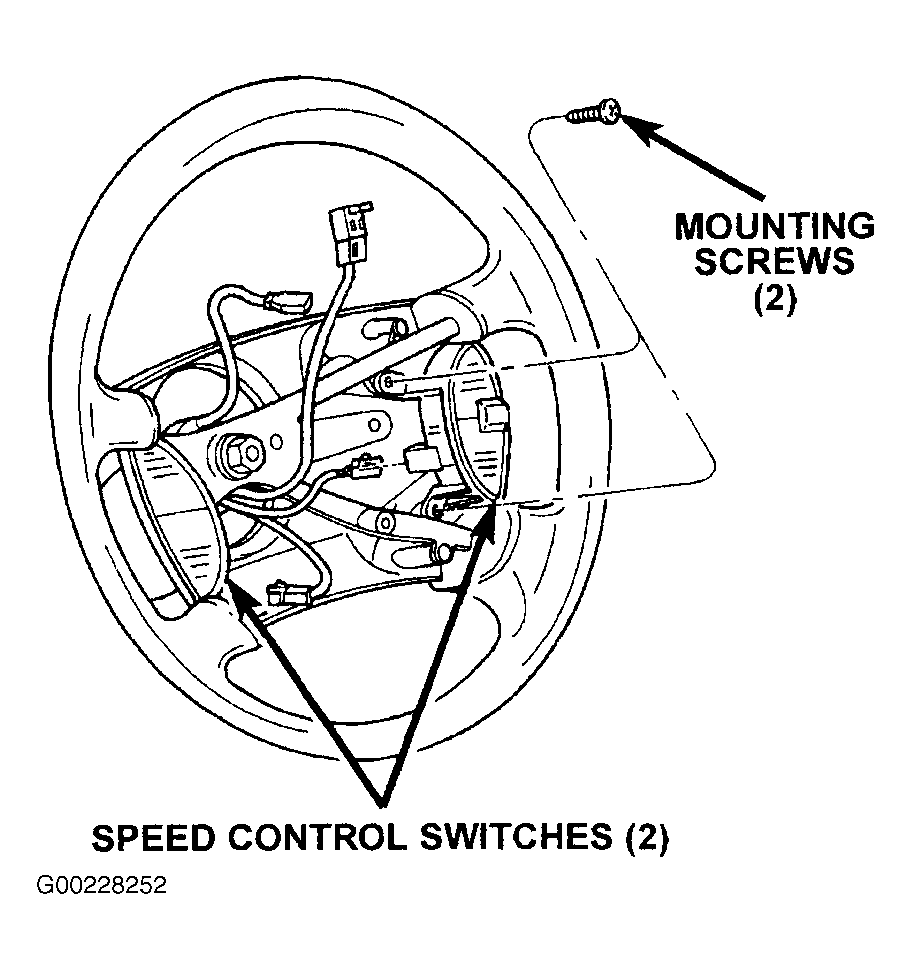

Fig 21: Locating Speed Control Switches

G00228252

Courtesy of CHRYSLER CORP.

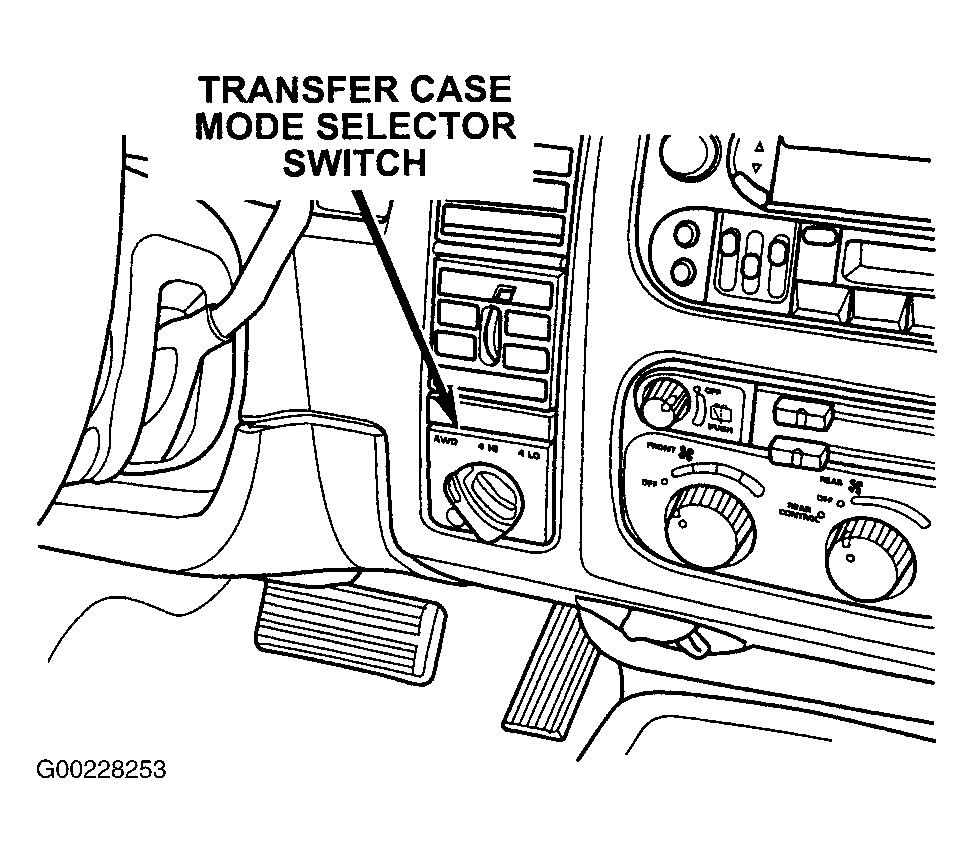

Fig 22: Locating Transfer Case Mode Selector Switch

G00228253

Courtesy of CHRYSLER CORP.

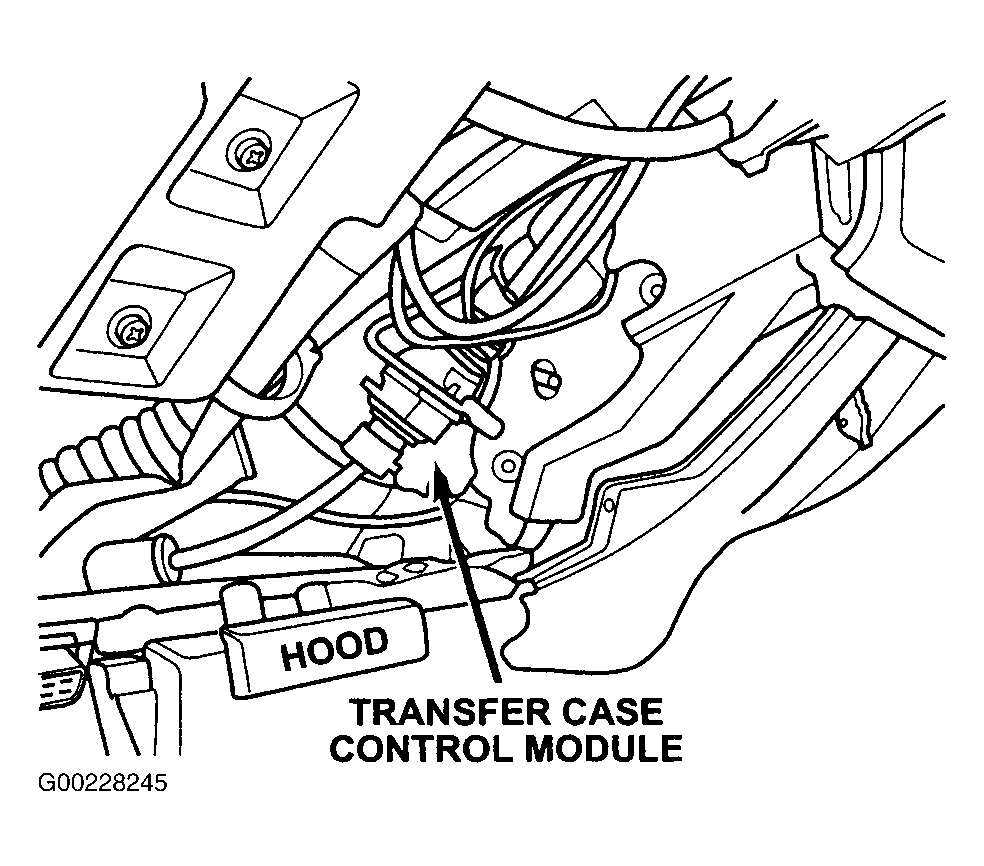

Fig 23: Locating Transfer Case Control Module

G00228245

Courtesy of CHRYSLER CORP.

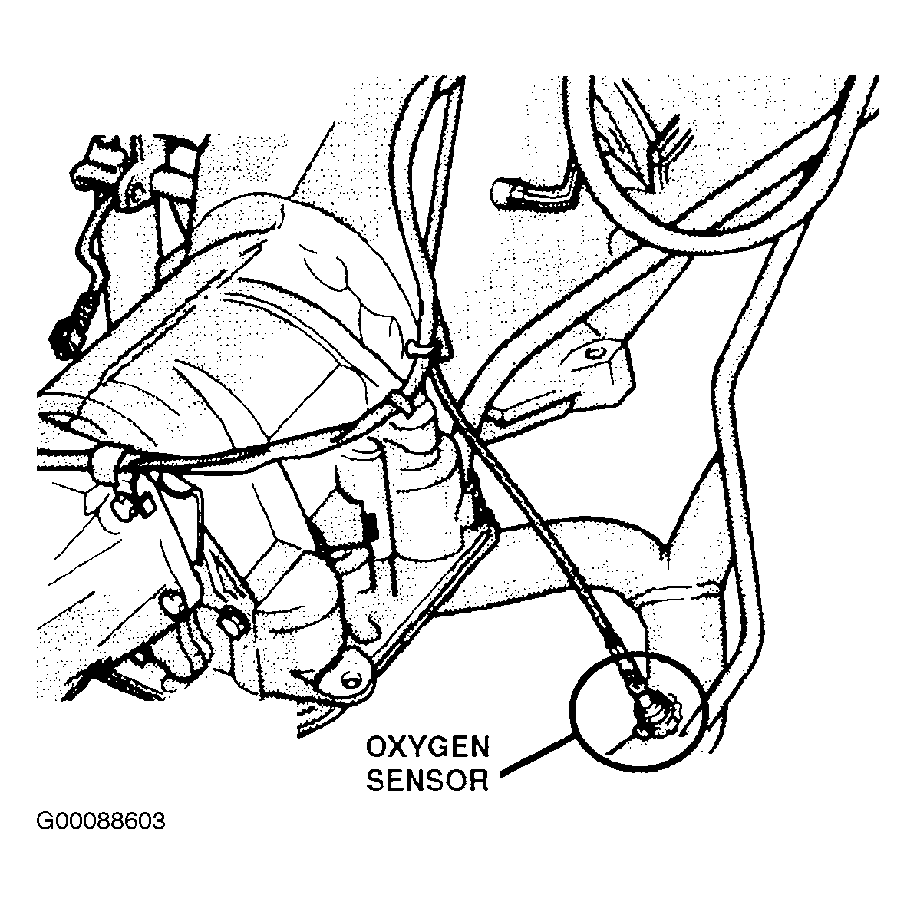

Fig 24: Locating 1/1 (Upstream) Oxygen Sensor

G00088603

Courtesy of DAIMLERCHRYSLER

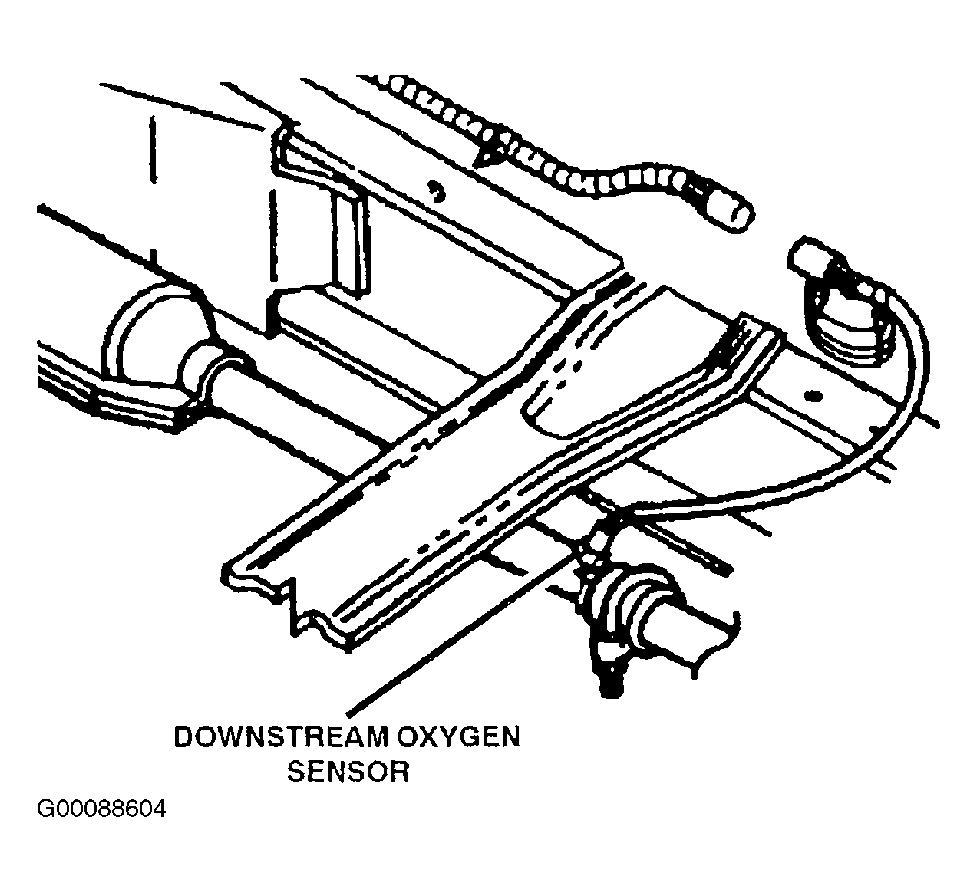

Fig 25: Locating 1/2 (Downstream) Oxygen Sensor

G00088604

Courtesy of DAIMLERCHRYSLER
