Removal & Installation (3.9L & 5.9L)

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Intake Air Temperature (IAT) sensor is screwed into front/side of intake manifold. See Fig 1. Remove air inlet duct or air cleaner assembly for access to IAT sensor if necessary. Disconnect electrical connector at IAT sensor. Remove IAT sensor from intake manifold.
To install, reverse removal procedure. Tighten IAT sensor to specification. See TORQUE SPECIFICATIONS .

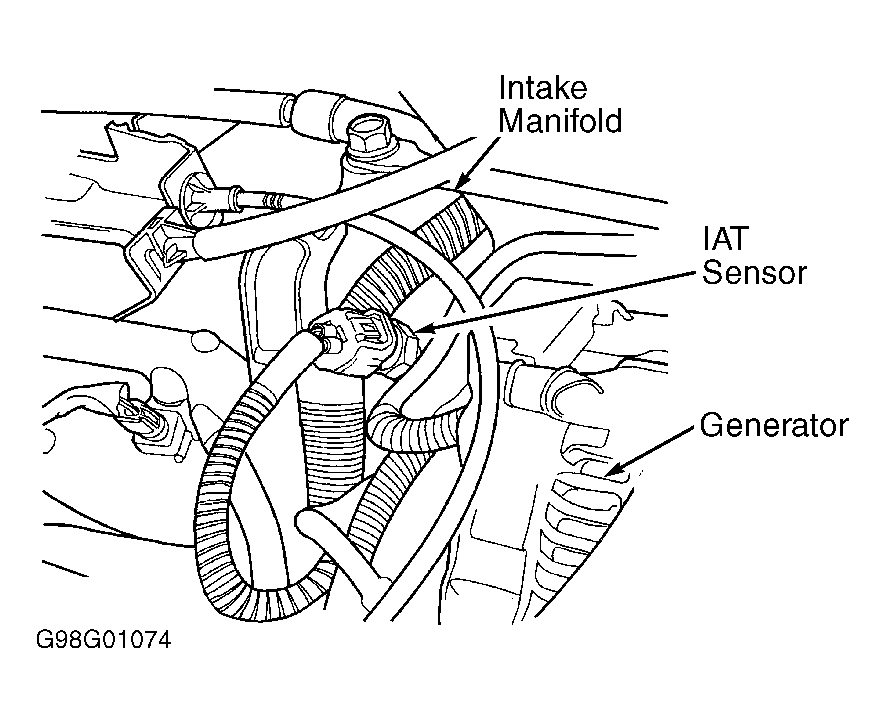

Fig 1: Locating Intake Air Temperature Sensor (3.9L & 5.9L)

Courtesy of CHRYSLER CORP.
