Removal & Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

PCM is located in the engine compartment. See Fig 1, Fig 2 or Fig 3 . Turn ignition off and disconnect negative battery cable. Remove cover for access to electrical connectors at PCM. Disconnect electrical connectors from PCM. Remove PCM retaining bolts and PCM.
To install, reverse removal procedure. Tighten PCM retaining bolts to specification. See TORQUE SPECIFICATIONS .

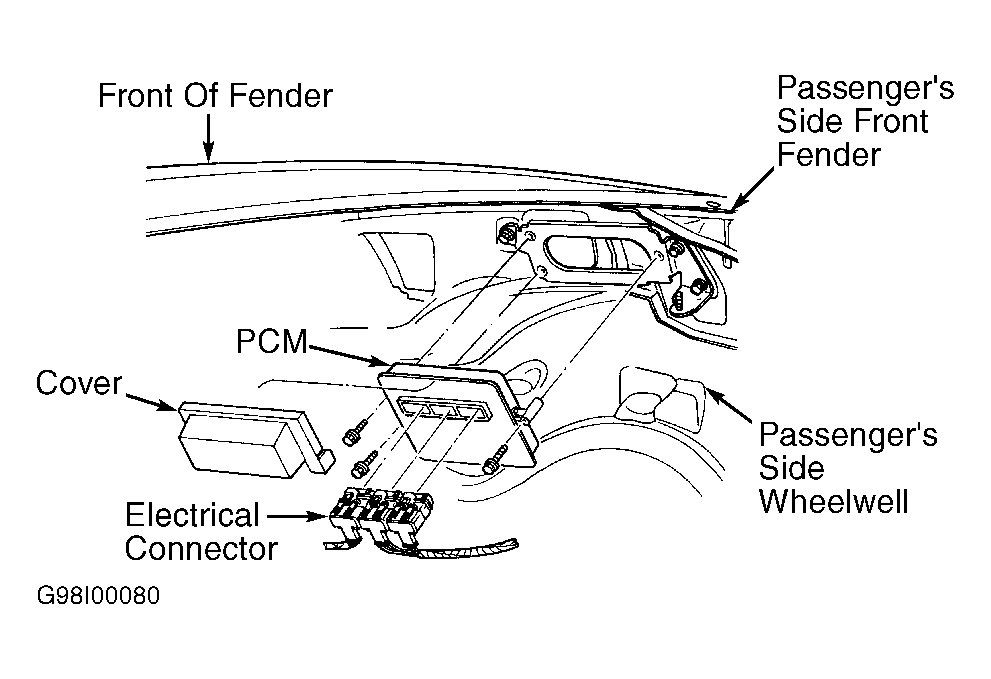

Fig 1: Locating Powertrain Control Module

Courtesy of CHRYSLER CORP.

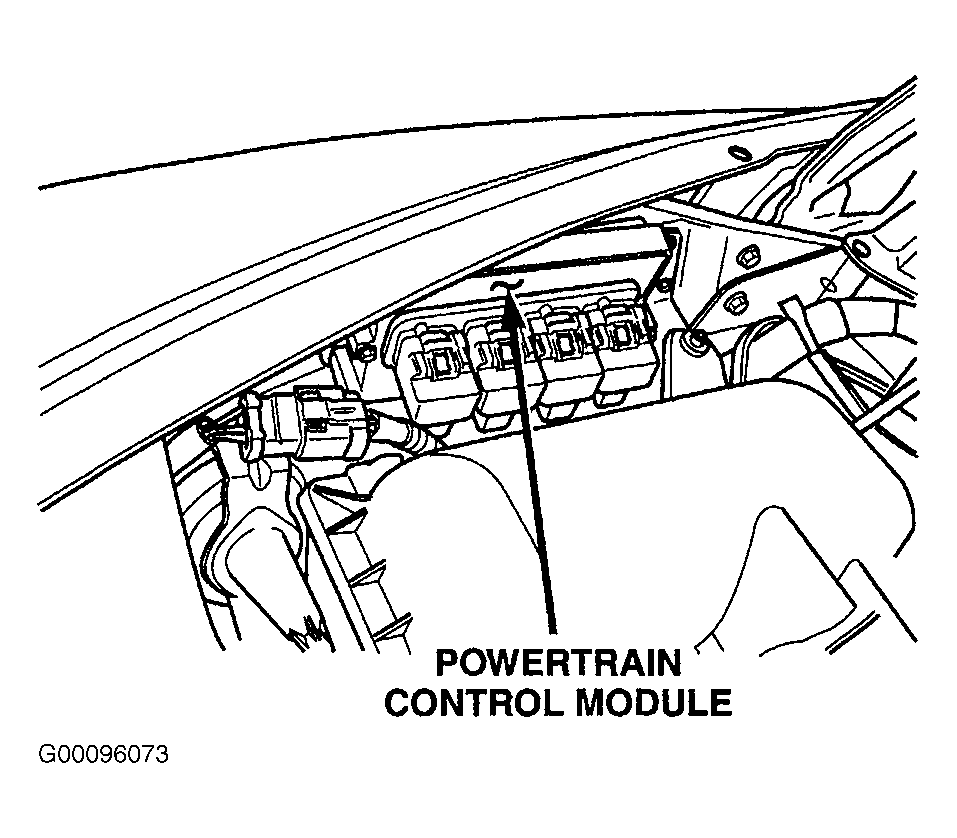

Fig 2: Locating Powertrain Control Module & Connectors (Except NGC)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Locating Powertrain Control Module (NGC)

Courtesy of DAIMLERCHRYSLER CORP.
