Fog Lamp Unit: Installation

  1. Position the fog lamp in the bumper.

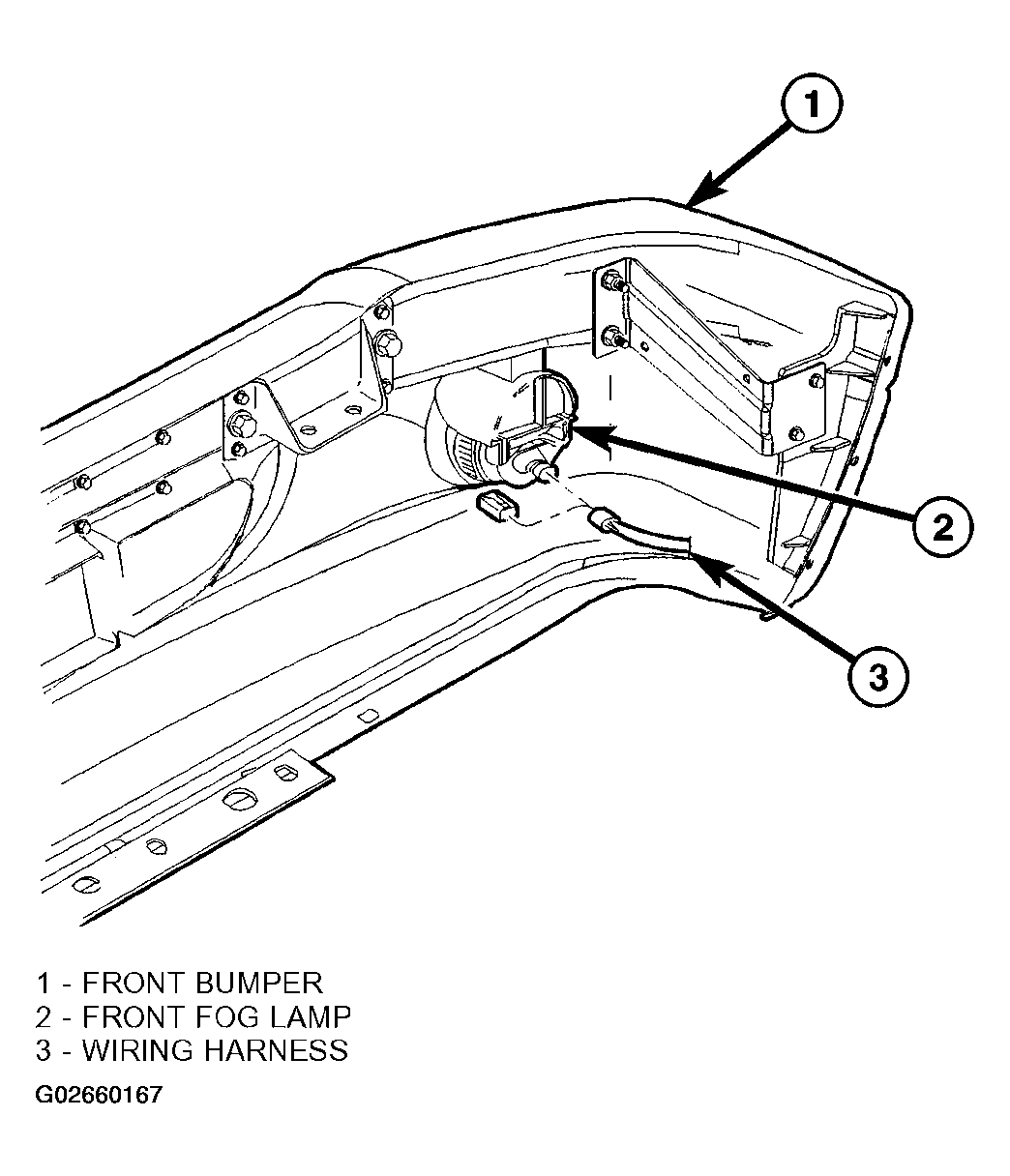

  2. Install the bolts attaching the fog lamp to the bumper (Figure ).
  3. Connect the fog lamp harness connector.
  4. Check for proper operation and beam alignment (Refer to FOG LAMP UNIT - ADJUSTMENTS  ).
  5. Connect the battery negative cable.
