Adjustments- Fog Lamp

Prepare an alignment screen. (Refer to HEADLAMP UNIT - ADJUSTMENTS  ). A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp centerline and straight ahead. Rotate the adjustment screw to adjust beam height.

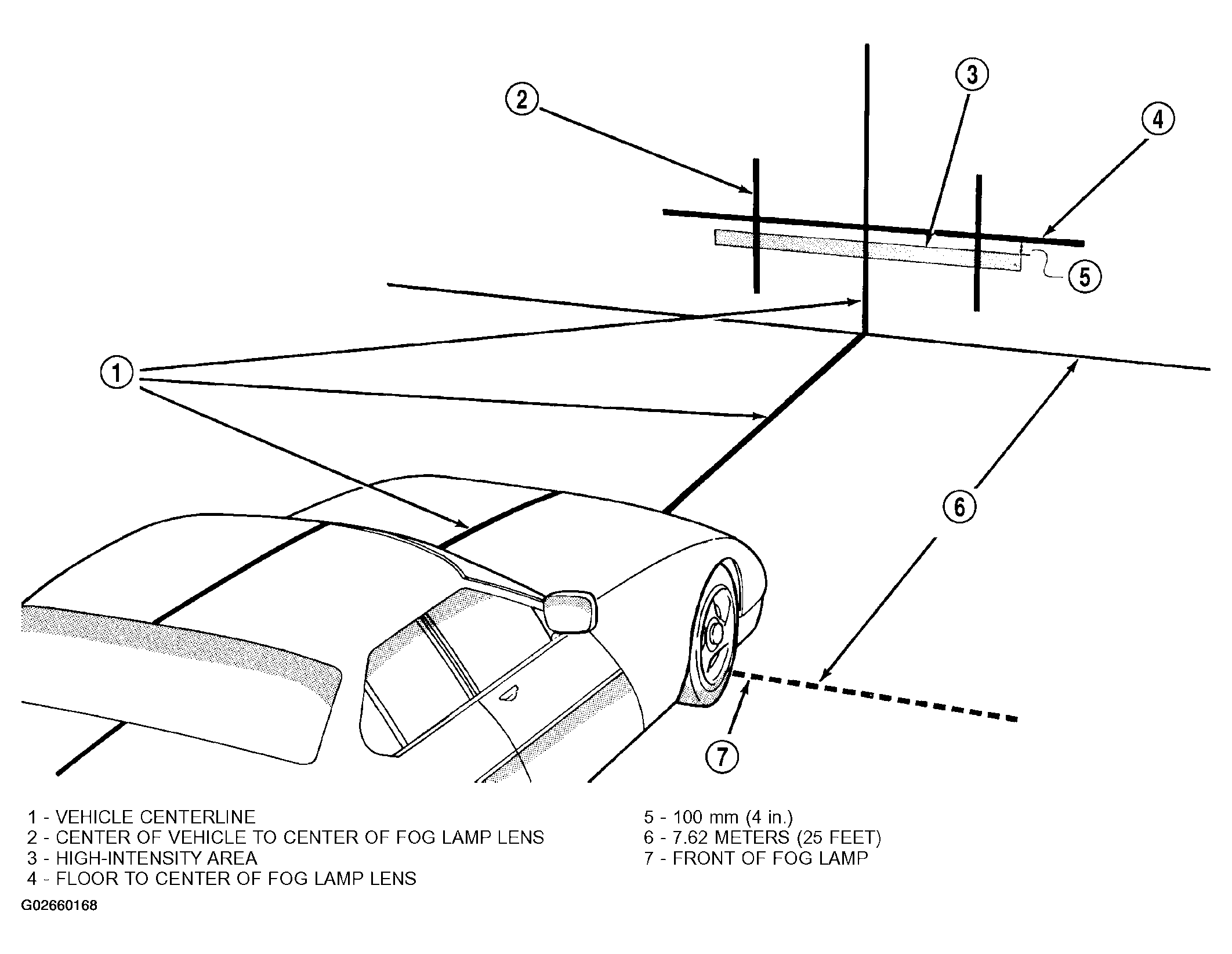

Fig 1: Aligning Fog Lamp

Courtesy of DAIMLERCHRYSLER CORP.

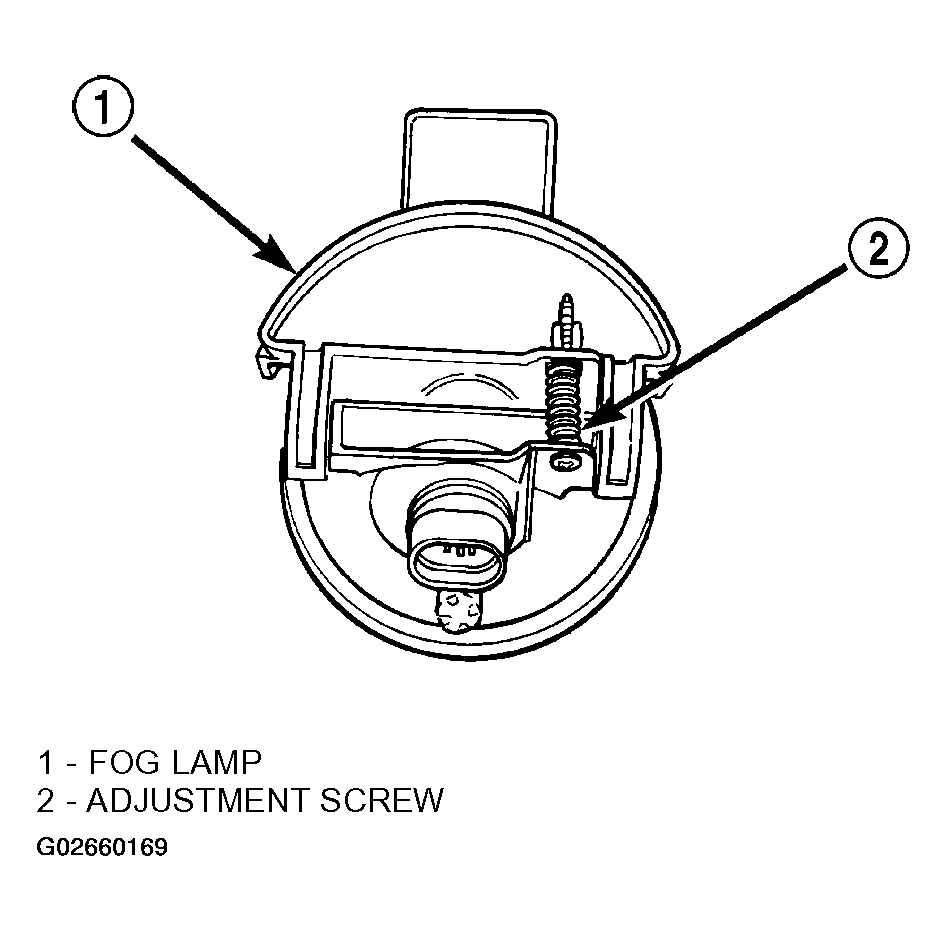

Fig 2: Identifying Fog Lamp Adjusting Screw

Courtesy of DAIMLERCHRYSLER CORP.
