Seal, Output Shaft: Installation: Front

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

Use the (special tool #10174, Installer, Seal, Rear Output) to install the front output shaft seal into the front case half.
Install the input shaft assembly (1) into the front case half (2).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The output shaft sprocket is pressed onto the output shaft.

NOTE:
If the snap ring (1) is temporarily installed too close to the top of the output shaft, it might not be possible to install it into the bottom groove on the output shaft after the output shaft sprocket is pressed onto the output shaft.
Temporarily install the snap ring (1) approximately 3 mm (0.12 in.) above the groove (3) on the output shaft.
Install the output shaft sprocket, the drive chain and the drive sprocket as an assembly.

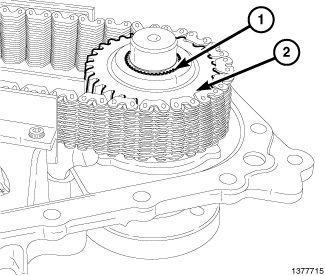

Courtesy of CHRYSLER GROUP, LLC

NOTE:
When the output shaft sprocket (2) is at the correct height, the top groove (1) on the output shaft will be visible.
Use the (special tool #8835-3, Receiver, Bushing) Bushing Receiver and a suitable arbor press to install the output shaft sprocket (2) onto the output shaft. Press the sprocket until the top groove (1) on the output shaft is visible.

Courtesy of CHRYSLER GROUP, LLC
Press the output shaft upward with the output shaft flange, then install the snap ring (1) into the groove (3) on the output shaft.

Courtesy of CHRYSLER GROUP, LLC
Install the thrust washer (1) onto the input shaft (2).

Courtesy of CHRYSLER GROUP, LLC
Install the clutch assembly (1) onto the input shaft (2).

Courtesy of CHRYSLER GROUP, LLC
Install the snap ring (1) onto the input shaft (2).

Courtesy of CHRYSLER GROUP, LLC
Install the wave spring (1) onto the input shaft.

Courtesy of CHRYSLER GROUP, LLC
Install the apply cam (2), and the ball bearings (1).

Courtesy of CHRYSLER GROUP, LLC
Install the clutch rotor (1) onto the input shaft.

Courtesy of CHRYSLER GROUP, LLC
Install the bearing (1) onto the input shaft.

Courtesy of CHRYSLER GROUP, LLC
Install the spacer (1).

Courtesy of CHRYSLER GROUP, LLC
Apply a bead of Loctite® 598 HB to the front case half sealing surface.
Install the rear transfer case half (1) and bolts and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install the rear output flange (1).

Courtesy of CHRYSLER GROUP, LLC
Install a new outer rear output shaft seal (1).

Courtesy of CHRYSLER GROUP, LLC
Install the rear output flange washer (1).

Courtesy of CHRYSLER GROUP, LLC
Install the rear output flange nut.
Install the (special tool #6958, Wrench, Spanner) Spanner Wrench (1) onto the rear output flange (2) and tighten to the proper specification
Refer to TECHNICAL SPECIFICATIONS .
Install the transfer case. Refer to INSTALLATION .
