Fascia, Front: Removal

Courtesy of CHRYSLER GROUP, LLC

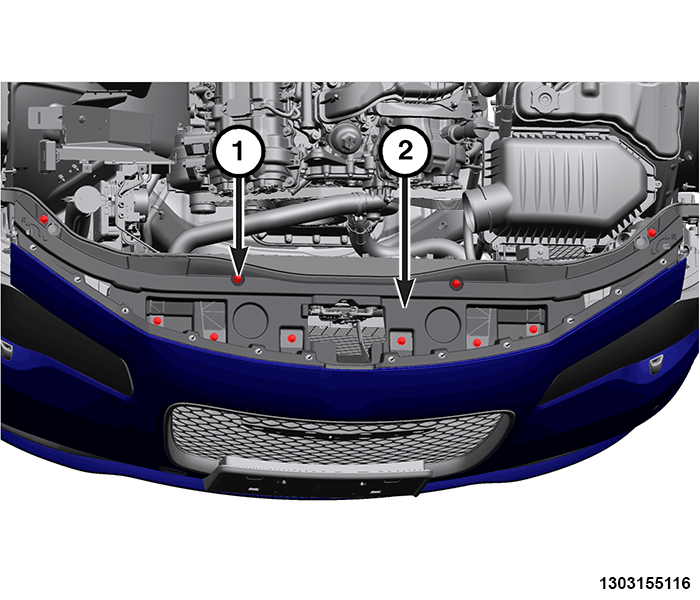

Remove the ten upper radiator fasteners (1).
Raise and support the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Remove the engine belly pan. Refer to BELLY PAN, REMOVAL .
Position the front wheelhouse splash shields aside. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

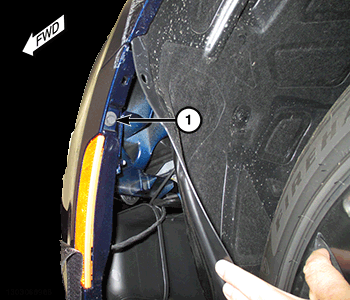

Remove the screws (1) from bolt sides.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the marker light electrical connectors (1).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the fog lamps (1), if equipped.

Courtesy of CHRYSLER GROUP, LLC

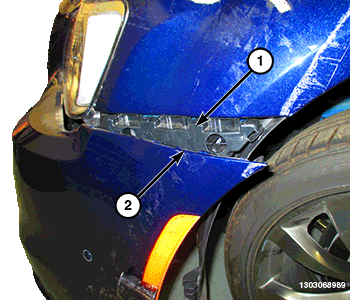

Pull the sides of the front fascia (2) to disengage the retainers (1).

Courtesy of CHRYSLER GROUP, LLC

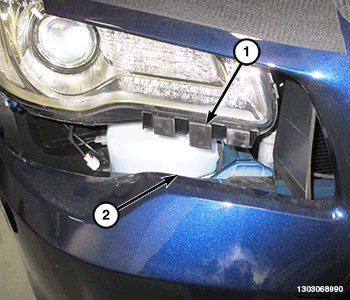

Separate the fascia (2) from the support clips (1) under the headlight assemblies.

Courtesy of CHRYSLER GROUP, LLC

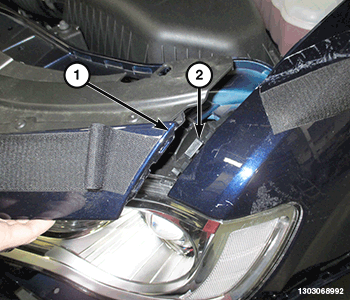

Separate the upper side fascia (1) from the fender support clips (2) and remove the fascia.
