Belly Pan: Removal
NOTE:
Base model shown in illustration, SRT models similar.
- Raise and support the vehicle.

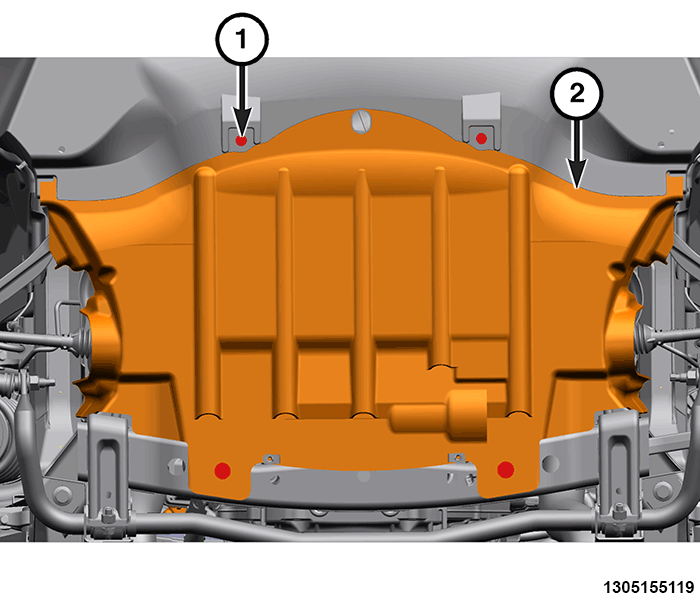

- Remove the four fasteners (1) that secure the rear belly pan (2) to the underside of the vehicle.
- Pull the rear belly pan (2) rearward out of the from the front belly pan to remove from the vehicle.

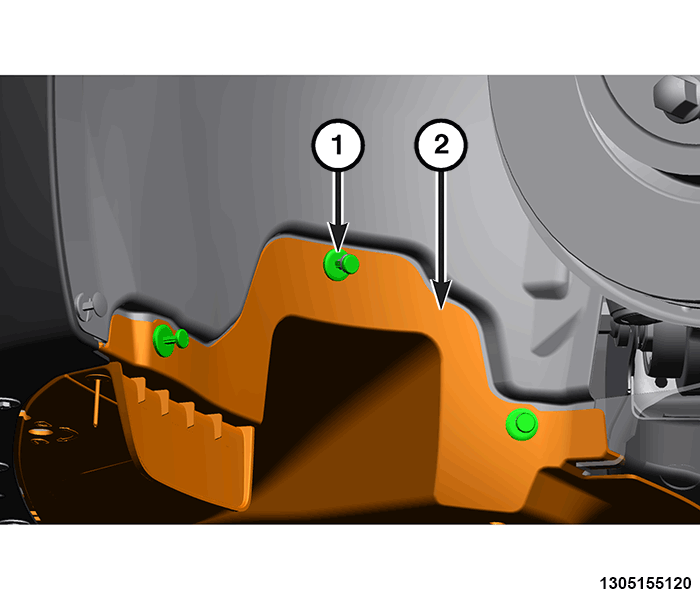

- Remove the three fasteners (1) that secure the front belly pan (2) to the underside of the vehicle's wheelhouse inner. Repeat for the other side.

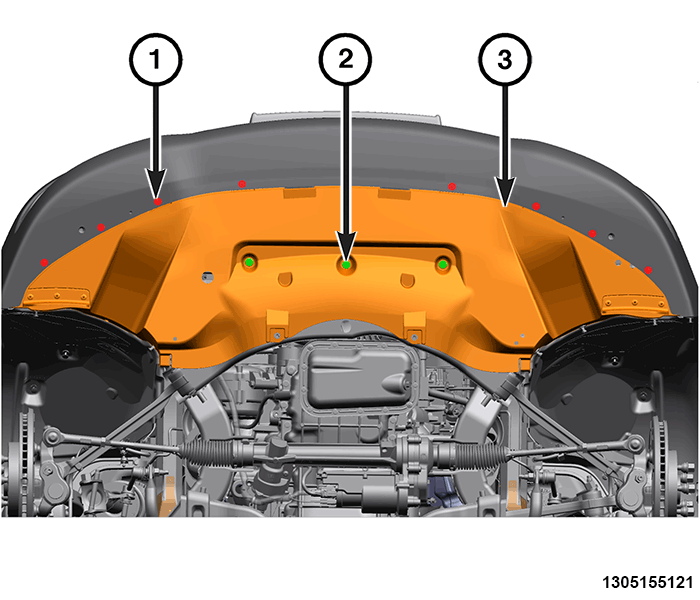

- Remove the eight screws (1) that secure the front belly pan (3) to the underside of the vehicle's front fascia.
- Remove the three push pin fasteners (2) that secure the front belly pan (2) to the underside of the vehicle's lower crossmember.
- Remove the front belly pan (2) from the underside of the vehicle.
