Lamp, Fog: Removal: Premium

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the front belly pan from the underbody. Refer to BELLY PAN, REMOVAL .
    GC0192528Courtesy of CHRYSLER GROUP, LLC
  4. Reach behind the front fascia to access and disconnect the front fascia wire harness connector (1) from the front outboard fog lamp (2).

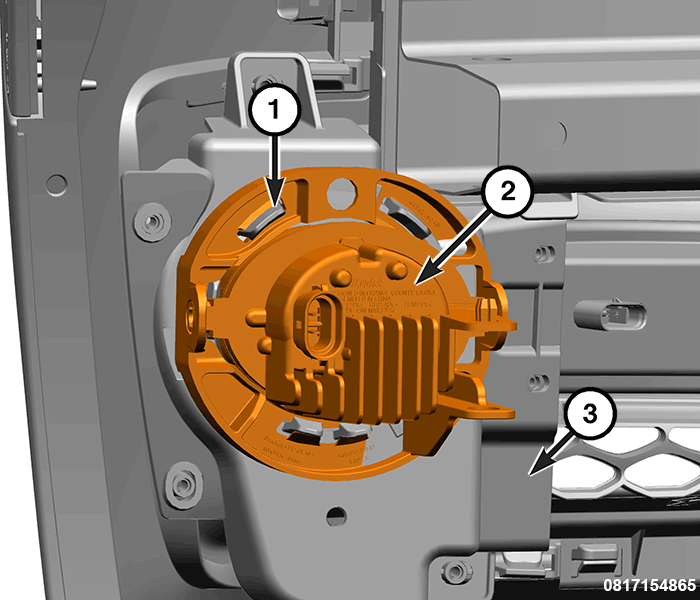

    GC0192525Courtesy of CHRYSLER GROUP, LLC
  5. Release the locking tabs (1) that secure the front outboard fog lamp fascia (3).
  6. Remove the front fog lamp unit from the back of the fascia.
