Lamp, Fog: Removal: Base

  1. Disconnect and isolate the battery negative cable.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the front belly pan from the underbody. Refer to BELLY PAN, REMOVAL .

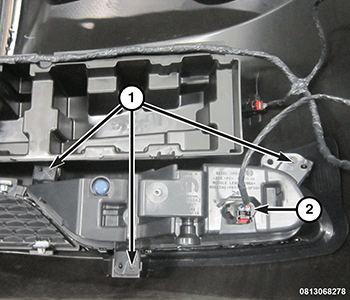

    GC0170873Courtesy of CHRYSLER GROUP, LLC
  4. Reach behind the front fascia to access and disconnect the headlight and dash wire harness connector from the front fog lamp bulb connector receptacle (2).
  5. Remove the fasteners (2) the secure the fog lamp housing to the fascia.
  6. Remove the front fog lamp unit from the back of the fascia.
