Indicators, Instrument Cluster: Description
The Instrument Panel Cluster (IPC) for this vehicle has provisions for up to 29 International Control and Display Symbol icon indicators and 2 analog gauges, that are all controlled by the IPC electronic circuitry and standard on all models. Refer to GAUGE PACK, INSTRUMENT CLUSTER, DESCRIPTION . Some of the indicators are automatically configured when the IPC is connected to the vehicle's electrical system for compatibility with certain optional equipment or equipment required for regulatory purposes in certain markets. While each IPC may have provisions for indicators to support every available option, the configurable indicators will not function in vehicles that do not have the equipment that an indicator supports.
Each indicator in the IPC, except those located within a VFD unit, is illuminated by a dedicated Light Emitting Diode (LED) that is soldered onto the electronic circuit board. IPC illumination is accomplished by several dimmable LED units, which illuminate each of the gauge dial faces for visibility when the exterior lighting is turned ON. These LED units as well as the IPC assembly are serviced only as a complete unit with the instrument cluster and, if damaged or ineffective, the entire instrument cluster assembly must be replaced. The IPC lens and the hood and mask unit are the only components of the IPC assembly that can be serviced separately.

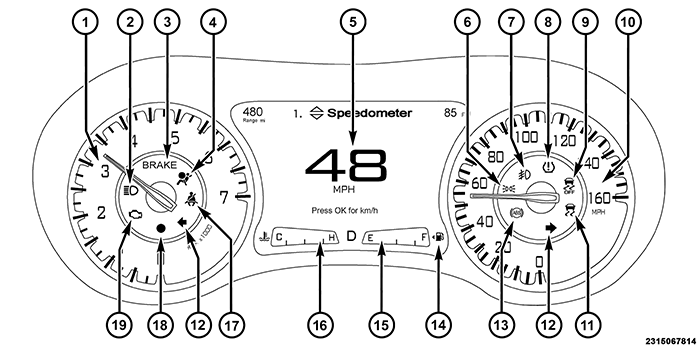

The IPC includes provisions for the following indicators:
- High Beam Indicator (2)
- Brake Warning Indicator (3)
- Airbag Warning Indicator (4)
- Park/Headlight ON Indicator (6)
- Front Fog Lamp Indicator (7) - with optional front fog lamps only
- Tire Pressure Monitor (TPM) Indicator (8)
- Electronic Stability Control (ESC) OFF Indicator (9)
- Electronic Stability Control (ESC) System Activation/Malfunction Indicator (11)
- Turn Signal (Right and Left) Indicators (12)
- Antilock Brake System (ABS) Indicator (13)
- Seat Belt Indicator (17)
- Vehicle Security Indicator (18)
- Malfunction Indicator Lamp (MIL) (19)
- All Wheel Drive (AWD) Indicator (5)
- Change Oil Indicator (5) - textual message in EVIC display
- Battery Voltage Indicator (5) - in the EVIC display
- Cruise Indicator (5) - in the EVIC display
- Engine Coolant Temperature Indicator (5) - in the EVIC display
- Gear Selector Indicator (5) - in the EVIC display
- Low Fuel Indicator (5) - in the EVIC display
- Oil Life Indicator (5) - in the EVIC display
- Oil Pressure Indicator (5) - in the EVIC display
- Oil Temperature Indicator (5) - in the EVIC display
- Gas Cap Indicator (14) - in the EVIC display
The IPC also includes the following Liquid Crystal Display (LCD) units :
- Electronic Vehicle Information Center (EVIC) Display Refer to CENTER, ELECTRONIC VEHICLE INFORMATION, DESCRIPTION .
For more information on the International Control and Display Symbol icons. Refer to INTERNATIONAL VEHICLE CONTROL AND DISPLAY SYMBOLS, DESCRIPTION .
