Seat Back, Front: Removal

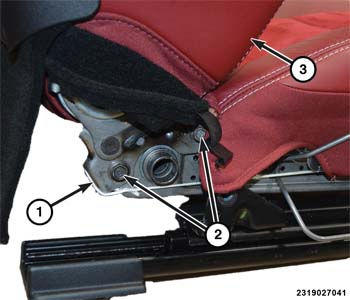

GC0158213Courtesy of CHRYSLER GROUP, LLC
  1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to SEATS, FRONT, WARNING .
  2. Remove the front seat. Refer to SEAT, FRONT, REMOVAL .
  3. Remove the front seat back panel. Refer to PANEL, SEAT BACK, FRONT, REMOVAL .
  4. Remove the side shields. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL .
  5. From under the seat disconnect the wiring connector from the seat back.
  6. Unhook the seat cushion trim string (1) and remove the seat back fasteners (2) from both sides.
