Seat, Front: Removal

WARNING:

Review all warnings and cautions prior to servicing the seats. Failure to follow these instructions may result in serious or fatal injury.

WARNING:

Handled seats carefully when servicing. Be careful not to drop seats on the workbench or floor. If dropped, the seat position sensor may become damaged and inoperative. Failure to follow these instructions may result in serious or fatal injury.

GC0095968Courtesy of CHRYSLER GROUP, LLC
  1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to SEATS, FRONT, WARNING .
  2. Remove the headrest.
  3. Disconnect and isolate the negative battery cable, if equipped with manual seats.
  4. Move the front seat to the full forward position.

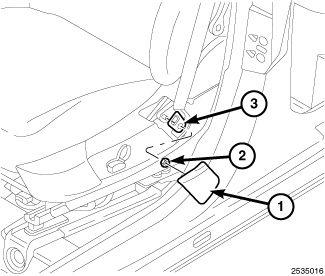

  5. Remove the trim cover (1) then the fasteners (2) and the lower seat belt anchor (3).
    GC0162401Courtesy of CHRYSLER GROUP, LLC

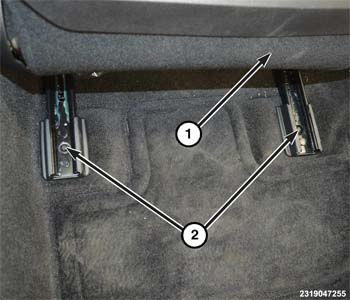

  6. Remove the rear fasteners (2).
    GC0162387Courtesy of CHRYSLER GROUP, LLC
  7. Move the seat full rearward.
  8. Disconnect and isolate the negative battery cable, if equipped with power seats.

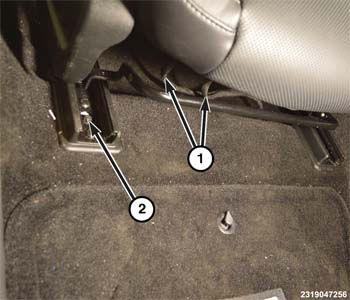

  9. Remove the front fasteners (2).
  10. Tip the seat rearward and disconnect the wire harness connectors (1) from under the seat.
  11. Remove the seat from the vehicle.
