Bracket, Instrument Panel, Center Support: Removal

  1. Remove the instrument panel cover. Refer to COVER, INSTRUMENT PANEL, REMOVAL .

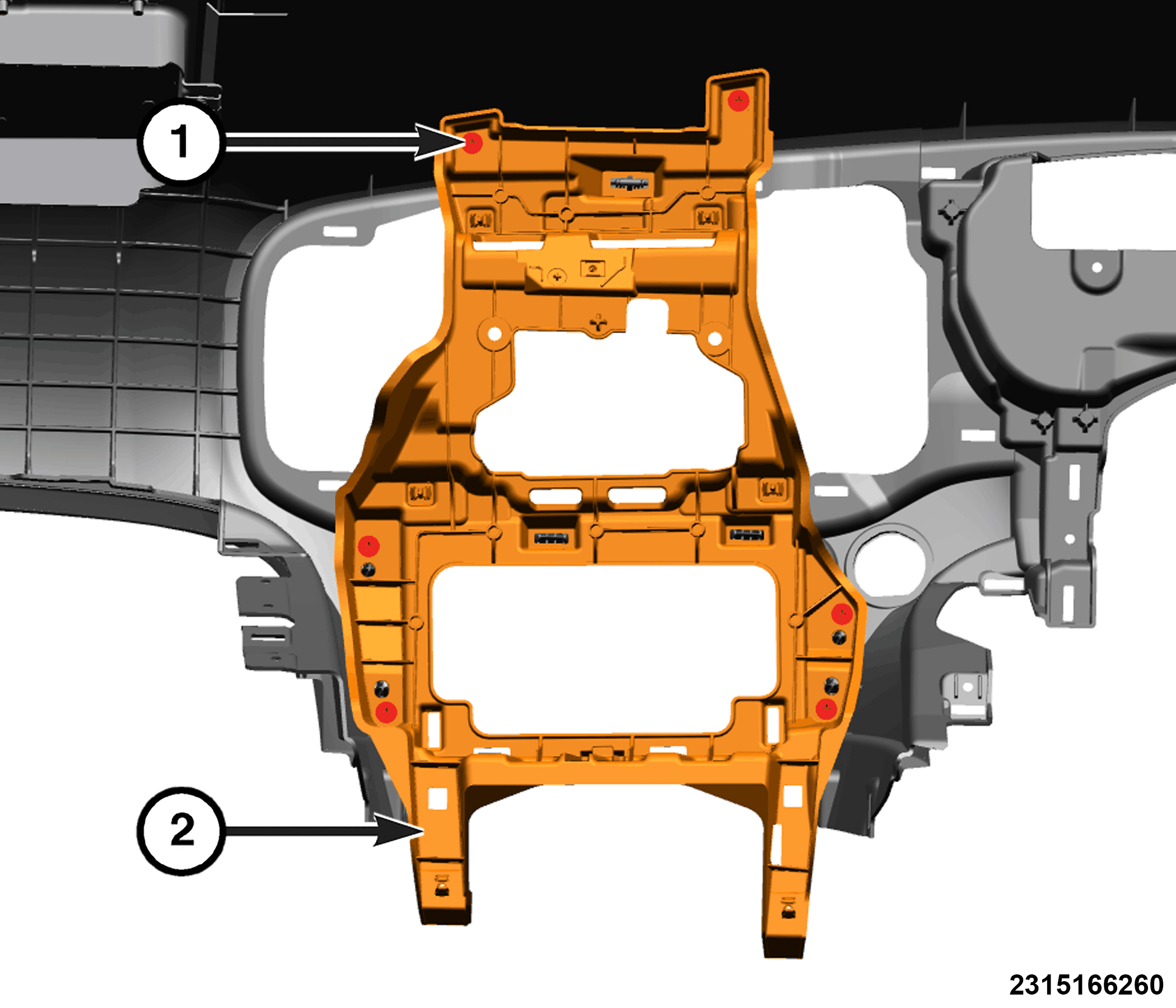

    GC0192436Courtesy of CHRYSLER GROUP, LLC
  2. Remove the fasteners (1). Remove the center stack support bracket (2) from the instrument panel cover.
