Cover, Instrument Panel: Removal

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

WARNING:

To avoid serious or fatal injury when removing a deployed airbag, rubber gloves, eye protection, and a long-sleeved shirt should be worn. There may be deposits on the airbag unit and other interior surfaces. In large doses, these deposits may cause irritation to the skin and eyes.

WARNING:

To avoid serious or fatal injury, use extreme care to prevent any foreign material from entering the passenger airbag, or becoming entrapped between the passenger airbag cushion and the instrument panel top pad. Failure to observe this warning could result in occupant injuries upon airbag deployment.

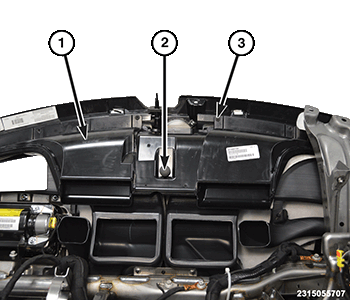

GC0170708Courtesy of CHRYSLER GROUP, LLC
  1. Remove the instrument panel from the vehicle. Refer to PANEL, INSTRUMENT, REMOVAL .
  2. Remove the screws (3) and the push fastener (2), then the defroster duct (1).

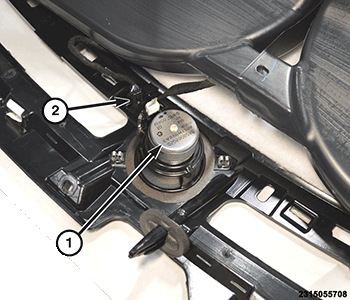

    GC0170816Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect and remove the instrument panel speakers (1).
  4. Disconnect and remove the sun sensor (2).

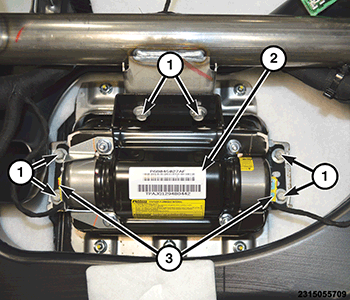

    GC0170700Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the passenger airbag wire harness connectors (3).
  6. Remove the six bolts (1) and the passenger airbag (2).

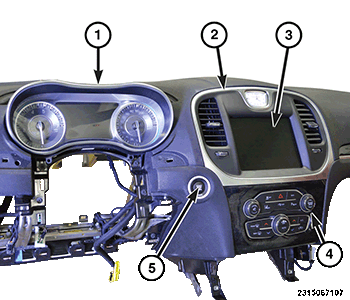

    GC0170856Courtesy of CHRYSLER GROUP, LLC
  7. Remove the screws and the instrument cluster (1).
  8. By hand remove the Integrated Center Stack (ICS) (4).
  9. Using a trim stick or equivalent, remove the instrument panel center bezel (2).
  10. Remove the screws and the radio (3).
  11. Disconnect the wire harness connector from the keyless ignition node (5).

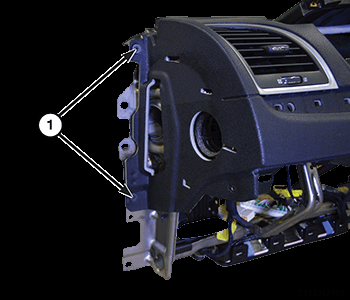

    GC0170924Courtesy of CHRYSLER GROUP, LLC
  12. Remove the two screws (1) on the left side of the instrument panel.

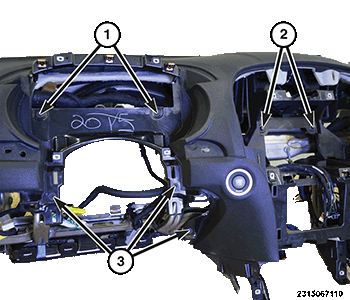

    GC0170896Courtesy of CHRYSLER GROUP, LLC
  13. Remove the two screws (1) located behind the instrument cluster.
  14. Remove the three screws (3) located at the steering column opening.
  15. Remove the two bolts (2) located behind the radio.

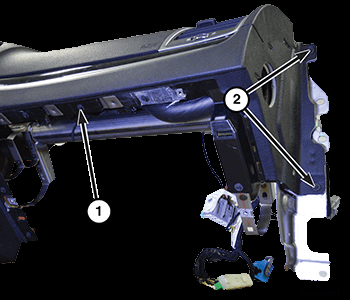

    GC0170891Courtesy of CHRYSLER GROUP, LLC
  16. Remove the two screws (2) on the right side of the instrument panel.
  17. Remove the seven screws (1) attaching the instrument panel cover to the structure in the glove box area.
  18. Remove the instrument panel cover from the structure.
  19. Remove the right side air outlet from the instrument panel cover. Refer to OUTLET, AIR, REMOVAL .
  20. Remove the keyless ignition node from the instrument panel cover. Refer to MODULE, KEYLESS IGNITION NODE (KIN), REMOVAL .
