Kneeblocker - Removal







REMOVAL






1. Remove steering column cover. Steering Column Opening Cover - Removal

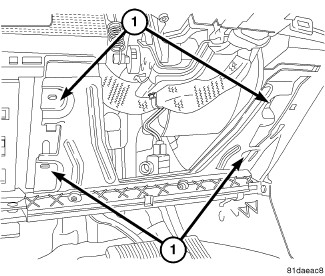

2. Remove four screws (1) fastening knee bolster to instrument panel.

3. Remove knee bolster from instrument panel.
