Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record all Freeze frame data.
  NOTE:
  Starting the vehicle under extreme cold conditions may cause this DTC to set. Check the ambient and/or coolant temperature in freeze frame data to see if this is the possible cause.
3. With the scan tool, erase DTCs.
4. Turn the ignition off for 75 seconds.
5. Turn the ignition on.
6. With the scan tool, read DTCs.
  Did the DTC reset?

  Yes
  - Go To 2.
  No
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT CONDITION - 6.7L .
CHECK THE (K372) EXHAUST GAS TEMPERATURE 1/2 SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

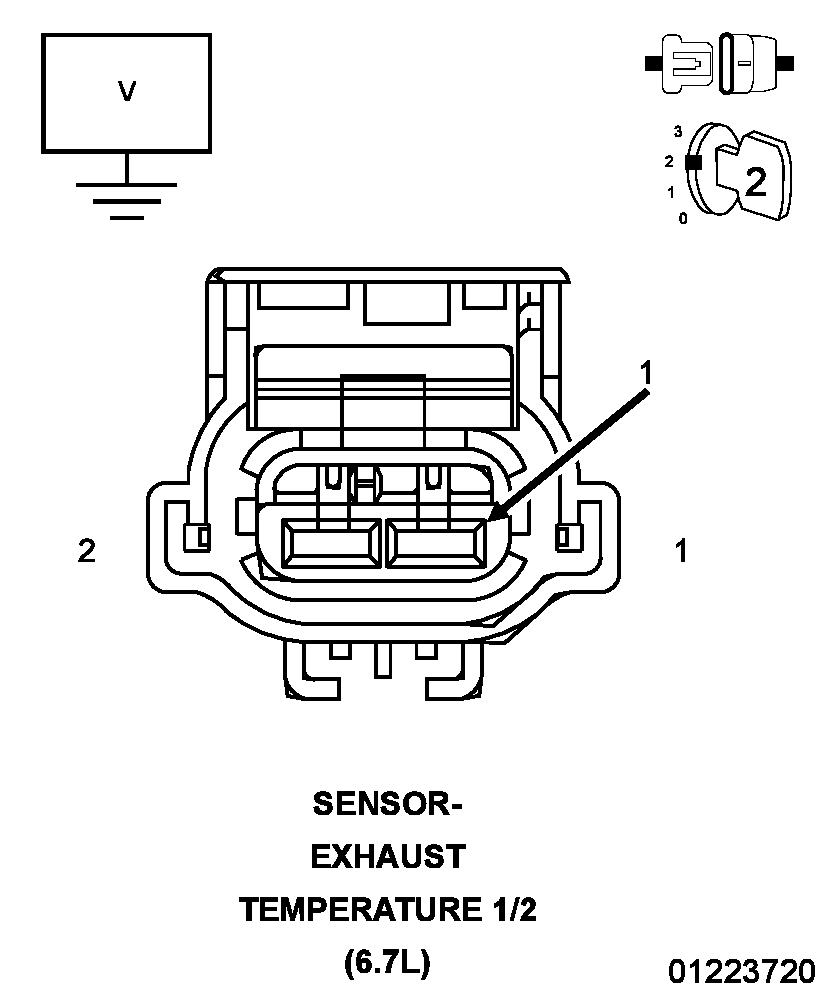

Fig 1: Exhaust Gas Temperature Sensor 1/2 Connector Pin ID
Courtesy of CHRYSLER LLC
1. Disconnect the Exhaust Temperature Sensor 1/2 harness connector.
  NOTE:
  Check connectors - Clean/repair as necessary.
2. Measure the voltage on the (K372) Exhaust Gas Temperature Sensor 1/2 Signal circuit at the Exhaust Temperature Sensor 1/2 harness connector.
  Is the voltage reading above 5.1 volts?

  Yes
  - Repair the (K372) Exhaust Gas Temperature Sensor 1/2 Signal circuit for a short to voltage.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Go To 3.
CHECK THE (K372) EXHAUST GAS TEMPERATURE 1/2 SIGNAL CIRCUIT FOR AN OPEN/HIGH RESISTANCE

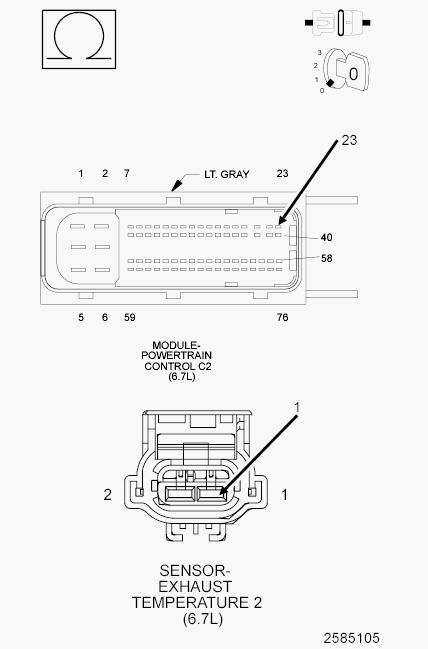

Fig 2: Checking Exhaust Gas Temperature 1/2 Signal Circuit For An Open Or High Resistance
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the PCM C2 harness connector.
3. Measure the resistance of the (K372) Exhaust Gas Temperature Sensor 1/2 Signal circuit between the Exhaust Gas Temperature Sensor 1/2 harness connector and the PCM C2 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 4.
  No
  - Repair the (K372) Exhaust Temperature 1/2 Signal circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
CHECK THE (K900) SENSOR GROUND CIRCUIT FOR AN OPEN/HIGH RESISTANCE

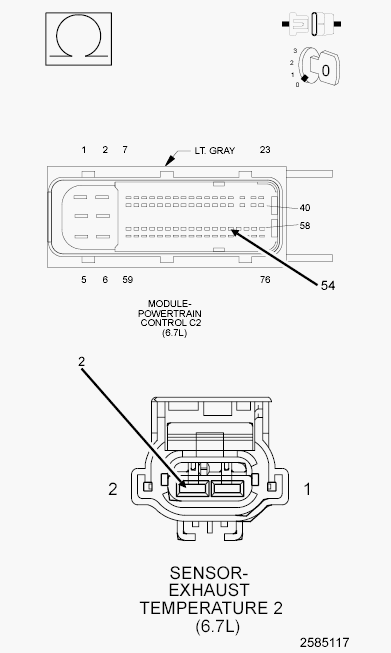

Fig 3: Measuring Resistance Of Sensor Ground Circuit Between Exhaust Gas Temperature Sensor 1/2 Harness Connector & PCM C2 Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K900) Sensor Ground circuit between the Exhaust Gas Temperature Sensor 1/2 harness connector and the PCM C2 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 5.
  No
  - Repair the (K900) Sensor ground circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
CHECK THE EXHAUST GAS TEMPERATURE SENSOR
1. Turn the ignition on.
2. While monitoring the scan tool, connect a jumper across the Exhaust Gas Temperature Sensor 1/2 harness connector for at least five seconds.
  Does the DTC P2032 become active?

  Yes
  - Replace the Exhaust Gas Temperature Sensor 1/2.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Replace the Powertrain Control Module in accordance with the service information.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
