WAIT-TO-START LAMP DOES NOT COME ON
1. Turn the ignition off.
2. While watching the Wait-To-Start lamp, turn the ignition key on.
  Did the Wait-To-Start lamp light?

  Yes
  - Go To 2.
  No
  - Go To 3.
WAIT-TO-START LAMP STAYS ON ALL THE TIME
1. Turn the ignition off.
2. While watching the Wait-To-Start lamp, turn the ignition key on.
  Does the Wait-To-Start lamp stay on all the time?

  Yes
  - Go To 3.
  No
  - Wait-To-Start Lamp operating normally. Test passed.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
CHECK THE FUSED IGNITION SWITCH OUTPUT CIRCUIT FOR AN OPEN/HIGH RESISTANCE

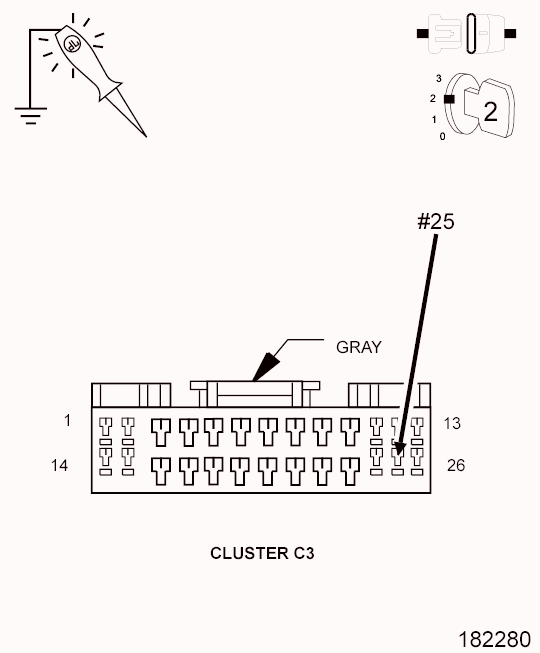

Fig 1: Locating Fused Ignition Switch Run/Start Circuit In IP Cluster C3 (Gray) Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Remove the cluster.
  NOTE:
  Check connectors - Clean/repair as necessary.
3. Turn the ignition on.
4. Using a 12-Volt test light, check the Fused Ignition Switch Run/Start circuit while the ignition is in the run/start position.
  Is the light illuminated and bright?

  Yes
  - Go To 4.
  No
  - Repair the Fused Ignition Switch Output circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
CHECK THE WAIT-TO-START LIGHT BULB
1. Remove and inspect the Wait-to-Start Bulb.
  Is the Bulb Ok?

  Yes
  - Test complete.
  No
  - Replace the Wait-to-Start Bulb in accordance with the service information.
  - Perform POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
