Diagnostic Test
WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- ACTIVE DTC NOTE:
If there are any 5-Volt supply DTCs present, repair those DTCs before proceeding.
- Turn the ignition on.
- With the scan tool, record all Freeze frame data.
- With the scan tool, erase DTCs.
- Turn the ignition off for 75 seconds.
- Start, or attempt to start the engine.
- With the scan tool, read DTCs.
Did the DTC reset?
Yes
- Go To 2.
No
- Perform the INTERMITTENT CONDITION - 6.7L diagnostic procedure. Refer to INTERMITTENT CONDITION - 6.7L .
- CHECK FOR PHYSICAL DAMAGE
- Turn the ignition off.
- Visually inspect the CKP Sensor, accessory belt, CKP Sensor connector, and the PCM C1 harness connector.
Is there any physical damage present?
Yes
- Repair or replace the CKP Sensor, accessory belt, or harness.
- Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
No
- Go To 3.
- CHECK THE (K24) SIGNAL CIRCUIT FOR AN OPEN/HIGH RESISTANCE
- Disconnect the PCM C1 harness connector.
- Disconnect the CKP Sensor harness connector.NOTE:
Check connectors - Clean/repair as necessary.
- Measure the resistance of the (K24) CKP Signal circuit between the PCM C1 harness connector and the CKP Sensor harness connector.
Is the resistance below 5.0 Ohms?
Yes
- Go To 4.
No
- Repair the (K24) CKP Signal circuit for an open or high resistance.
- Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
- CHECK THE (K824) 5-VOLT SUPPLY CIRCUIT FOR AN OPEN/HIGH RESISTANCE

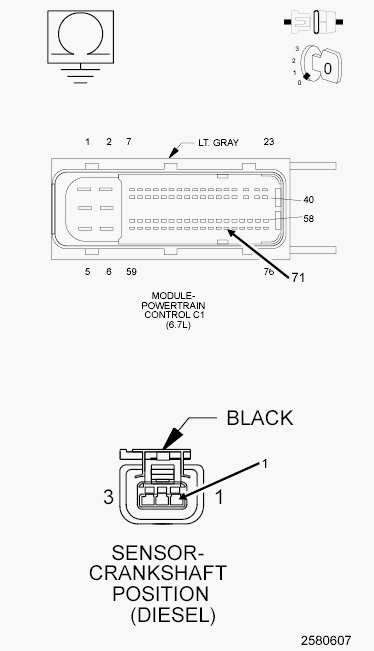

- Measure the resistance of the (K824) 5-Volt Supply circuit between the PCM C1 harness connector and the CKP Sensor harness connector.
Is the resistance below 5.0 Ohms?
Yes
- Go To 5.
No
- Repair the (K824) 5-Volt Supply circuit for an open or high resistance.
- Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .

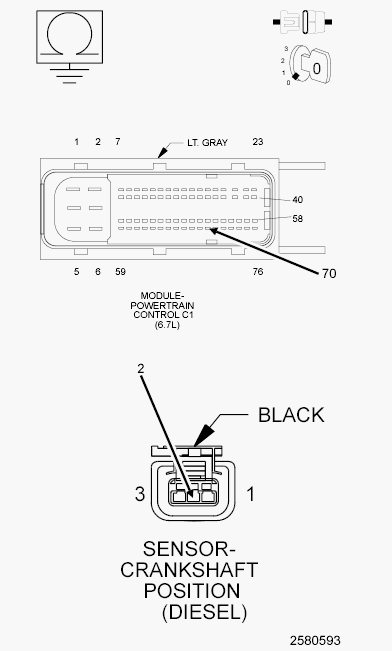

- Measure the resistance of the (K824) 5-Volt Supply circuit between the PCM C1 harness connector and the CKP Sensor harness connector.
- CHECK THE (K925) RETURN CIRCUIT FOR AN OPEN/HIGH RESISTANCE
- Measure the resistance of the (K925) CKP Return circuit between the PCM C1 harness connector and the CKP Sensor harness connector.
Is the resistance below 5.0 Ohms?
Yes
- Go To 6.
No
- Repair the (K925) CKP Return circuit for an open or high resistance.
- Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .

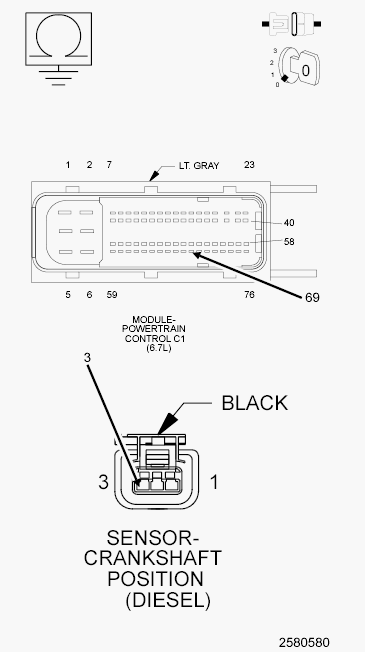

- Measure the resistance of the (K925) CKP Return circuit between the PCM C1 harness connector and the CKP Sensor harness connector.
- CHECK FOR THE (K24) SIGNAL CIRCUIT SHORTED TO THE (K925) RETURN CIRCUIT
- Measure the resistance between the (K24) CKP Signal circuit and the (K925) CKP Return circuit at the CKP Sensor harness connector.
Is the resistance below 10k Ohms?
Yes
- Repair the short between the (K24) CKP Signal circuit and the (K925) CKP Return circuit.
- Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
No
- Go To 7.

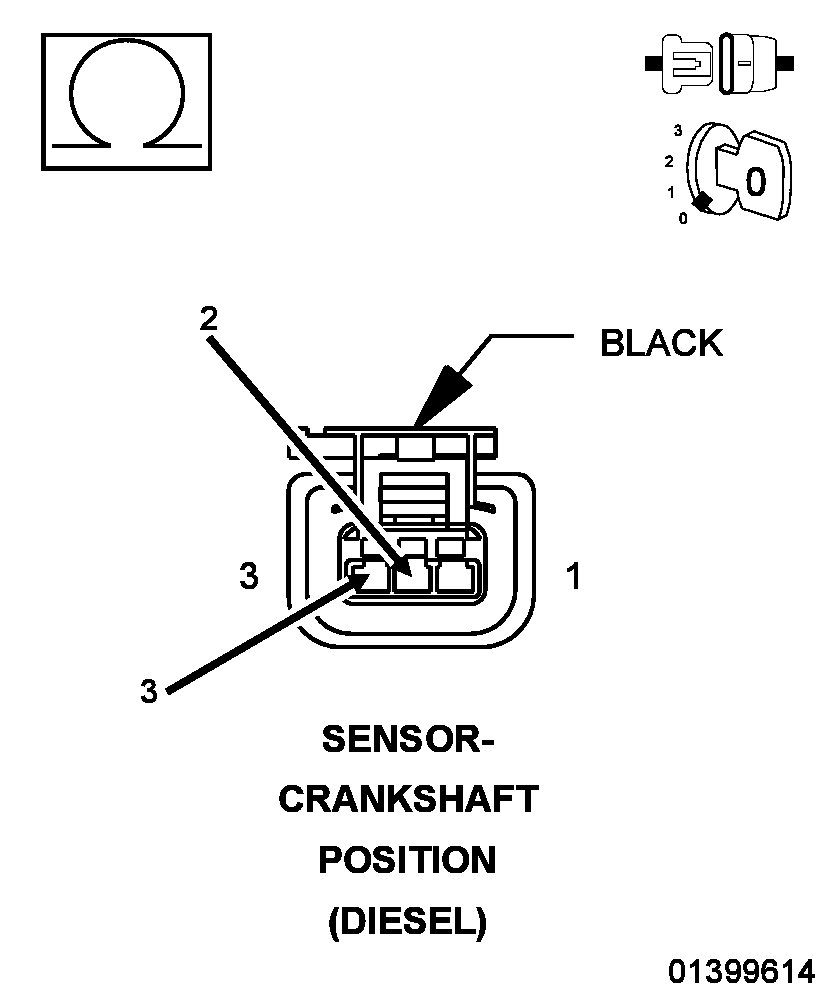

- Measure the resistance between the (K24) CKP Signal circuit and the (K925) CKP Return circuit at the CKP Sensor harness connector.
- CHECK FOR THE (K24) SIGNAL CIRCUIT SHORTED TO THE (K824) 5-VOLT SUPPLY CIRCUIT
- Measure the resistance between the (K24) CKP Signal circuit and the (K824) 5-Volt Supply circuit in the CKP Sensor harness connector.
Is the resistance below 10k Ohms?
Yes
- Repair the short between the (K24) CKP Signal circuit and the (K824) 5-Volt Supply circuit.
- Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
No
- Go To 8.

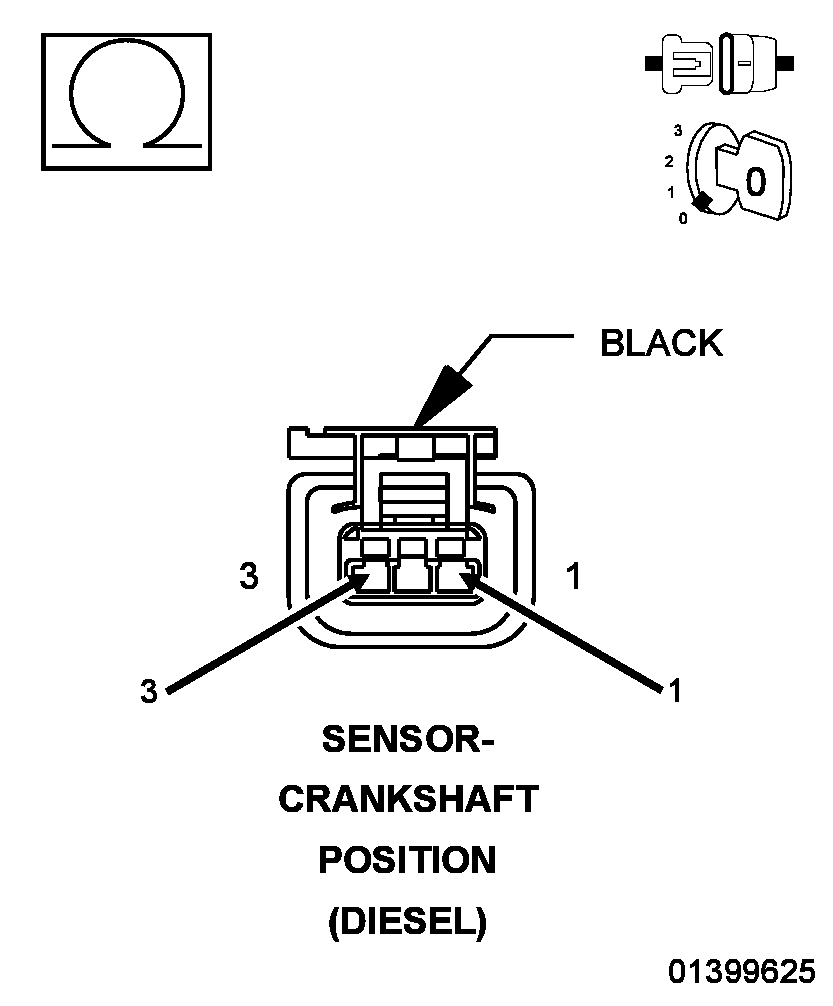

- Measure the resistance between the (K24) CKP Signal circuit and the (K824) 5-Volt Supply circuit in the CKP Sensor harness connector.
- CHECK THE (K24) SIGNAL CIRCUIT FOR A SHORT GROUND
- Measure the resistance between ground and the (K24) CKP Signal circuit at the CKP Sensor harness connector.
Is the resistance below 10k Ohms?
Yes
- Repair the (K24) CKP Signal circuit for a short to ground.
- Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
No
- Go To 9.

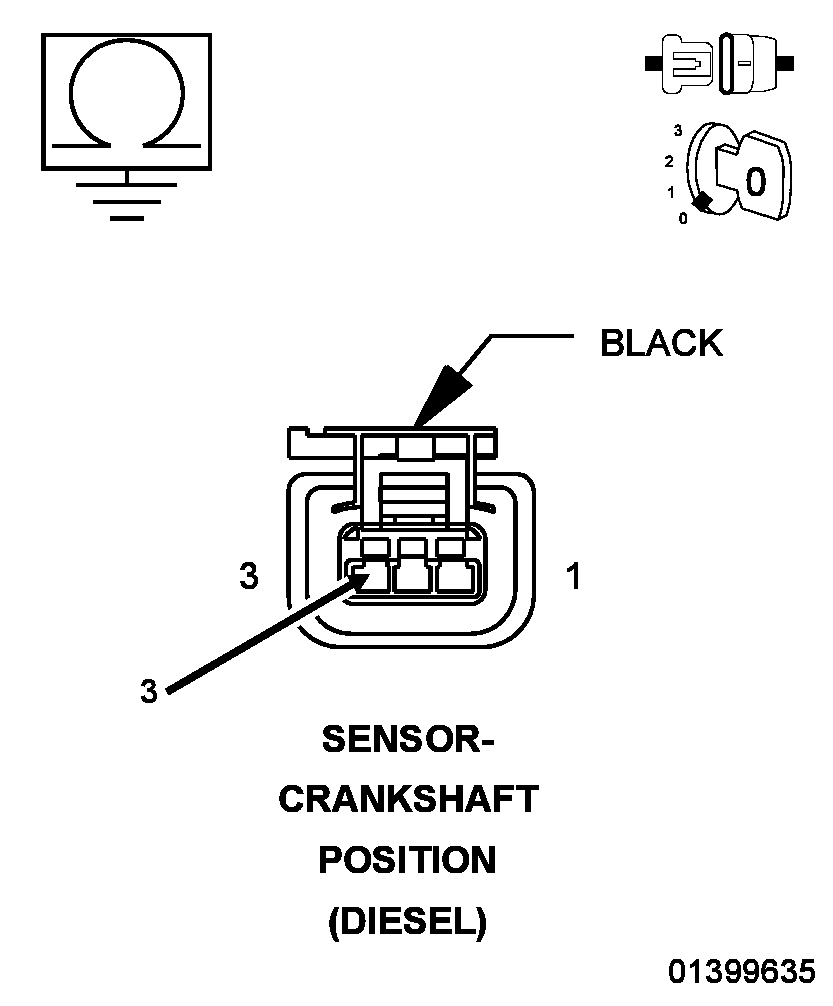

- Measure the resistance between ground and the (K24) CKP Signal circuit at the CKP Sensor harness connector.
- CHECK THE CKP SENSOR
- Measure the resistance between the (K824) 5-Volt Supply circuit and the (K24) CKP Signal circuit through the CKP Sensor.
Is the resistance between 900 and 1100 Ohms?
Yes
- Replace and program the Powertrain Control Module in accordance with the service information.
- Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
No
- Replace the CKP Sensor in accordance with the service information.
- Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
- Measure the resistance between the (K824) 5-Volt Supply circuit and the (K24) CKP Signal circuit through the CKP Sensor.
