Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record all Freeze frame data.
3. With the scan tool, erase DTCs.
4. Turn the ignition off for 75 seconds.
5. Start the engine and let idle for one minute.
6. With the scan tool, read DTCs.
  Did the DTC return?

  Yes
  - Go To 2.
  No
  - Perform the INTERMITTENT CONDITION - 6.7L diagnostic procedure. Refer to INTERMITTENT CONDITION - 6.7L .
CHECK THE (K674) EGR AIRFLOW CONTROL VALVE (-) CIRCUIT FOR AN OPEN/HIGH RESISTANCE

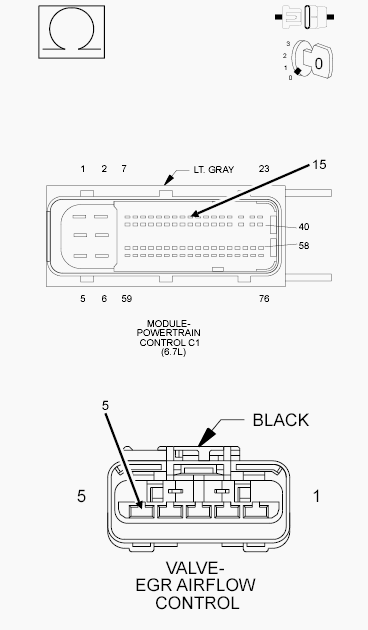

Fig 1: Checking EGR Airflow Control Valve (-) Circuit For Open Or High Resistance
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the PCM C1 harness connector.
3. Disconnect the EGR Airflow Control Valve harness connector.
4. Measure the resistance of the (K674) EGR Airflow Control Valve (-) circuit between the EGR Airflow Control Valve harness connector and the PCM C1 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 3.
  No
  - Repair the (K674) EGR Airflow Control Valve (-) circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
CHECK THE (K673) EGR AIRFLOW CONTROL VALVE (+) CIRCUIT FOR AN OPEN/HIGH RESISTANCE

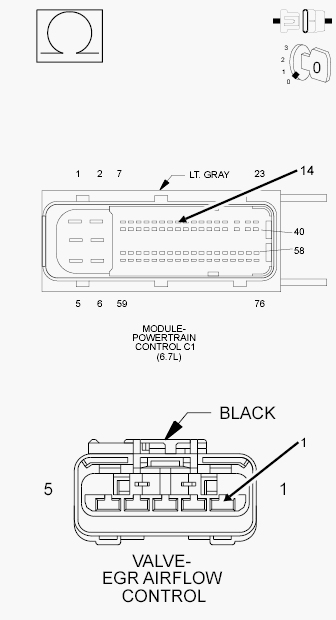

Fig 2: Checking EGR Airflow Control Valve (+) Circuit For Open Or High Resistance
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K673) EGR Airflow Control Valve Actuator (+) circuit between the EGR Airflow Control Valve harness connector and the PCM C1 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 4.
  No
  - Repair the (K673) EGR Airflow Control Valve Actuator (+) circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
EGR AIRFLOW CONTROL VALVE
1. Replace the EGR Airflow Control Valve in accordance with the Service Information.
2. Reconnect the EGR Airflow Control Valve harness connector.
3. Reconnect the PCM C1 harness connector.
4. Turn the ignition on.
5. With the scan tool, erase DTCs.
6. With the scan tool, read DTCs.
  Did the DTC return?

  Yes
  - Replace Powertrain Control Module in accordance with the Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Repair complete.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
