Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record all Freeze frame data.
3. With the scan tool, erase DTCs.
4. Turn the ignition off for 75 seconds.
5. Turn the ignition on.
6. With the scan tool, read DTCs.
  Did the DTC reset?

  Yes
  - Go To 2.
  No
  - Perform the INTERMITTENT CONDITION - 6.7L diagnostic procedure. Refer to INTERMITTENT CONDITION - 6.7L .
CHECK THE (K21) INTAKE MANIFOLD TEMPERATURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

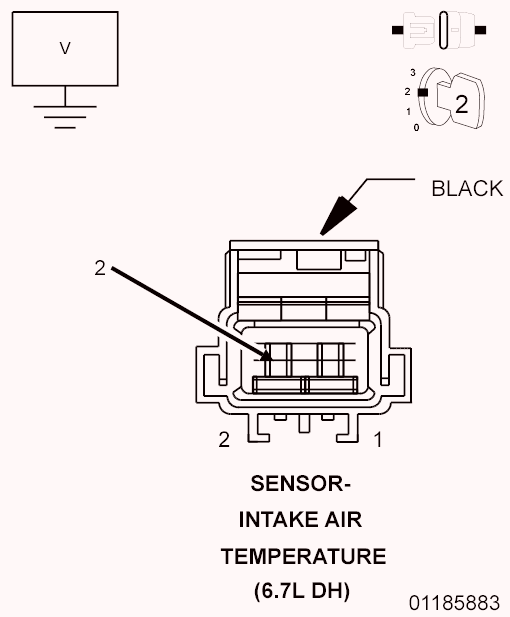

Fig 1: Intake Manifold Temperature Sensor Connector Pin ID
Courtesy of CHRYSLER LLC
1. Ignition on.
2. Disconnect the Intake Manifold Temperature Sensor harness connector.
  NOTE:
  Check connectors - Clean/repair as necessary.
3. With a voltmeter connected to ground, measure the voltage of the (K21) Intake Manifold Temperature Sensor Signal circuit at the Intake Manifold Temperature Sensor harness connector.
  Is the voltage above 5.1 Volts?

  Yes
  - Repair the (K21) Intake Manifold Temperature Sensor Signal circuit for a short to voltage.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Go To 3.
CHECK THE INTAKE AIR TEMPERATURE SENSOR
1. Turn the ignition off.
2. Measure the resistance across the terminals of the Intake Manifold Temperature Sensor.
  Is the resistance between 300 and 90k Ohms?

  Yes
  - Go To 4.
  No
  - Replace the Intake Manifold Temperature Sensor in accordance with the service information.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
CHECK THE (K21) INTAKE MANIFOLD TEMPERATURE SENSOR SIGNAL CIRCUIT FOR AN OPEN/HIGH RESISTANCE

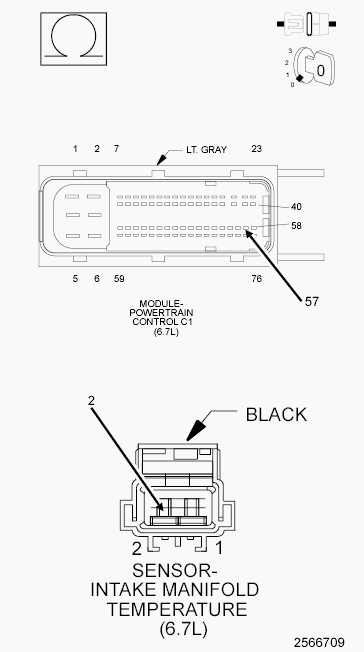

Fig 2: Checking Intake Manifold Temperature Sensor Signal Circuit For Open Or High Resistance
Courtesy of CHRYSLER LLC
1. Disconnect the PCM C1 harness connector.
  NOTE:
  Check connectors - Clean/repair as necessary.
2. Measure the resistance of the (K21) Intake Manifold Temperature Sensor Signal circuit between the Intake Manifold Temperature Sensor harness connector and the PCM C1 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 5.
  No
  - Repair the (K21) Intake Manifold Temperature Sensor Signal circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
CHECK THE (K914) INTAKE MANIFOLD TEMPERATURE SENSOR RETURN CIRCUIT FOR AN OPEN/HIGH RESISTANCE

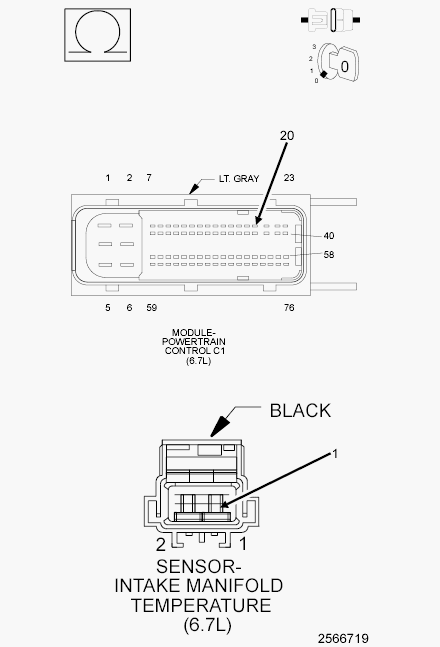

Fig 3: Checking Intake Manifold Temperature Sensor Return Circuit For Open Or High Resistance
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K914) Intake Manifold Temperature Sensor Return circuit between the Intake Manifold Temperature Sensor harness connector and the PCM C1 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Powertrain Control Module in accordance with the service information.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Repair the (K914) Intake Manifold Temperature Sensor Return circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
