Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
NOTE:
If there are any 5-Volt supply DTCs present, repair those DTCs before proceeding.
1. Turn the ignition on.
2. With the scan tool, record all Freeze frame data.
3. With the scan tool, erase DTCs.
4. Turn the ignition off for 75 seconds.
5. Turn the ignition on.
6. With the scan tool, read DTCs.
  Did the DTC reset?

  Yes
  - Go To 2.
  No
  - Perform the INTERMITTENT CONDITION - 6.7L diagnostic procedure. Refer to INTERMITTENT CONDITION - 6.7L .
CHECK THE (K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

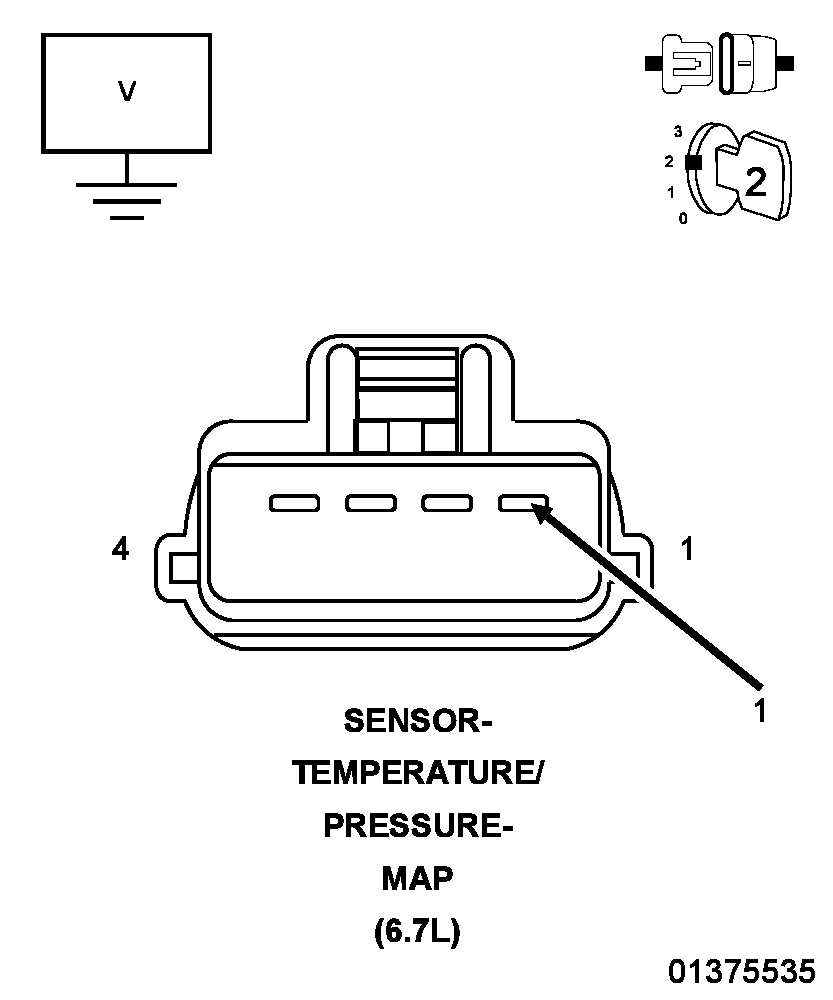

Fig 1: Inlet Air Temperature/Pressure Sensor & CAC/Boost Pressure Sensor Connector Pin ID
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Boost Pressure Sensor harness connector.
3. Turn the ignition on.
4. With a voltmeter, measure the voltage of the (K37) Boost Pressure Sensor Signal circuit at the Boost Pressure Sensor harness connector.
  Is the voltage reading near battery voltage?

  Yes
  - Repair the (K37) Boost Pressure Sensor Signal circuit for a short to voltage.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Go To 3.
CHECK FOR THE (K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO THE (F857) 5-VOLT SUPPLY CIRCUIT

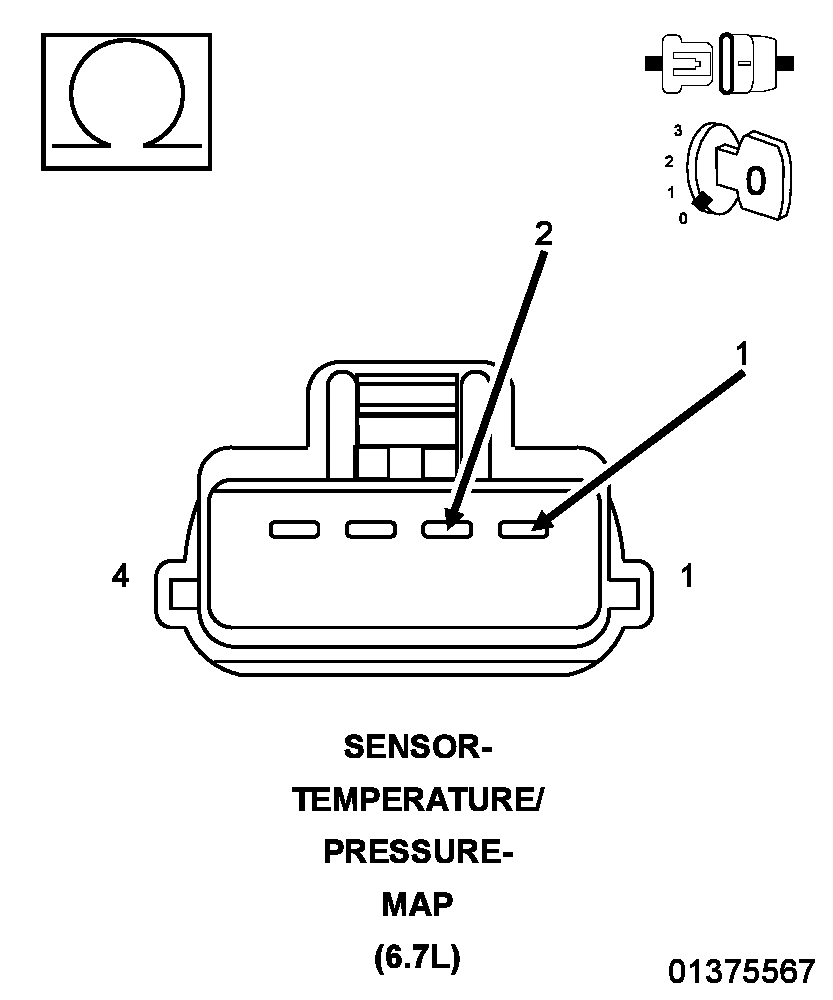

Fig 2: Inlet Air Temperature/Pressure Sensor & CAC/Boost Pressure Sensor Connector Pin ID
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the PCM C1 harness connector.
3. Measure the resistance between the (K37) Boost Pressure Sensor Signal circuit and (F857) 5-Volt Supply circuit at the Boost Pressure Sensor harness connector.
  Is the resistance below 10k Ohms?

  Yes
  - Repair the short between the (K37) Boost Pressure Sensor Signal circuit and (F857) 5-Volt Supply circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Go To 4.
CHECK THE (K916) BOOST PRESSURE SENSOR RETURN CIRCUIT FOR AN OPEN/HIGH RESISTANCE

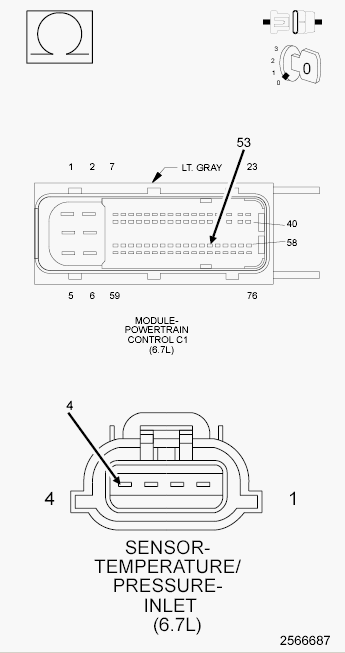

Fig 3: Checking CAC Temperature Sensor Ground Circuit For An Open Or High Resistance
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K916) Boost Pressure Sensor Return circuit between the Boost Pressure Sensor and the PCM C1 harness connectors.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 4.
  No
  - Repair the (K916) Boost Pressure Sensor Return circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
CHECK THE BOOST PRESSURE SENSOR
1. Reconnect the Boost Pressure Sensor harness connector.
2. Reconnect the PCM C1 harness connector.
3. Turn the ignition on.
4. With the scan tool, erase DTCs.
5. Turn the ignition off and disconnect the Boost Pressure Sensor harness connector.
6. Turn the ignition on.
7. With the scan tool, read DTCs.
  Did the DTC P0107 set?

  Yes
  - Replace the Boost Pressure Sensor in accordance with the service information.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Replace the Powertrain Control Module in accordance with the service information.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
