Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
NOTE:
If there are any 5-Volt supply DTCs present, repair those DTCs before proceeding.
1. Turn the ignition on.
2. With the scan tool, record all Freeze frame data.
3. With the scan tool, erase DTCs.
4. Turn the ignition off for 75 seconds.
5. Turn the ignition on.
6. With the scan tool, read DTCs.
  Did the DTC reset?

  Yes
  - Go To 2.
  No
  - Perform the INTERMITTENT CONDITION - 6.7L diagnostic procedure. Refer to INTERMITTENT CONDITION - 6.7L .
CHECK THE (F857) 5-VOLT SUPPLY CIRCUIT FOR AN OPEN/HIGH RESISTANCE

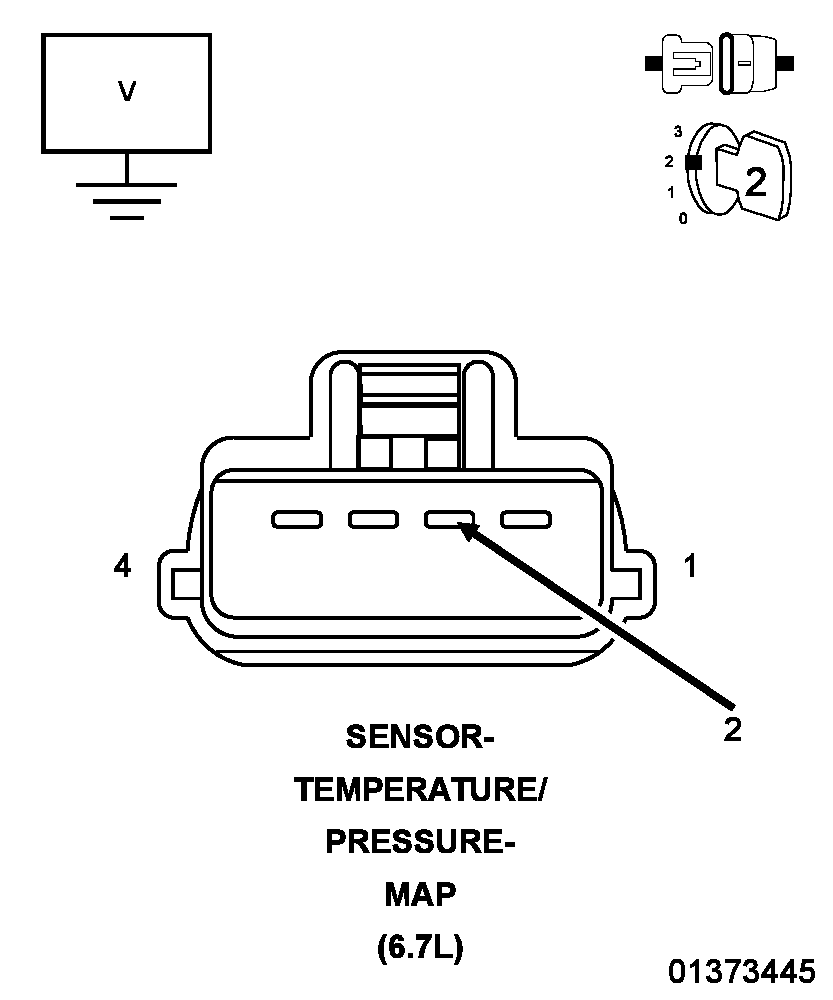

Fig 1: Inlet Air Temperature/Pressure Sensor & CAC/Boost Pressure Sensor Connector Pin ID
Courtesy of CHRYSLER LLC
1. Ignition on.
2. Disconnect the Boost Pressure Sensor harness connector.
3. With a voltmeter, measure the voltage of the (F857) 5-Volt Supply circuit at the Boost Pressure Sensor harness connector.
  Is the voltage reading between 4.9 and 5.1 volts?

  Yes
  - Go To 3.
  No
  - Repair the (F857) 5-Volt Supply circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
CHECK THE BOOST PRESSURE SENSOR

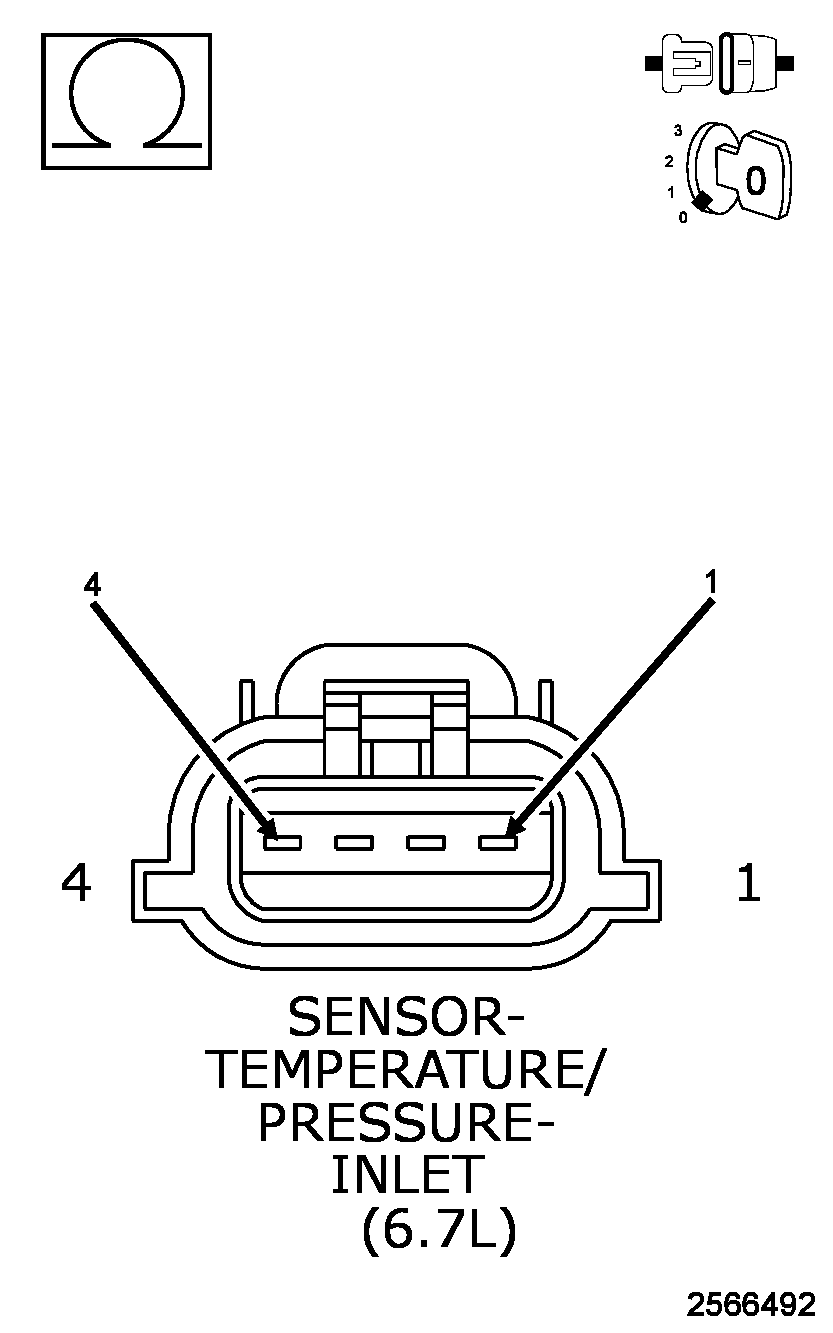

Fig 2: MAP Pressure Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. While monitoring the scan tool, connect a jumper between the (F855) 5-Volt Supply circuit and the (K37) Boost Pressure Sensor Signal circuit at the Boost Pressure Sensor harness connector.
  Did the P0108 DTC set?

  Yes
  - Replace the Boost Pressure Sensor in accordance with the service information.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Go To 4.
CHECK FOR THE (K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO THE (K916) BOOST PRESSURE SENSOR RETURN CIRCUIT

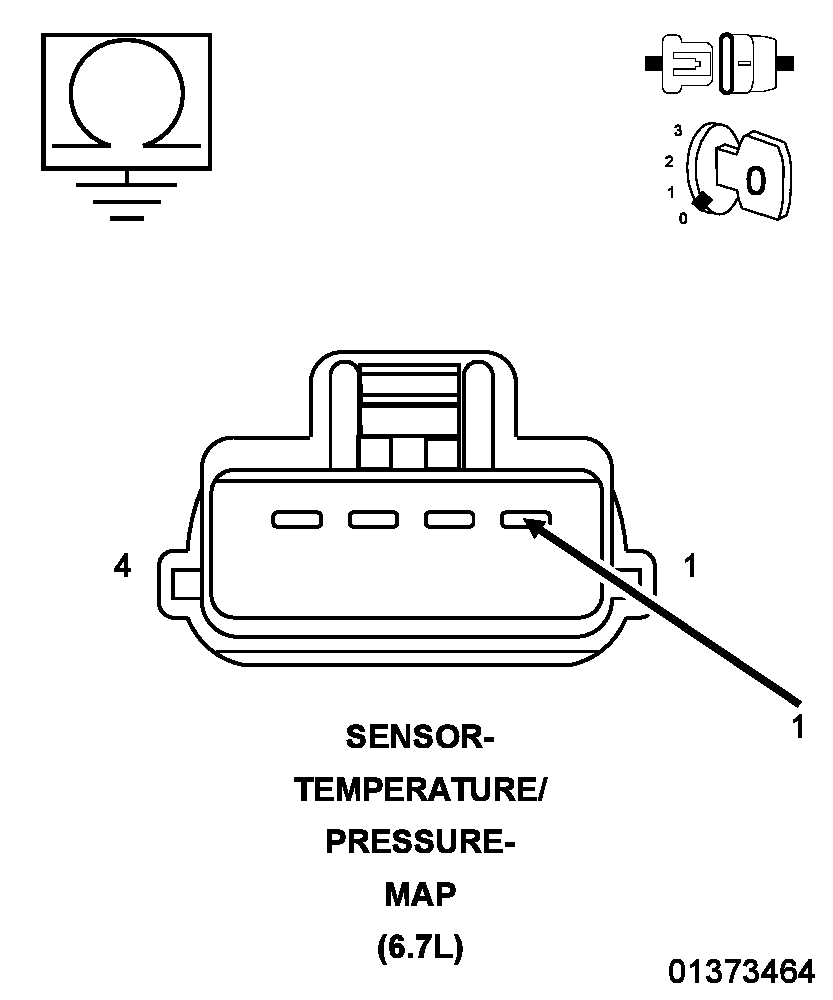

Fig 3: Checking For Boost Pressure Sensor Signal Circuit Shorted To Boost Pressure Sensor Return Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the PCM C1 harness connector.
3. Measure the resistance between the (K37) Boost Pressure Sensor Signal circuit and (K916) Boost Pressure Sensor Return circuit at the Boost Pressure Sensor harness connector.
  Is the resistance below 10k Ohms?

  Yes
  - Repair the short between the (K37) Boost Pressure Sensor Signal circuit and (K916) Boost Pressure Sensor Return circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Go To 5.
CHECK THE (K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND

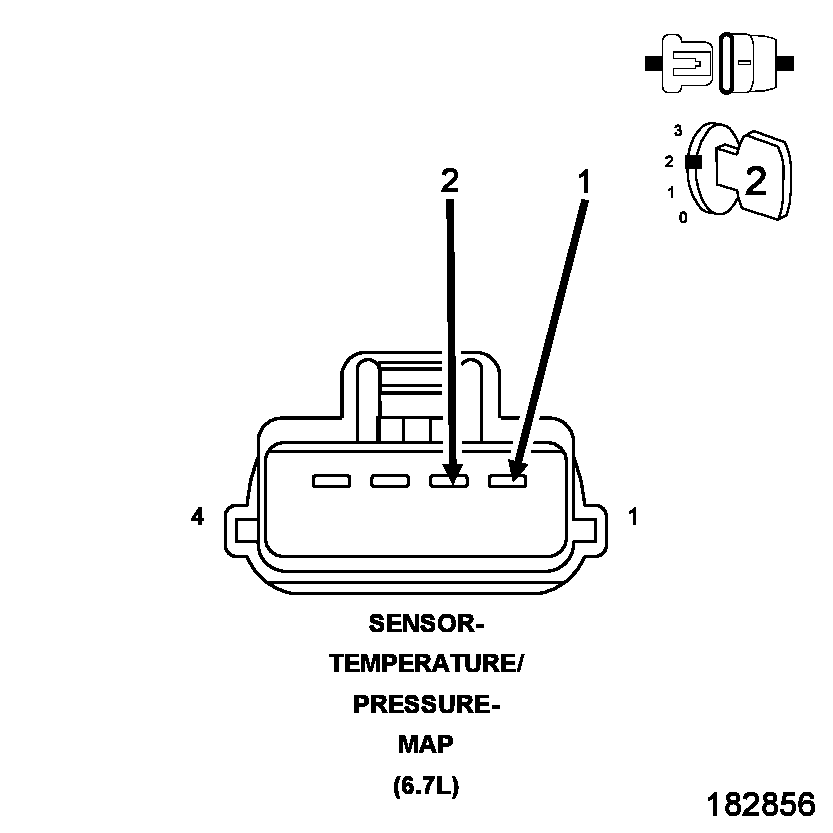

Fig 4: Inlet Air Temperature/Pressure Sensor & CAC/Boost Pressure Sensor Connector Pin ID
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (K37) Boost Pressure Sensor Signal circuit.
  Is the resistance below 10k Ohms?

  Yes
  - Repair the (K37) Boost Pressure Sensor Signal circuit for a short to ground.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Go To 6.
CHECK THE (K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT FOR AN OPEN/HIGH RESISTANCE

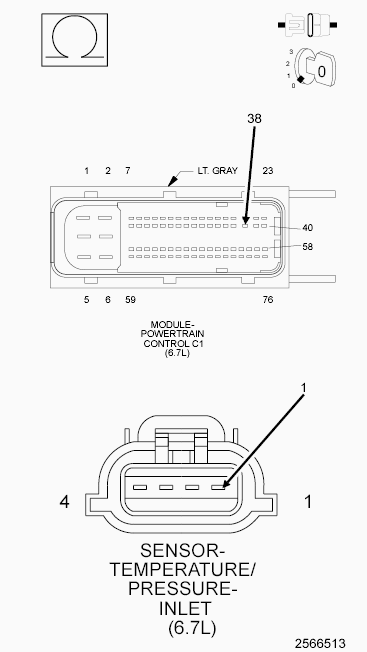

Fig 5: Checking Boost Pressure Sensor Signal Circuit For An Open Or High Resistance
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K37) Boost Pressure Sensor Signal circuit between the Boost Pressure Sensor and the PCM C1 harness connectors.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Powertrain Control Module in accordance with the service information.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Repair the (K37) Boost Pressure Sensor Signal circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
