Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. OTHER DTCS
    1. Ignition on, engine not running.
    2. With the scan tool, read DTCs.

      Are there any 5-Volt supply DTCs ?

      Yes

      • Repair other DTCs first.

      No

      • Go To  2.
  2. P051C ACTIVE

    Is DTC P051C active?

    Yes

    • Go To  3.

    No

  3. CHECK THE (F857) 5-VOLT SUPPLY CIRCUIT
    1. Turn the ignition off.
    2. Disconnect the Crankcase Pressure Sensor harness connector.
      NOTE:

      Check connectors - Clean/repair as necessary.

    3. Turn the ignition on.
    4. Measure the voltage across the (F857) 5-Volt supply circuit and the (K916) Sensor Return circuit at the Crankcase Pressure Sensor harness connector.

      Is the voltage between 4.5 and 5.5 Volts?

      Yes

      • Go To  4.

      No

      • Go To  6.
  4. CHECK THE CRANKCASE PRESSURE SENSOR
    Fig 1: Crankcase Pressure Sensor Harness Connector
    GC0137336Courtesy of CHRYSLER LLC
    1. While monitoring scan tool, use a jumper wire to connect the (F857) 5-Volt supply circuit with the (K926) Crankcase Pressure Signal circuit at the Crankcase Pressure Sensor harness connector.

      Does the scan tool show a P051D DTC?

      Yes

      • Replace the Crankcase Pressure Sensor in accordance with the service information.
      • Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .

      No

      • Go To  5.
  5. CHECK FOR THE (K926) CRANKCASE PRESSURE SIGNAL CIRCUIT SHORTED TO THE (K916) SENSOR RETURN CIRCUIT
    Fig 2: Checking For Crankcase Pressure Signal Circuit Shorted To Sensor Return Circuit
    GC0137337Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Remove the jumper wire.
    3. Disconnect the PCM C1 harness connector.
      NOTE:

      Check connectors - Clean/repair as necessary.

    4. Turn the ignition on.
    5. Measure the resistance between the (K926) Crankcase Pressure Signal circuit and (K916) Sensor Return circuit in the Crankcase Pressure Sensor harness connector.

      Is the resistance above 10k Ohms?

      Yes

      • Go To  6.

      No

      • Repair the short between the (K926) Crankcase Pressure Signal circuit and (K916) Sensor Return circuit.
      • Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  6. CHECK FOR THE (F857) 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K916) SENSOR RETURN CIRCUIT

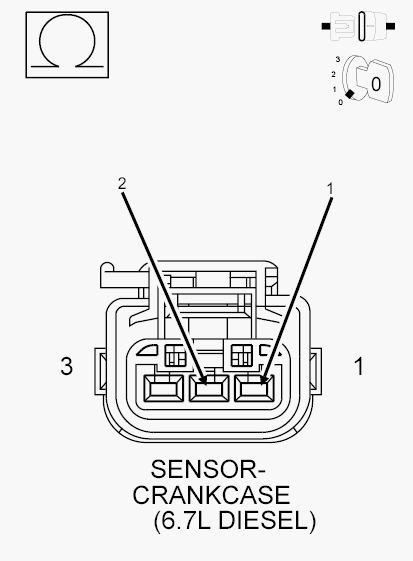

    Fig 3: Checking For 5-Volt Supply Circuit Shorted To Sensor Return Circuit
    GC0137338Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Measure the resistance between the (F857) 5-Volt Supply circuit and (K916) Sensor Return circuit at the Crankcase Pressure Sensor harness connector.

      Is the resistance above 10k Ohms?

      Yes

      • Go To  7.

      No

      • Repair the short between the (F857) 5-Volt Supply circuit and (K916) Sensor Return circuit.
      • Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  7. CHECK THE (K926) CRANKCASE PRESSURE SIGNAL CIRCUIT FOR AN OPEN/HIGH RESISTANCE
    Fig 4: Checking Crankcase Pressure Signal Circuit For An Open Or High Resistance
    GC0137339Courtesy of CHRYSLER LLC
    1. Measure the resistance of the (K926) Crankcase Pressure Signal circuit between the Crankcase Pressure Sensor harness connector and the PCM C1 harness connector.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  8.

      No

      • Repair the (K926) Crankcase Pressure Signal circuit for an open or high resistance.
      • Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  8. CHECK THE (F857) 5-VOLT SUPPLY CIRCUIT FOR AN OPEN/HIGH RESISTANCE
    1. Measure the resistance of the (F857) 5-Volt Supply circuit between the Crankcase Pressure Sensor harness connector and the PCM C1 harness connector.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  9.

      No

  9. CHECK THE (K926) CRANKCASE PRESSURE SIGNAL CIRCUIT FOR A SHORT TO GROUND
    Fig 5: Checking Crankcase Pressure Signal Circuit For Short To Ground
    GC0137340Courtesy of CHRYSLER LLC
    1. Measure the resistance between ground and the (K926) Crankcase Pressure Signal circuit at the Crankcase Pressure Sensor harness connector.

      Is the resistance above 10k Ohms?

      Yes

      • Go To  10.

      No

  10. POWERTRAIN CONTROL MODULE
    1. While monitoring scan tool, use a jumper wire to connect the (F857) 5-Volt supply circuit with the (K926) Crankcase Pressure Signal circuit at the Crankcase Pressure Sensor harness connector.

      Does the scan tool show a P051D DTC?

      Yes

      No

      • Replace the Powertrain Control Module in accordance with the service information.
      • Perform the POWERTRAIN VERIFICATION TEST- 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
