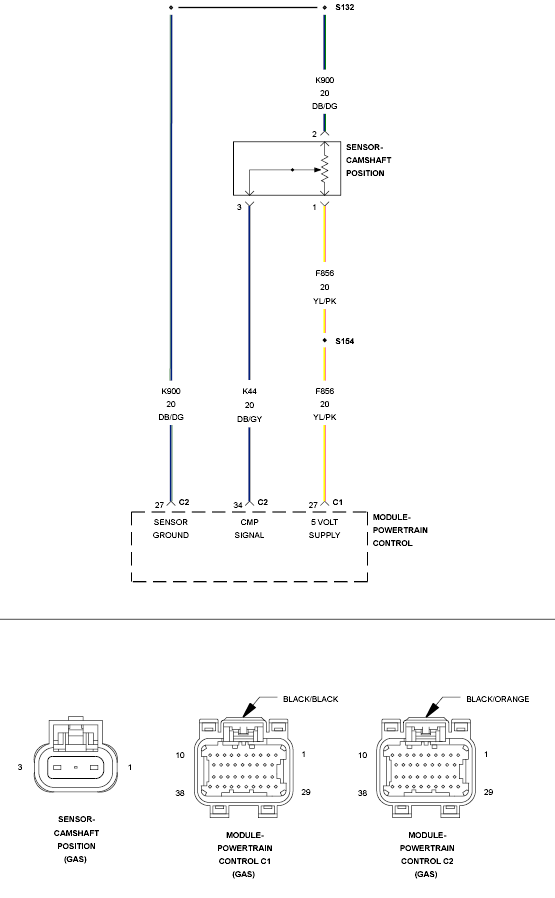

Fig 1: Camshaft Position Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article
.
