Alternative Procedure

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Battery
GC0087848Courtesy of CHRYSLER LLC
NOTE:

If the electric fuel pump is not operating, the fuel tank must be removed and drained through the fuel pump module opening of the fuel tank.

  1. Perform the Fuel System Pressure Release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
  2. Disconnect and isolate the negative battery cable (1).
  3. Raise and support the vehicle.
  4. Remove the fuel tank. Refer to TANK, Fuel , Removal  for diesel, or TANK, Fuel , Removal  for gas.

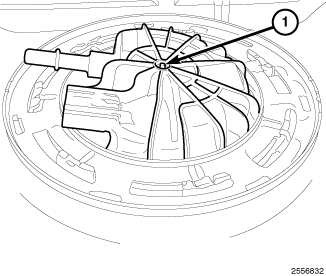

    Fig 2: Fuel Pump Module
    GC0088247Courtesy of CHRYSLER LLC
  5. Remove the fuel pump module (1). Refer to MODULE, Fuel Pump , Removal  for diesel, or MODULE, Fuel Pump , Removal  for gas.
  6. Position a 3/8" hose into the fuel pump module opening of the fuel tank.
  7. Attach the opposite end of this hose to the Fuel Chief Gas Caddy 320-FC-P30-A or an OSHA approved gas caddy.
  8. Using the gas caddy, evacuate the fuel tank.
