Fuel System Pressure Release

Use this procedure whether or not the fuel rail is equipped with a fuel pressure test port.

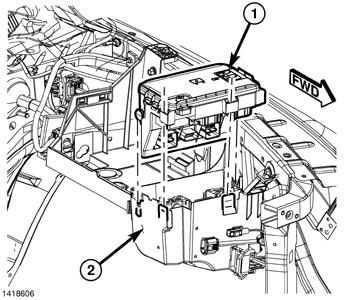

Fig 1: Totally Integrated Power Module (TIPM)

Courtesy of CHRYSLER LLC

A separate fuel pump relay is no longer used. A circuit within the Totally Integrated Power Module (TIPM) is used to control the electric fuel pump located within the fuel pump module. The TIPM (2) is located in the engine compartment in front of the battery.

1. Remove the fuel fill cap.
2. Remove the TIPM cover (1) from the TIPM housing base (2).

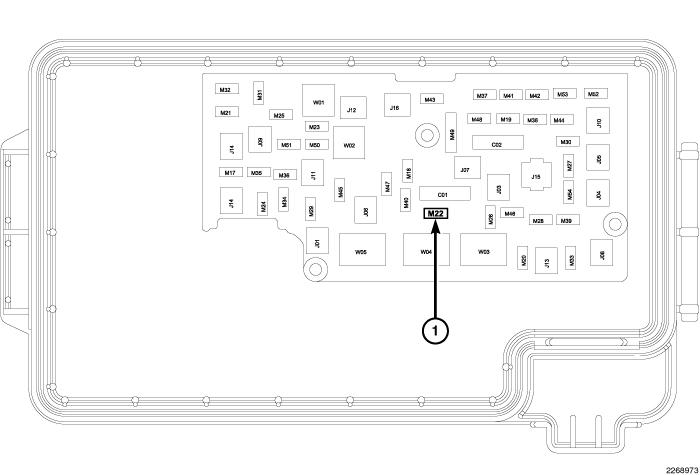

   Fig 2: Locating Fuse M22 In TIPM

   Courtesy of CHRYSLER LLC
3. Remove fuse M22 from the TIPM (1).
4. Start and run the engine until it stalls.
5. Attempt restarting the engine until it will no longer start.
6. Turn the ignition key to the OFF position.
   Fig 3: Fuel Supply Line Quick Connect Fitting AT Fuel Rail

   Courtesy of CHRYSLER LLC
   CAUTION:

   Before separating a Quick-Connect fitting, pay attention to what type of fitting is being used. Refer to STANDARD PROCEDURE - QUICK-CONNECT FITTINGS . This will prevent unnecessary fitting or fitting latch breakage.

   NOTE:

   Excessive fuel spillage onto the gaskets can cause gaskets to expand and dislodge from gasket groove.

7. Place a rag or towel below the fuel line quick-connect fitting at the fuel rail.
8. Disconnect the fuel line quick-connect fitting at the fuel rail (1) and plug with a shipping cap to prevent spillage. Refer to STANDARD PROCEDURE - QUICK-CONNECT FITTINGS .
