Rear Door Speaker

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the rear door trim panel. Refer to PANEL, REAR DOOR TRIM, REMOVAL .

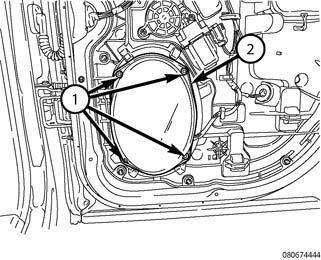

    GC0154418Courtesy of CHRYSLER GROUP, LLC
  3. Remove the speaker (2) mounting fasteners (1).

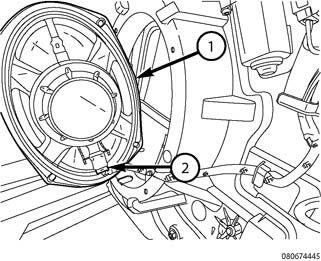

    GC0154530Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the electrical connector (2) and remove the speaker (1).
