Panel, Rear Door Trim: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Using trim stick (special tool #C-4755, Trim Stick) or equivalent, release the door switch/bezel (1) from the door trim and disconnect the electrical connectors (2).

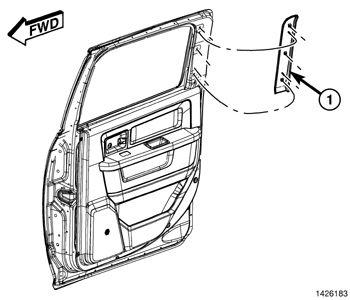

- Using trim stick (special tool #C-4755, Trim Stick) or equivalent, release the upper trim bezel (1).
- If equipped, remove the manual window crank (1) using a window crank removal tool (2).
- Remove the screw (3) and remove the interior handle bezel (5).
- Release the plastic screw/rivets (4).
- Raise the trim panel (2) up and off the hooks and door lock knob (1).
