Module, Keyless Ignition Node (Kin): Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the lower steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

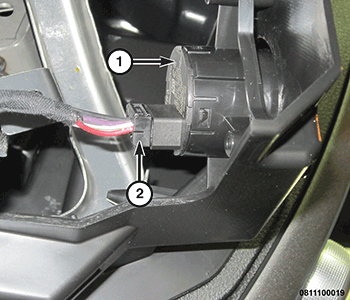

    GC0173491Courtesy of CHRYSLER GROUP, LLC
  3. Reach behind the KIN (1) and disconnect the electrical wiring harness connector (2).

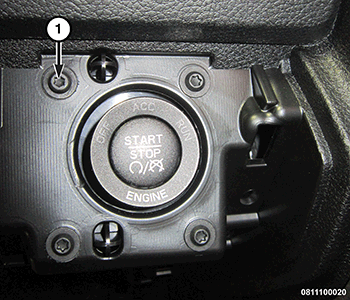

    GC0173494Courtesy of CHRYSLER GROUP, LLC
  4. Remove four (1) retaining screws.
  5. Remove the KIN from the vehicle.
