Cover, Steering Column Opening: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retainer clip that secures the hood release to the steering column opening cover, and remove the hood release handle from the cover.
- Remove the two fasteners (2) that secure the bottom of the steering column opening cover (1) to the instrument panel.

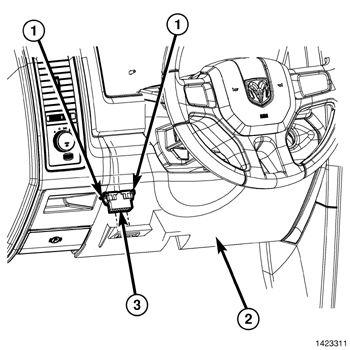

- Remove the Data Link Connector (3) from the steering column opening cover (2) by pressing in the tabs (1) and pushing the connector through the opening on the back side of the cover.

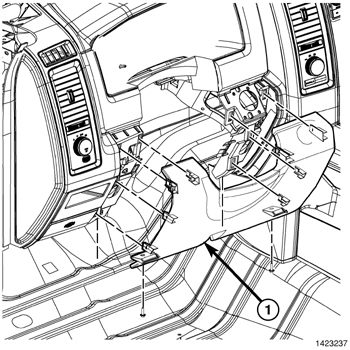

- Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the retainer clips that secure the steering column opening cover (1) to the instrument panel and remove the cover.
- Disconnect necessary wire harness connectors.
