Sensor, Evaporator Temperature: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

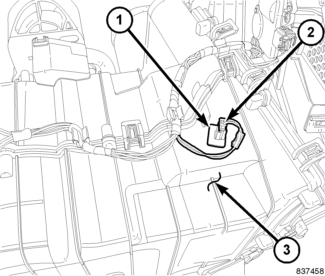

GC0089525Courtesy of CHRYSLER GROUP, LLC
NOTE:

Illustration shown with instrument panel removed for clarity.

  1. Disconnect and isolate the negative battery cable.
  2. Remove the glove box from the instrument panel. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .
  3. Remove the storage bin from the instrument panel. Refer to BIN, INSTRUMENT PANEL, REMOVAL .
  4. Disconnect the HVAC wire harness (2) from the evaporator temperature sensor (1) located on top of the HVAC housing (3).
  5. Pull the evaporator temperature sensor upward and forward and remove the sensor from the HVAC housing.
