Tank, Fuel: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The fuel system may be under a constant pressure (even with the engine off). Before servicing the fuel pump module, the fuel system pressure must be released.
- Perform the fuel system pressure release procedure. Refer to STANDARD PROCEDURE .
- Disconnect and isolate the negative battery cable.
- Raise and support vehicle.
- Perform the fuel tank draining procedure. Refer to STANDARD PROCEDURE
.
- Remove fuel tank skid plate (1).
- Remove the skid plate crossmember (1).
- Using a suitable hydraulic jack with a fuel tank adapter, support the fuel tank.

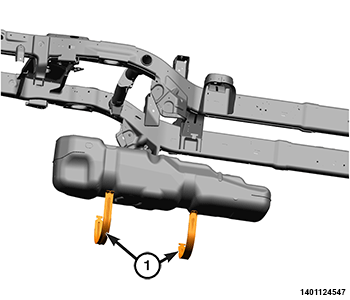

- Remove the two fuel tank support strap retaining nuts and remove both fuel tank support straps (1).
- Carefully lower the fuel tank a few inches and disconnect the fuel pump module electrical connector.
- Disconnect the fuel line quick-connect fittings at the top of the tank (1).
- Loosen the fill hose retaining clamp (2) and disconnect the fill hose from the tank.
- Lower the fuel tank and remove from hydraulic jack.
- If fuel pump module removal is necessary. Refer to REMOVAL .
