Tank, Fuel: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate both of the negative battery cables.
- Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Drain the fuel tank. Refer to STANDARD PROCEDURE .

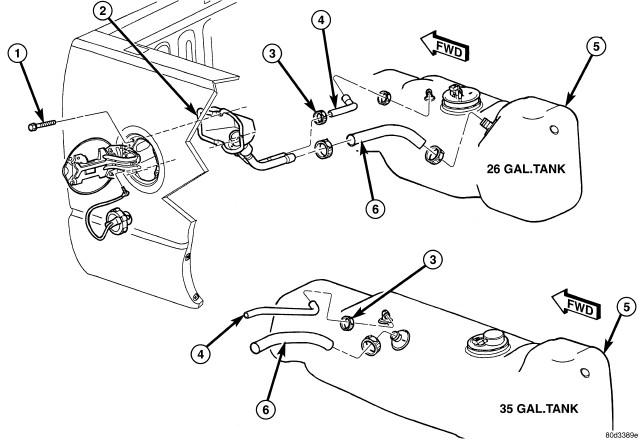

- Loosen the hose clamps (3).
- Remove the hoses (4) and (6) from tank.

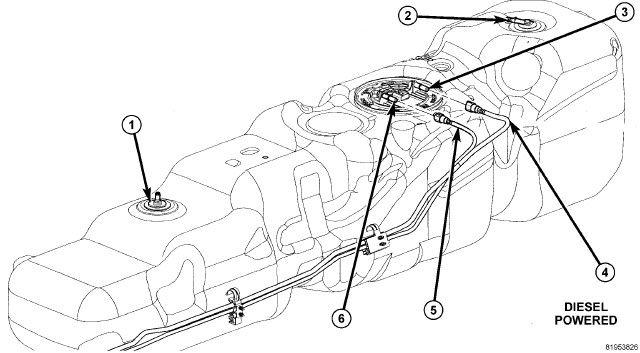

- Disconnect the fuel vapor hose (2) to tank fitting (1).

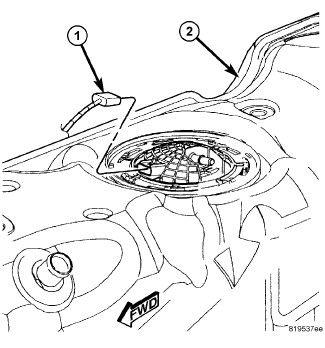

- Disconnect the fuel pump module wire harness connector (1).
- Disconnect the fuel return and supply line quick-connect fittings (4) and (5). Refer to STANDARD PROCEDURE .
- Position a transmission jack under fuel tank.

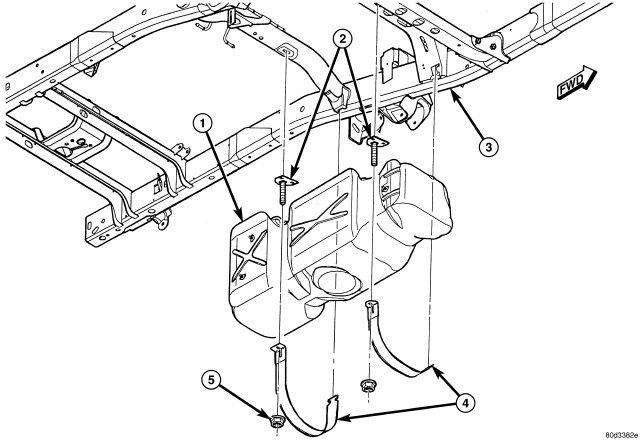

- Remove the nuts (5) and both fuel tank straps (4).
- Lower the transmission jack and remove fuel tank.
- If necessary, remove the fuel pump module. Refer to MODULE, FUEL PUMP, REMOVAL .
