Module, Fuel Pump: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the fuel tank. Refer to STANDARD PROCEDURE .
- Remove the fuel tank. Refer to TANK, FUEL, REMOVAL .
- Note the rotational position of module before attempting removal. An indexing arrow is located on top of module for this purpose.

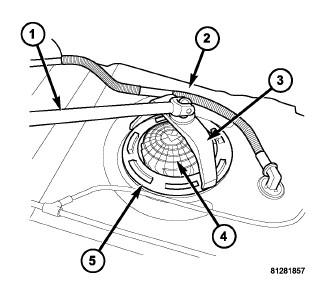

- Position the (special tool #9340, SAE Fuel Pump Lock Ring Wrench) (3) into notches on outside edge of lock ring (5).
- Install a 1/2 inch drive breaker bar (1) to (special tool #9340, SAE Fuel Pump Lock Ring Wrench) (3).
- Rotate the breaker bar counterclockwise to remove lock ring.
- Remove the lock ring. The module will spring up slightly when lock ring is removed.
- Remove the module from fuel tank. Be careful not to bend float arm while removing.
