Manifold, Intake: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate both negative battery cables.
  2. Remove the EGR crossover tube. Refer to TUBE, EXHAUST GAS RECIRCULATION (EGR), CROSSOVER, REMOVAL .
    GC0169643Courtesy of CHRYSLER GROUP, LLC

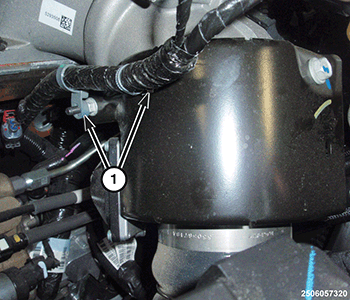

  3. Detach the wire harness retainers (1) from the stud.
    GC0169678Courtesy of CHRYSLER GROUP, LLC
  4. Remove the nut (1), bolt (3) and the EGR Airflow control valve shield (2).
    GC0155380Courtesy of CHRYSLER GROUP, LLC
  5. Loosen the clamps (1) and remove the Charge Air Cooler (CAC) hose (3) from the EGR air flow control valve.
  6. Disconnect EGR air flow control valve wire harness connector (2).
    GC0157553Courtesy of CHRYSLER GROUP, LLC

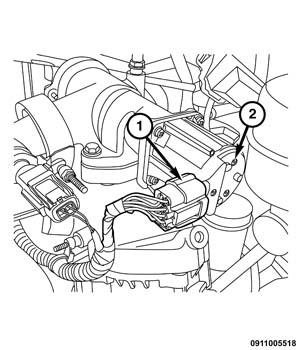

  7. Disconnect the EGR valve wire harness connector (1).
    GC0108834Courtesy of CHRYSLER GROUP, LLC
  8. Remove the bolt and nut securing oil dipstick tube.
  9. Remove the bolts (1) and the intake manifold (2).
