Switch, Oil Pressure: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the O-ring seal with clean engine oil.

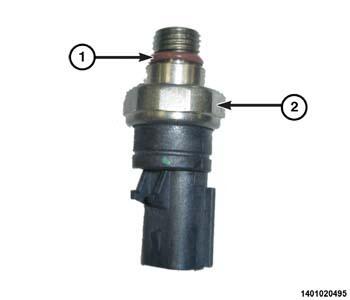

- Install the oil pressure switch (2) into the engine oil cooler housing. Tighten the switch (2) to 18 N.m (13 ft. lbs.).
- Connect the oil pressure switch wire harness connector (1).
- Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION, 6.7L .
- Connect both of the negative battery cables.
- Start engine and check for oil leaks at the switch.
