Arm, Control With ARTICULINK: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Paint or scribe alignment marks on the cam adjusters and control arm for installation reference.
    NOTE:

    DISCARD  the nuts and bolts and do not reuse. NEW  nuts and bolts should be used when replacing or servicing the control arms.

  3. Support the front axle by placing a jack stand under the side of the axle that is being worked on.
  4. Remove the articulink. Refer to ARTICULINK, REMOVAL .

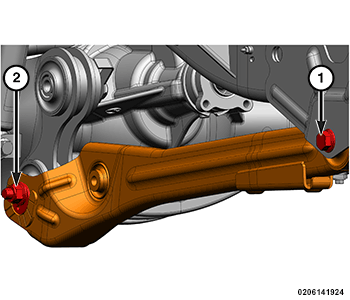

    GC0180006Courtesy of CHRYSLER GROUP, LLC
  5. Remove the control arm to axle nut (2), cam, and cam bolt.
  6. Remove the control arm to frame bolt (1) and the control arm to frame nut.
