Front, Link And Coil: ARTICULINK: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Support the front axle by placing a jack stand under the side of the axle that is being worked on.

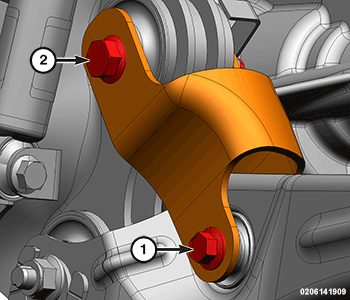

    GC0180004Courtesy of CHRYSLER GROUP, LLC
  3. Remove and DISCARD  the articulink to axle bolt (2) and nut.
  4. Remove and DISCARD  the articulink to control arm bolt (1) and nut.
  5. Remove the articulink.
