Motor, Winch: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0109966Courtesy of CHRYSLER GROUP, LLC
  1. Remove the winch assembly (2). Refer to WINCH, REMOVAL .
    GC0109980Courtesy of CHRYSLER GROUP, LLC
  2. Separate one of the roller shaft clips (1), remove the shaft (3) and the roller (4).
    GC0109978Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (3) and separate the support bracket (1) from the winch assembly (2).
    GC0109982Courtesy of CHRYSLER GROUP, LLC
  4. Remove the control unit (1). Refer to CONTROL UNIT, WINCH, REMOVAL .

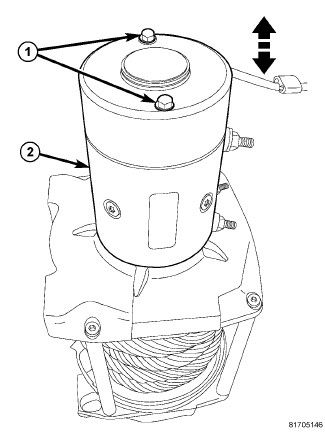

    GC0109983Courtesy of CHRYSLER GROUP, LLC
  5. Stand winch assembly on the clutch end with the motor up to make it easier to align the motor coupler and drive shaft.
  6. Remove the two motor mounting bolts (1) and carefully lift the motor (2) off of the drum assembly.
