Sunshade, Sunroof: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Verify the sunshade track is free of obstructions like the trim lace/ring.

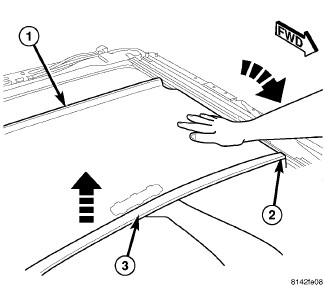

- Install the sunshade through the roof opening. Install one rear foot into the track.

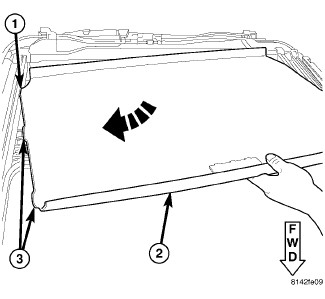

- Rotate the sunshade so the other rear foot is in the track as well as the 2 other feet (3) on the same side as the first foot.
- To insert the remaining two feet (2) apply force to the middle front of sunshade (3) and guide them into the track.
- Check that all the feet are in the right track and verify sunshade operation.
- Install the drain channel. Refer to CHANNEL, SUNROOF DRAIN, INSTALLATION .
