Seal, Sunroof Glass: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

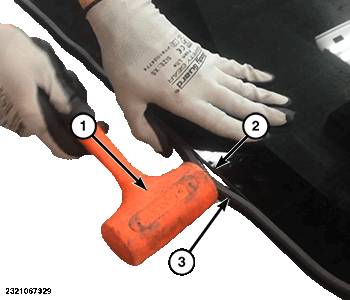

- Install the new glass seal (3) onto the glass (2) using a rubber or plastic mallet (1).

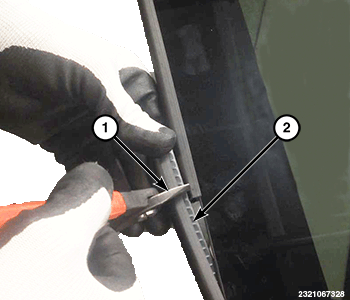

- Cut the new seal (2) to fit using some side cutters (1) or equivalent on a seal rib and leaving a 2mm - 4mm overlap.

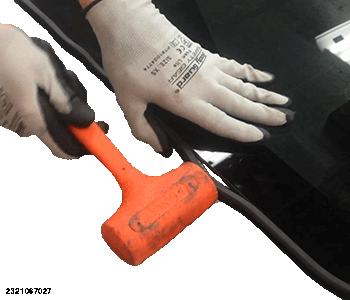

- Complete the installation using a plastic or rubber mallet.

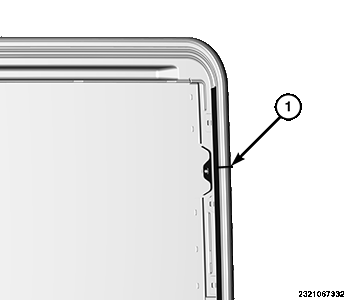

- Make sure there is no gap between the new seal ends (1).
- Install the sunroof glass, Refer to GLASS, SUNROOF, INSTALLATION .
