Mega Cab
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
It is difficult to salvage the backlite during the removal operation. The urethane bonding used to secure the glass to the fence is difficult to cut or clean from any surface. Since the molding is set in urethane, it is unlikely it would be salvaged. Before removing the backlite, check the availability from the parts supplier.
NOTE:
The backlite is attached to the window frame with urethane adhesive. The urethane adhesive is applied cold and seals the surface area between the window opening and the glass. The primer adheres the urethane adhesive to the backlite.
- Open the center glass approximately 5 cm (2 in.).
- Remove the upper C-pillar trim. Refer to PANEL, C-PILLAR TRIM, UPPER, REMOVAL .
- Tumble the rear seat assembly into the full down position.
- Lower the headliner and position aside. Refer to HEADLINER, REMOVAL .
- Separate the cables from the lower glass run channels and disconnect the cables from the glass. Refer to REGULATOR, BACKLITE GLASS, REMOVAL .

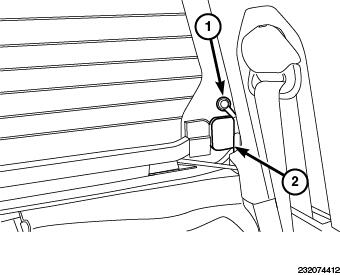

- Bend backlite retaining tabs (2) downward, perpendicular to the glass.

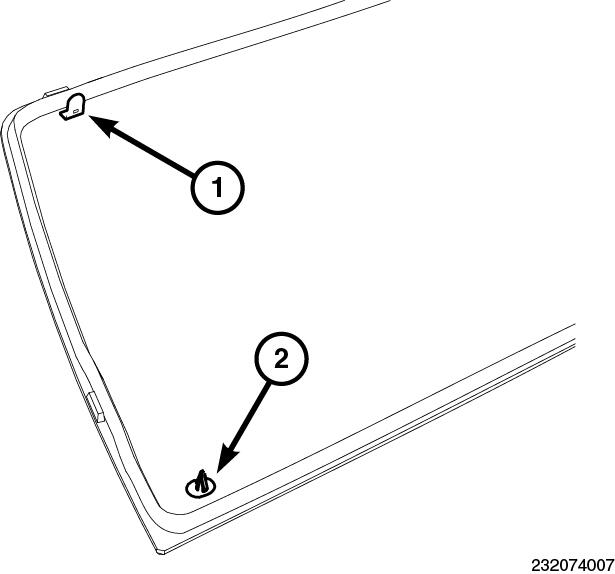

- Disconnect the electronic backlite grid connectors from both sides of the glass (2) if equipped.
- Disconnect the antenna connector (1).
- Using a suitable pneumatic knife or equivalent, from inside the vehicle, cut urethane holding backlite frame to opening fence.
- Separate glass (2) from vehicle.
