Handle, Interior: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

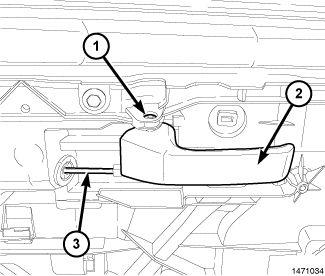

GC0088954Courtesy of CHRYSLER GROUP, LLC
NOTE:

Front door shown in the illustration, rear door similar.

  1. Remove the door trim panel. Refer to PANEL, REAR DOOR TRIM, REMOVAL .
  2. Remove the handle mounting screw (1).
  3. Disconnect the control rod (3) from the handle (2).
  4. Remove the handle from the door.
