Crew Cab

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

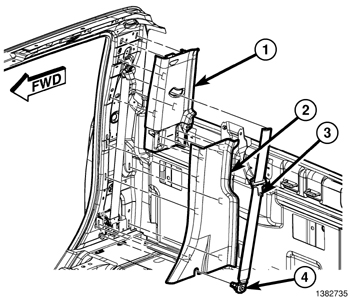

GC0089056Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear seat assembly. Refer to REMOVAL  .
  2. Remove the seat belt anchor (4).
  3. Separate the lower trim retaining clips from the pillar and the rear door scuff plate.
  4. Remove the trim (2).
