Quad/Crew/Mega Cab

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Hands should be clean or clean cloth gloves used when handling the headliner to avoid damage to the headliner.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the windshield. Refer to WINDSHIELD, REMOVAL .
  3. Remove the upper B-pillar trim. Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL .
  4. Remove the upper C-pillar trim, if equipped. Refer to PANEL, C-PILLAR TRIM, UPPER, REMOVAL .
    GC0089043Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the CHMSL wiring electrical connector.
    GC0089044Courtesy of CHRYSLER GROUP, LLC
  6. Remove the instrument panel side trim covers and disconnect the electrical connectors (1).
  7. Separate the support push pin fasteners (2).
    GC0089045Courtesy of CHRYSLER GROUP, LLC
  8. Disconnect the A-pillar wiring and clips (3).
  9. Disengage the sunroof trim ring if equipped.

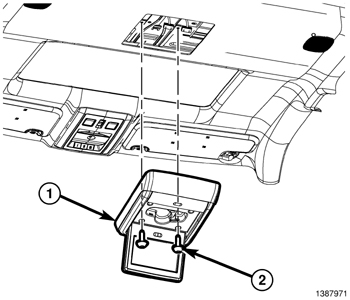

    GC0089046Courtesy of CHRYSLER GROUP, LLC
  10. Remove the DVD monitor screws (2) and separate the monitor (1) from the roof, if equipped.

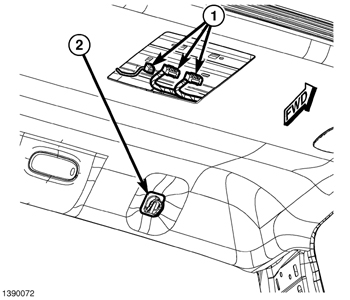

    GC0089047Courtesy of CHRYSLER GROUP, LLC
  11. Disconnect the DVD housing electrical connectors (1), if equipped.

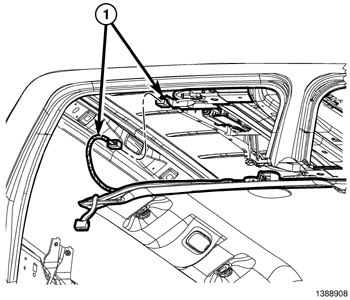

    GC0089048Courtesy of CHRYSLER GROUP, LLC
  12. Disconnect the sunroof module electrical connector (1) from the sunroof module takeout, if equipped.

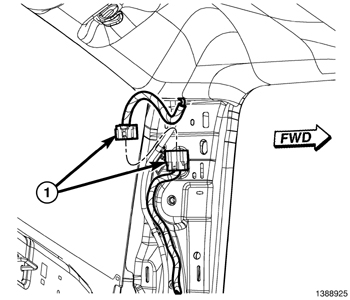

    GC0089049Courtesy of CHRYSLER GROUP, LLC
  13. Disconnect the electrical connector (1) from the body harness at the C-pillar left hand side.
  14. Remove the body harness clip from the C-pillar inner left hand side, if equipped.
  15. Disconnect the main harness from the body harness at the C-pillar inner right hand side.

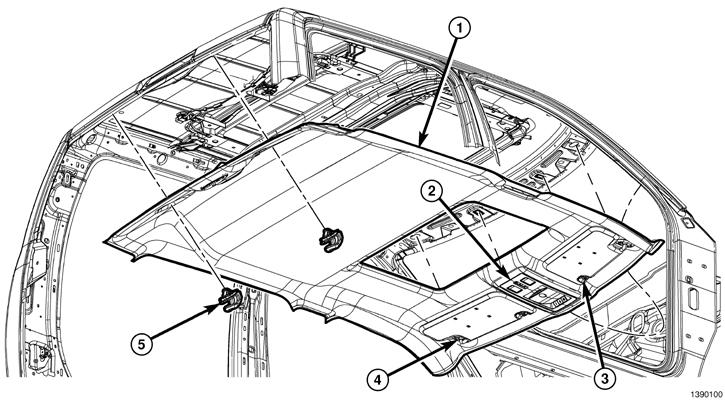

    GC0089050Courtesy of CHRYSLER GROUP, LLC
  16. Remove the headliner through the windshield opening.
  17. Remove the visor outboard retainer from the body.
  18. Remove the overhead console backing plate from the body taking care not to break the backing plate.
  19. Remove the visor center support mounting clips.
  20. Remove the coat hook mounting clips.
  21. Remove the DVD mounting clips.
